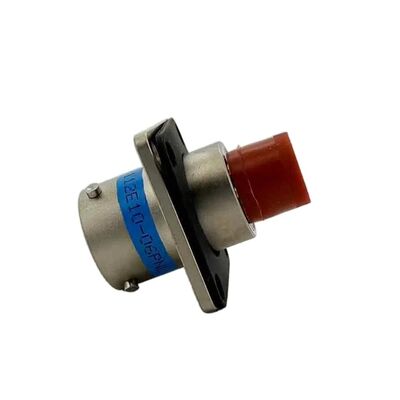

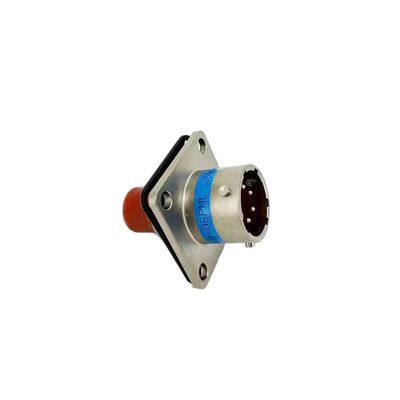

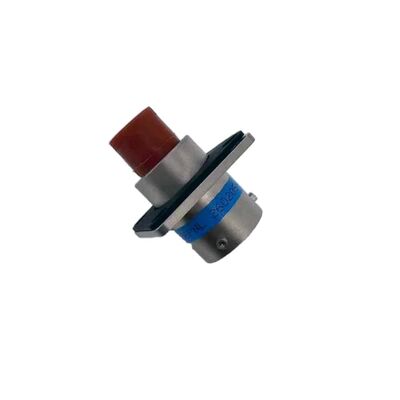

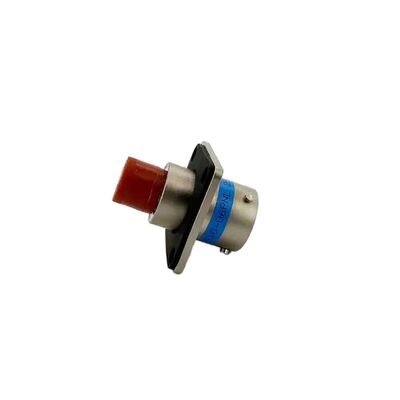

Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector

1
MOQ
5
Price
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: MS3112E10-06PNL
Application: UHF, FPC, Microwave, Automobile
Contact Material: Brass
Surface Treatment: Nickel Plating
Housing: Copper Alloy
Insulator: Thermosetting Plastic
Grommet And Interfacial Seal: Silicone Elastomer
Endurance: 500 Mating Cycles
Transport Package: PP+Carton
Trademark: KAIDA
Origin: China
HS Code: 8536901100
Production Capacity: 100000
Highlight:

MIL-C-26482 aerospace connector

,

thermosetting plastic insulator

,

Jy3112e10-6pnl sealed connector
Basic Infomation
Payment & Shipping Terms
Product Description
Product Description
MIL-DTL-26482 I Series connector
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 0
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 1
MIL-C-26482 series I circular connector is designed for quick bayonet coupling, solder contact, small size and medium contact density.

This family of circular connectors is offered 3 kinds of shell of different material, 9 kinds of size Shell, 4 kinds of finishes, 6 plug styles, 18 receptacle-mounting styles, 3 kinds of contact and more than 30 kinds of contact layout.
Widely used on commercial, and aerospace systems, etc.
Technical features:
Mechanical:
Shell:Aluminum,stainless steel
Finish:Without specification:Olive drab cadmium,conductive shell
L:Nickel,conductive shell
A: Black anodizing,non-conductive shell
B:Olive green cadmium, conductive shell
S:Stainless steel passivated,conductive shell
BW:Olive brown cadmium
Insulator:thermoplastic or thermosetting plastic
Grommet and interfacial seal:silicone elastomer
Contact: Gold over cooper alloy
Endurance:≥ 500 mating cycles
Shock:300g,3ms
Vibration:frequency:from 10 Hz to 2000 Hz
power spectral density:1g²/Hz
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 2
Electrical:
Voltage rating:V
Contact resistance and rated current


Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 3
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 4
Insulation resistance:25℃≥5000MΩ
125℃≥3MΩ
Environmental:
Temperature range:-55℃~+125 ℃
Relative humidity:At 40 ℃, up to 95±4%
Salt spray:Cadmium:500h Nickel:48h/96h
Seal:Grommet seal:differential pressure is 2105 Pa, the leakage rate : less than 4.6
102 Pa cm3 / s
Sintering seal: the pressure difference is 1105 Pa,
The leakage rate :less than 0.1Pa cm3 / s
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 5
Company Profile
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 6
We specialize in independent research and development, sales, and service, offering a wide range of innovative connectors for various industries. With a team of highly experienced and tech-savvy professionals, we have earned certifications as a high-techenterprise and ISO9001 quality management system.Our diverse product portfolio encompasses electrical connectors, optical components and devices, cable assemblies, and more. These cutting-edge solutions find extensive applications in high-end manufacturing sectors such as defense, aerospace, communications, rail transportation, medical equipment, oil equipment, and power systems. Our products meet stringent performance requirements like MIL-C-83513,MIL-C-26482, MIL-DTL-38999, Arinc600, and can serve as reliable alternatives to well-known international brands like Glenair, Amphenol, Airborn, ITT Cannon, and more.
We take pride in our products, which have earned a stellar reputation both domestically and internationally. With a global presence, KAIDA HOLDING exports its comprehensive range of products to over 30 countries and regions, including Europe, the United States, South Korea, and Japan. We have gained the trust and confidence of customers worldwide due to our unwavering commitment to quality and customer satisfaction.
Over the years, KAIDA HOLDING has developed an advanced scientific research and production system, along with a complete industrial chain, enabling us to provide customers with comprehensive solutions for transmission equipment, network devices, wireless access equipment, and connector applications. Additionally, we have established long-term collaborative relationships with over a dozen renowned universities and research institutes in China, ensuring a constant focus on developing new products. Currently, we hold more than 50 patents, demonstrating our dedication to innovation.
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 7
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 8
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 9
With over 25 years of experience in the field, our team of experts has the ability to supply electrical connectors in compliance with specifications, and is delighted to assist customers in developing the correct solution suited to their projects.
In addition, we also provide customer services that are intended to help our customer around the globe, to support the products including circular connectors, rectangular connectors, fiber optic connectors and connector contacts we offer.
We are dedicated to delivering unparalleled customer service through quick response to customer needs, uncompromising product quality, outstanding delivery dependability and ongoing project support.
Customization: If you do not see the electrical connectors that meet your specifications, you might want to take a look at our custom electrical connectors. Our experts are always eager to further push the limits of innovation, take advantage of their experience and expertise to design electrical connectors that are tailored to the unique requirements of each customer, and adapted to their specific operating environment.
Packaging & Shipping
Mil-C-26482 I Series Jy3112e10-6pnl Insulator with High-Quality Thermosetting Plastic and Seal Aerospace Connector 10
FAQ
Q1:What are your advantages?
A1:Complete product range, excellent quality, fast delivery, high cost performance, advanced production equipment and testing equipment, professional sales team. Professional teams do reliable things.

Q2:Can you provide OEM services?
A2:We can accept OEM orders. The materials, design, color and size will be produced according to your requirements. After the first sample is accepted or the process documents are signed and confirmed by both parties, the batch orders will be put into production.

Q3:Can you send me samples for reference?
A3:Of course, for regular products, we can send samples to you for free. You only need to pay the freight.

Q4: What's the delivery time?
A4:It depends on the quantity.It usually takes 7 days for small quantity.
