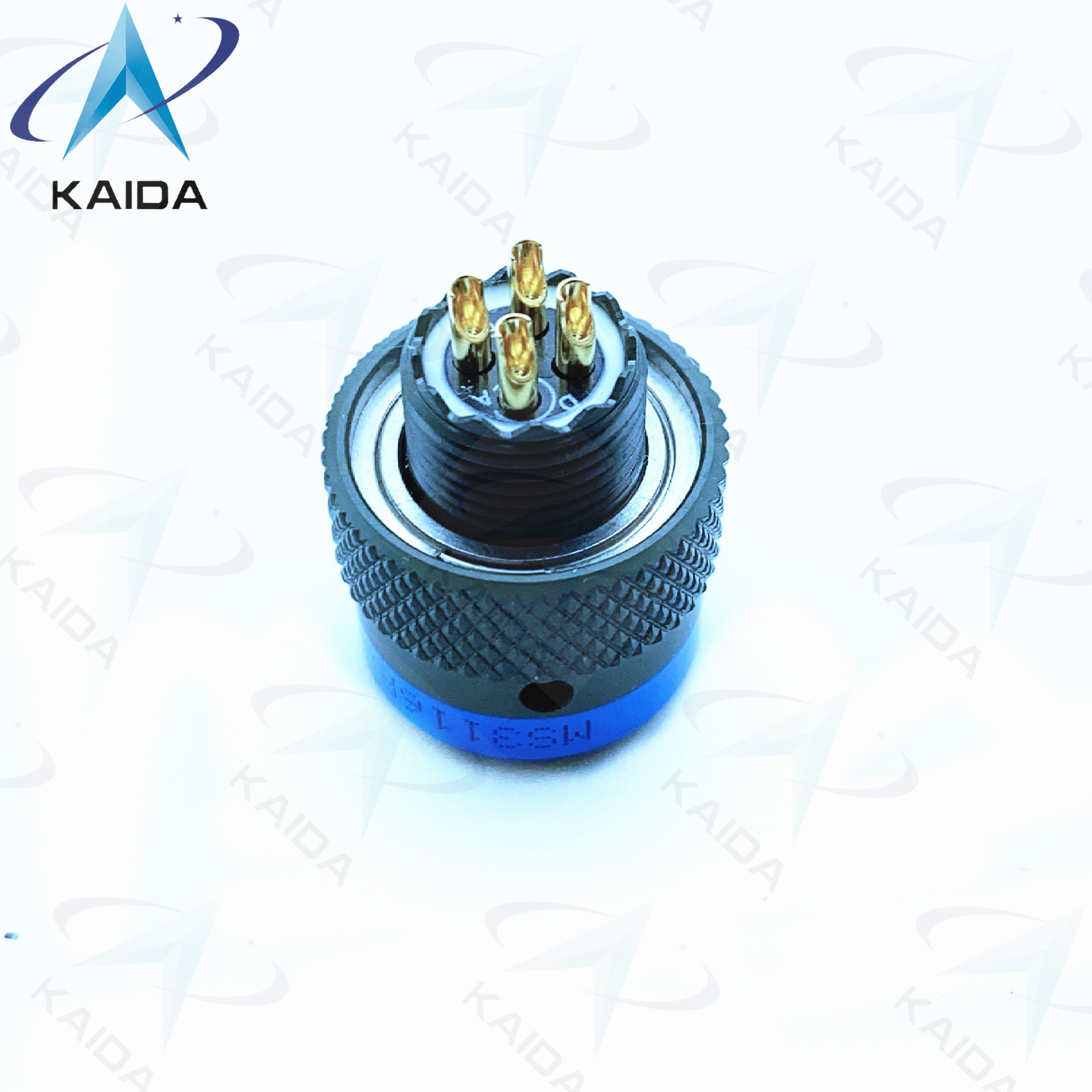

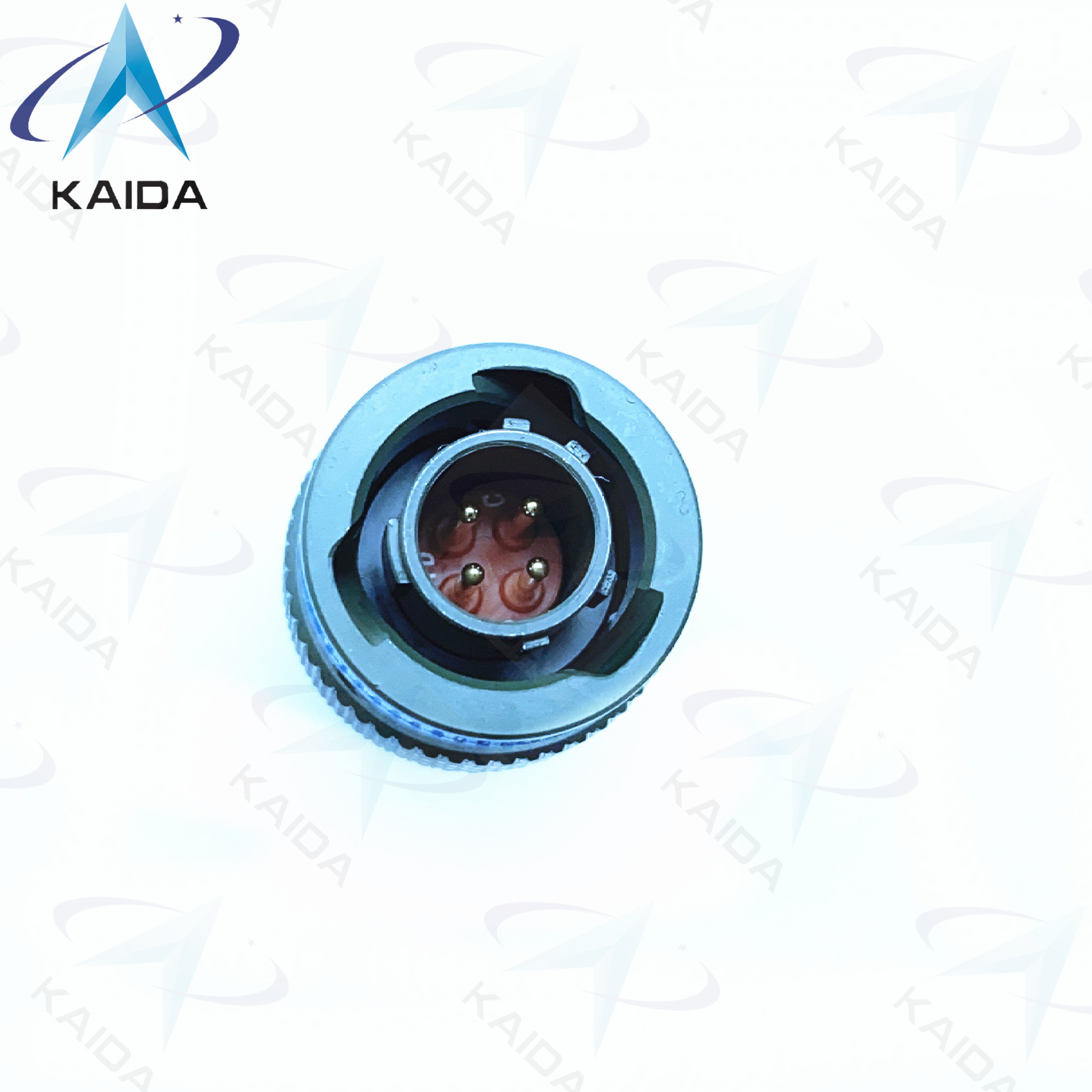

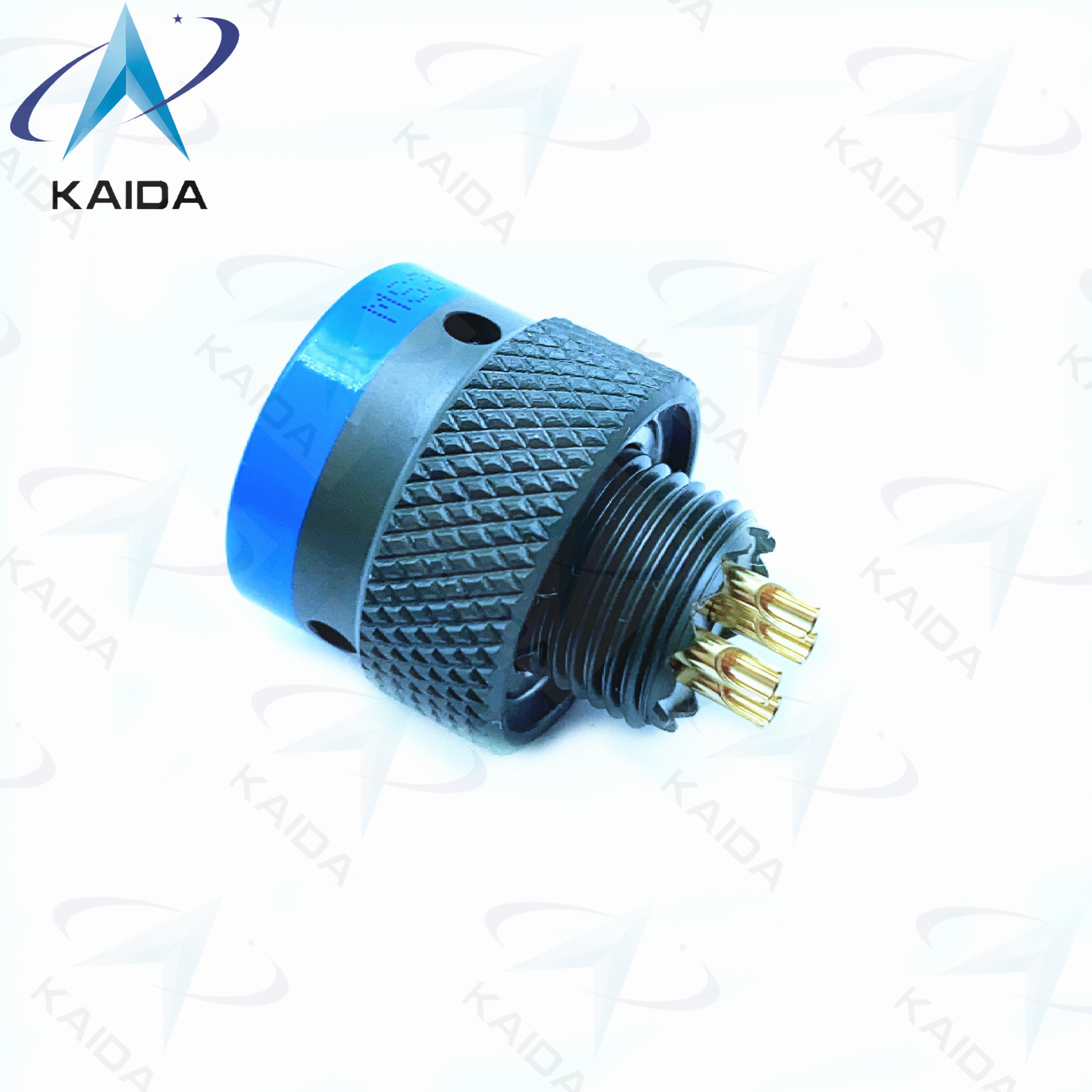

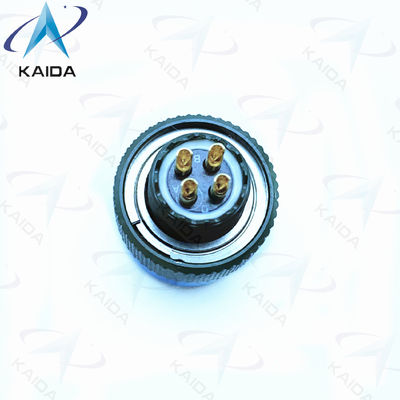

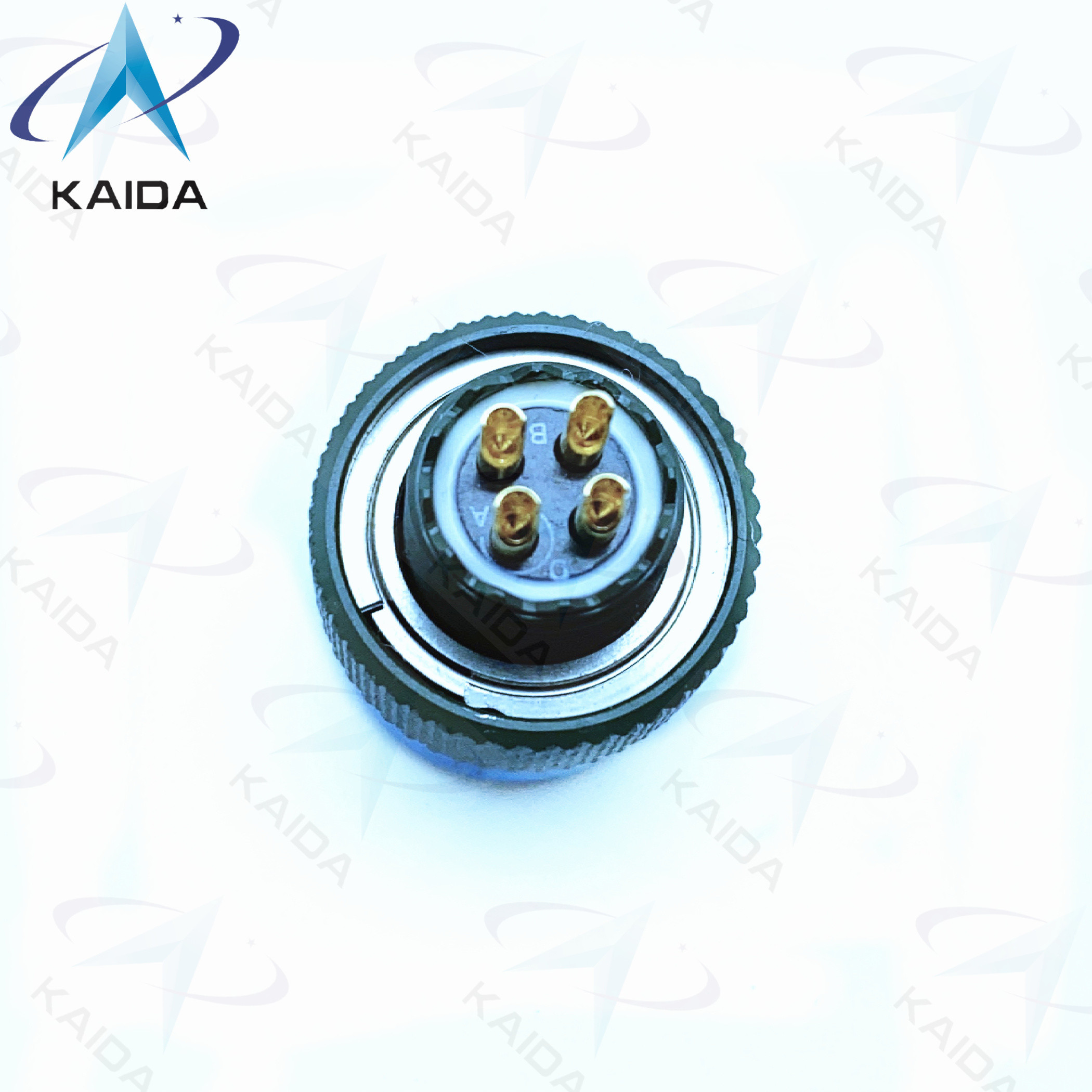

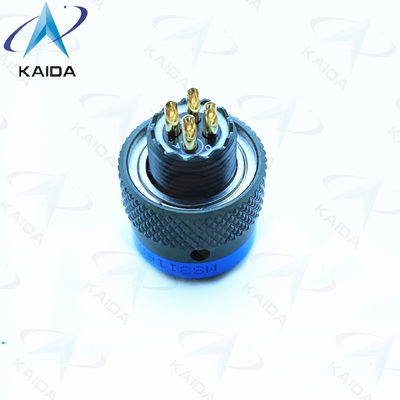

Solder Contact Termination MS3116F8-4P 500V Mil 26482 Connector Olive Green Cadmium

Solder Contact Termination with 500V Voltage Rating for MIL-DTL-26482 Series Ⅰ.MS3116F8-4P .Olive Green Cadmium

MIL-DTL-26482 Series Ⅰ is a miniature connector with a straight plug and an olive green cadmium finish. It has a shell size of 08 and is commonly referred to as MS3116F8-4P. This type of connector is designed to meet the performance requirements of MIL-DTL-26482 Series Ⅰ. It is an excellent choice for applications where reliable and consistent signal connections are required. MIL-DTL-26482 Series Ⅰ connectors are designed to provide a secure and reliable connection in demanding environments. They are resistant to shock and vibration, and are designed to withstand extreme temperatures and environmental conditions. It features a durable design, which is resistant to corrosion and wear and tear. MIL-DTL-26482 Series Ⅰ connectors are a cost-effective solution for applications requiring a reliable connection.

Features:

• Product Name: MIL-DTL-26482 Series Ⅰ
• Connector Type: Miniature Connector (MS3116F8-4P)
• Shell Finish: Olive Green Cadmium
• Shell Material: Aluminum Alloy
• Contact Termination: Crimp
• Current Rating: 7.5 A

Technical Parameters:

Applications:

MIL-DTL-26482 Series Ⅰ is a high quality miniature connector developed by KAIDA that is ideal for military and aerospace applications. It is designed to meet the MIL-DTL-26482 specification and features a shell material of aluminum alloy with a shell finish of olive green cadmium, and a voltage rating of 500V. It has 4 contacts and a connector type of miniature connector, and is identified by the model number MS3116F8-4P. This MIL-DTL-26482 Series Ⅰ connector is the perfect choice for applications requiring a reliable, high performance connection for data or power.

Customization:

KAIDA MS3116F8-4P Straight Plug MIL-DTL-26482 Series Ⅰ is a miniature connector with 4 contacts, aluminum alloy shell material, shell size 08 and current rating 7.5A. It is compliant with MIL-DTL-26482 military specification. It is made in China.

Support and Services:

MIL-DTL-26482 Series Ⅰ Technical Support and Service includes:

• Provide design consultation and engineering support
• Review drawings and specs for accuracy
• Provide technical documentation and data
• Provide product testing and quality assurance
• Provide maintenance and repair services
• Provide product enhancement and customization services

Packing and Shipping:

MIL-DTL-26482 Series I connectors are available in a range of packaging options. Depending on the size and type of the connector, these packaging options include:

• Bulk
• Ammo packs
• Tray
• Tape and Reel
• Clam Shell

MIL-DTL-26482 Series I connectors can be shipped via any standard shipping method, including air, ground, and express services.

FAQ:

Q: What is MIL-DTL-26482 Series Ⅰ?

A: MIL-DTL-26482 Series Ⅰ is a type of circular electrical connector manufactured by KAIDA, with the model number MS3116F8-4P, and origin in China.

Q: What is the size of MIL-DTL-26482 Series Ⅰ?

A: MIL-DTL-26482 Series Ⅰ has a size of 16-4P.

Q: What is the application of MIL-DTL-26482 Series Ⅰ?

A: MIL-DTL-26482 Series Ⅰ is suitable for aerospace, military, and commercial applications.

Q: What is the material of MIL-DTL-26482 Series Ⅰ?

A: MIL-DTL-26482 Series Ⅰ is made of copper alloy.

Q: What is the voltage rating of MIL-DTL-26482 Series Ⅰ?

A: MIL-DTL-26482 Series Ⅰ has a voltage rating of 250V.
