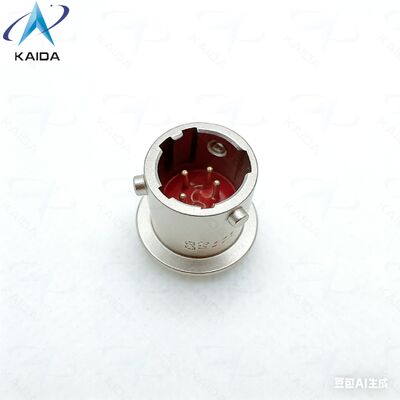

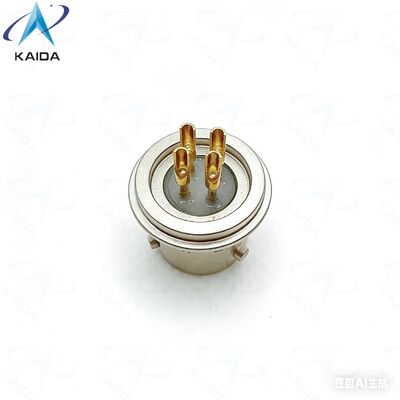

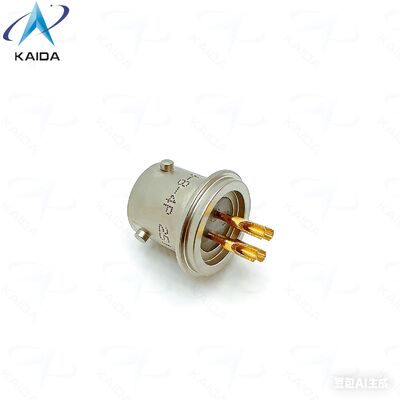

Shell Size 08 MIL DTL 26482 Series Ⅰ Miniature Connector Circular Connector Perfect for Military Communication Equipment

Product Description:

The MIL-DTL-26482 Series represents a highly reliable and robust line of miniature connectors designed to meet the demanding requirements of military, aerospace, and other high-performance applications. Among the various models in this series, the DTK1H-8-4P stands out as a hermetic receptacle connector that combines durability, precision engineering, and excellent electrical performance. This particular connector is engineered to provide a secure and stable connection in environments where reliability is critical.

The DTK1H-8-4P is classified as a miniature connector under the MIL-DTL-26482 standard, which is recognized globally for its stringent specifications and quality. This miniature connector type is specifically designed to offer a compact solution without compromising on electrical performance or mechanical strength. The reduced size of the DTK1H-8-4P makes it ideal for applications where space constraints are a significant concern, such as in aerospace systems, military vehicles, and advanced communication equipment.

One of the key attributes of the DTK1H-8-4P connector is its current rating of 7.5 amperes. This rating ensures that the connector can handle moderate electrical loads safely and efficiently, making it suitable for a wide range of electronic circuits and systems. The current rating is a critical factor in selecting connectors for specific applications, as it directly influences the connector’s ability to maintain stable electrical performance under operational stresses.

The DTK1H-8-4P features four contacts, which provide multiple connection points within a single compact unit. Having four contacts makes this connector versatile for applications requiring multiple signal or power lines to be connected simultaneously. The contact configuration is designed for optimal electrical conductivity and minimal signal loss, ensuring reliable data transmission and power delivery. This configuration also supports ease of installation and maintenance, enhancing the overall efficiency of system integration.

Another significant characteristic of the DTK1H-8-4P is its hermetic receptacle design. Hermetic connectors are specially constructed to provide an airtight seal, protecting the internal contacts from environmental factors such as moisture, dust, and corrosion. This feature is particularly important in harsh or extreme environments, including aerospace, military, and industrial applications where exposure to contaminants can compromise system integrity. The hermetic nature of the DTK1H-8-4P guarantees long-term reliability and durability, even in challenging conditions.

Engineered to meet or exceed MIL-DTL-26482 specifications, the DTK1H-8-4P ensures compatibility and interchangeability with other connectors conforming to this military standard. The MIL-DTL-26482 standard covers various aspects such as mechanical strength, electrical performance, environmental resistance, and dimensional requirements, making it a comprehensive guideline for miniature connectors. By adhering to this standard, the DTK1H-8-4P assures users of consistent quality and performance.

The construction of the DTK1H-8-4P also emphasizes user convenience and system reliability. Its rugged design supports repeated mating cycles without degradation of contact integrity. The connector’s materials and plating are selected for corrosion resistance and mechanical resilience, ensuring stable operation over extended periods. Additionally, the connector’s hermetic receptacle gender allows it to mate securely with the corresponding plug, maintaining a robust connection even under vibration and mechanical stress.

In summary, the MIL-DTL-26482 Series DTK1H-8-4P miniature connector is an exceptional choice for applications demanding a compact, reliable, and hermetically sealed connection. With a current rating of 7.5 A, four contacts, and a hermetic receptacle design, this connector provides a perfect balance of electrical performance and environmental protection. Its adherence to the MIL-DTL-26482 standard guarantees quality and compatibility, making the DTK1H-8-4P an indispensable component for military, aerospace, and other high-reliability applications.

Features:

• Product Name: MIL-DTL-26482 Series Ⅰ
• Connector Type: Miniature Connector
• Shell Material: Stainless Steel Passivated
• Gender: Hermetic Receptacle
• Number of Contacts: 4
• Model: DTK1H-8-4P
• Durable and corrosion-resistant stainless steel passivated shell
• Designed as a hermetic receptacle ensuring airtight and reliable connections
• Complies with MIL-DTL-26482 Series Ⅰ military specifications
• Compact miniature connector suitable for space-constrained applications

Technical Parameters:

Applications:

The MIL-DTL-26482 Series Ⅰ miniature connector, model number DTK1H-8-4P, manufactured by KAIDA in China, is engineered to deliver exceptional performance in demanding environments. With a voltage rating of 500V and a current rating of 7.5 A, this connector is ideally suited for applications requiring reliable and secure electrical connections under harsh conditions.

The DTK1H-8-4P from the MIL-DTL-26482 Series Ⅰ is widely used in military and aerospace sectors due to its robust design and compliance with stringent standards. Its compact size and durability make it perfect for integration into communication equipment, avionics systems, and ground support machinery where space is limited but reliability cannot be compromised. This miniature connector ensures stable electrical connectivity even in high-vibration or high-shock situations.

In addition to defense applications, the MIL-DTL-26482 Series Ⅰ connectors are also prevalent in industrial automation and transportation systems. The DTK1H-8-4P model is often selected for use in control panels, robotics, and heavy machinery, where the secure transfer of power and signals is critical. Its ability to handle 7.5 A current while maintaining a high voltage rating of 500V allows it to support a wide range of electrical loads in these environments.

Furthermore, the MIL-DTL-26482 Series Ⅰ connectors are suitable for use in outdoor and marine applications. Their construction provides excellent resistance to moisture, dust, and corrosion, making the DTK1H-8-4P an ideal choice for equipment exposed to harsh weather conditions. This versatility extends the connector’s applicability to maritime communication systems, outdoor surveillance devices, and other rugged electronic assemblies.

Overall, the KAIDA MIL-DTL-26482 Series Ⅰ DTK1H-8-4P miniature connector stands out as a reliable, high-performance component for diverse applications. Its blend of compact size, robust electrical specifications, and environmental resilience ensures dependable operation across military, aerospace, industrial, and outdoor scenarios.

Customization:

KAIDA offers comprehensive product customization services for the MIL-DTL-26482 Series Ⅰ, specifically for the model number DTK1H-8-4P. This MIL-DTL-26482 Series Ⅰ hermetic receptacle is designed with a stainless steel passivated shell material, ensuring durability and corrosion resistance. With a voltage rating of 500V, the DTK1H-8-4P part number connector meets stringent military standards while providing reliable performance.

Manufactured in China, KAIDA’s MIL-DTL-26482 Series product customization services allow clients to tailor specifications including gender, shell material, and electrical ratings to suit their unique application requirements. Whether you need modifications for the MIL-DTL-26482 Series Ⅰ or other MIL-DTL-26482 connectors, KAIDA ensures high-quality customization to meet industry demands.

Support and Services:

Product Technical Support and Services for the MIL-DTL-26482 Series connectors include comprehensive assistance to ensure optimal performance and reliability. Our support encompasses technical consultation, customization options, and troubleshooting guidance to meet specific application requirements.

We provide detailed product documentation, including specifications, installation instructions, and maintenance guidelines, to facilitate proper usage and longevity of the connectors. Additionally, our engineering team is available to assist with design integration and to address any technical inquiries related to the MIL-DTL-26482 Series.

Replacement parts and repair services are also offered to maintain the connectors' functionality throughout their service life. Commitment to quality and customer satisfaction drives our continuous improvement and support efforts for the MIL-DTL-26482 Series products.

Packing and Shipping:

Product Packaging and Shipping for MIL-DTL-26482 Series:

The MIL-DTL-26482 connectors are packaged to ensure protection against damage during handling and transportation. Each connector is individually packed in a protective plastic bag or sleeve, then placed in a sturdy cardboard box. Packaging materials are selected to prevent moisture, dust, and mechanical damage.

For bulk orders, connectors are packed in multiple layers with separators to avoid abrasion and deformation. The outer shipping carton is clearly labeled with product details, quantity, and handling instructions in accordance with military standards.

Shipping is performed via reliable carriers, with tracking to ensure timely and secure delivery. All shipments comply with applicable export controls and transportation regulations.
