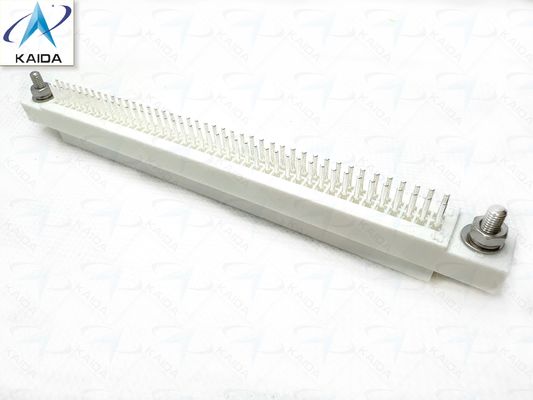

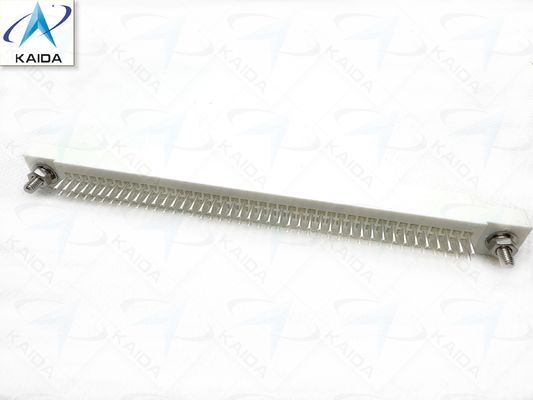

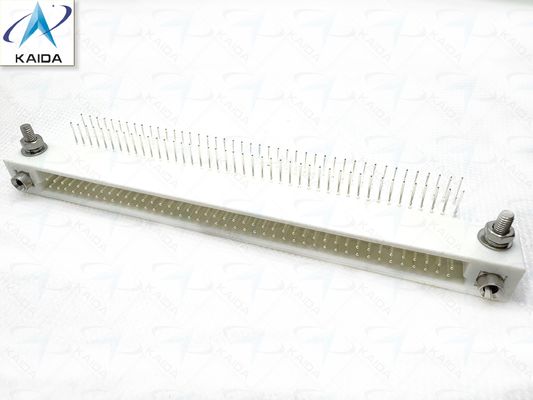

Rectangualr Metal Shel Plastic Receptacle Connectors for Industrial and Heavy Duty Applications

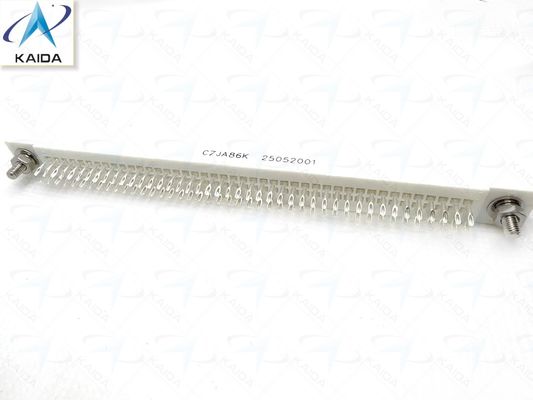

Part number:CZJA86K

Product Description:

The MIL-DTL-83513 Micro-D Connectors are a top-of-the-line solution for your connectivity needs, offering exceptional performance and reliability. These rectangular receptacle connectors feature a robust design that ensures secure connections in various applications.

Constructed with high-quality aluminum, the connectors are built to withstand demanding environments and provide long-lasting durability. The use of aluminum as the shell material makes these connectors lightweight yet sturdy, ideal for applications where weight is a concern.

The CZJA series of Micro-D connectors is known for its superior quality and performance, meeting stringent military specifications for reliability and performance. These connectors are designed to operate flawlessly even in the most challenging conditions, with an operating temperature range of -55°C to +125°C.

Equipped with gold over nickel contact plating, these connectors offer excellent conductivity and corrosion resistance, ensuring reliable signal transmission over time. The gold plating provides a low contact resistance, while the nickel layer offers protection against oxidation and wear, extending the connectors' lifespan.

With a mating cycle rating of 500, these connectors are designed for repeated connections and disconnections without compromising performance. The robust construction and high-quality materials ensure that these connectors maintain their integrity even after multiple mating cycles, making them a reliable choice for mission-critical applications.

Whether you are working in aerospace, military, or industrial applications, the MIL-DTL-83513 Micro-D Connectors provide a dependable solution for your connectivity needs. The metal shell design offers enhanced shielding and protection against electromagnetic interference, ensuring signal integrity in high-noise environments.

Overall, the MIL-DTL-83513 Micro-D Connectors with aluminum shell material, CZJA series designation, gold over nickel contact plating, and 500 mating cycles rating are a premium choice for demanding applications where reliability and performance are paramount.

Features:

• Product Name: MIL-DTL-83513 Micro-D Connectors
• MIL Spec: CZJA
• Voltage Rating: 500V
• Contact Plating: Gold Over Nickel
• Contact Material: Copper Alloy
• Gender: Rectangular Receptacle Connectors

Technical Parameters:

Applications:

The KAIDA CZJA86K Micro-D Connectors are part of the CZJA series, which are high-quality connectors designed for a wide range of applications. These connectors, manufactured in China, are known for their reliability and durability, making them ideal for use in demanding environments.

The CZJA86K model features a shell made of durable aluminium, ensuring the connectors can withstand harsh conditions. The connectors meet the MIL Spec CZJA, guaranteeing they meet stringent military standards for performance and quality.

With contact material of copper alloy and contact plating of gold over nickel, these connectors provide excellent conductivity and corrosion resistance, ensuring a stable and reliable connection. The connectors are rated for 500 mating cycles, making them suitable for applications that require frequent connections and disconnections.

The KAIDA CZJA86K Micro-D Connectors are commonly used in CZJA Rectangular Electrical Connector applications where a compact and reliable connection is required. The receptacle design of these connectors allows for easy and secure mating, making them suitable for use in various electronics, aerospace, and military applications.

Customization:

Customize your MIL-DTL-83513 Micro-D Connectors with our Product Customization Services:

Brand Name: KAIDA

Model Number: CZJA86K

Place of Origin: China

Gender: Rectangular Receptacle Connectors

Operating Temperature: -55 To +125°C

Shell Material: Aluminium

MIL Spec: CZJA

Mating Cycles: 500

Enhance your CZJA series connectors with our customization options, including the CZJA Rectangular Electrical Connector model CZJA86K.

Support and Services:

The MIL-DTL-83513 Micro-D Connectors product offers comprehensive Product Technical Support and Services to assist customers with any questions or issues they may encounter. Our dedicated technical support team is available to provide guidance on product selection, installation, troubleshooting, and maintenance.
