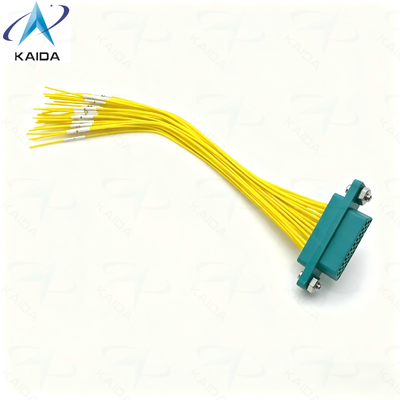

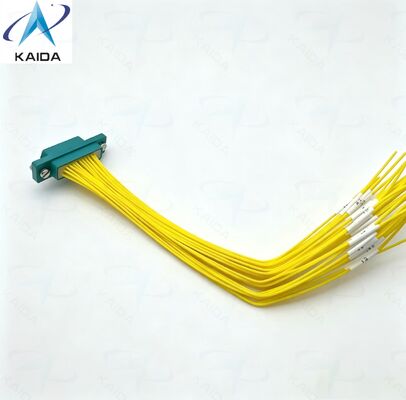

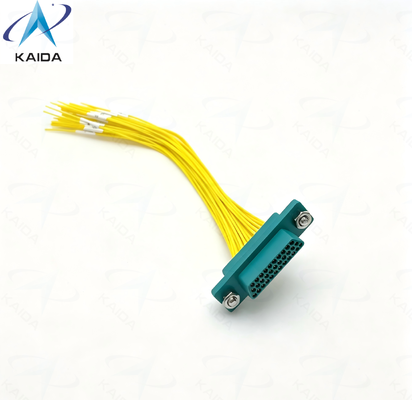

CDbF Series Micro-Rectangular Electrical Connector 33 Pins 150mm.CDBF-33T-15CM. Male Plug (with Pin contacts)

Part no:CDBF-33T-15CM

Product Description:

The MIL-DTL-83513 Micro-D Connectors, specifically the CDBF-33T-15CM part number from the CDbF Series Micro-Rectangular Connectors, represent a high-performance solution designed for demanding applications requiring reliable and compact interconnection. This connector is distinguished by its 33 socket pins, which provide a secure and efficient connection in a small footprint, making it ideal for use in electronic systems.

One of the key features of the CDBF-33T-15CM connector is its plastic shell construction. The plastic shell material offers several advantages including lightweight design, corrosion resistance, and excellent durability under harsh environmental conditions. This makes the connector well-suited for rugged applications where weight savings and resilience against moisture, chemicals, and mechanical stress are critical factors. The plastic shell also contributes to the overall compactness of the connector, supporting high-density packaging requirements without sacrificing performance or reliability.

Electrical performance is another significant aspect of the MIL-DTL-83513 Micro-D Connectors. This particular part is rated for a voltage of up to 600V, ensuring safe and reliable operation in high voltage environments. The current rating of 3 A per contact is adequate for a wide range of signal and low power applications, allowing the connector to handle both data and power transmission effectively. These ratings confirm that the CDBF-33T-15CM is engineered to maintain stable electrical performance even under demanding operational conditions.

The contact material used in this connector is copper alloy, which is renowned for its excellent electrical conductivity and mechanical strength. Copper alloy contacts ensure low contact resistance and high conductivity, which are essential for minimizing signal loss and maintaining integrity in complex electronic systems. Additionally, the copper alloy contacts are designed to withstand repeated mating cycles, providing long-term durability and consistent performance over the connector’s lifespan.

The 33 socket pins configuration in the CDBF-33T-15CM offers a versatile and reliable connection interface. The micro-rectangular form factor of the CDbF Series Micro-Rectangular Connectors allows for dense pin arrangements, facilitating multiple signal paths within a compact connector body. This makes it an optimal choice for applications where space constraints are a critical consideration but high pin counts are necessary. The socket pins are carefully engineered to provide secure mating with minimal insertion force, reducing wear and enhancing connector longevity.

Compliance with the MIL-DTL-83513 specification ensures that this Micro-D connector meets stringent  standards for quality, durability, and performance. This includes rigorous testing for vibration, shock, temperature extremes, and environmental exposures, guaranteeing that the connector will perform reliably in the most challenging conditions. Users can trust that the CDBF-33T-15CM will maintain electrical and mechanical integrity throughout its service life.

In summary, the CDBF-33T-15CM from the CDbF Series Micro-Rectangular Connectors is a robust, high-performance MIL-DTL-83513 Micro-D Connector featuring 33 socket pins housed in a durable plastic shell. With a voltage rating of 600V, a current rating of 3 A, and copper alloy contacts, this connector provides a reliable and efficient interconnection solution for advanced electronic systems. Its compact size, combined with high pin density and superior electrical characteristics, makes it an excellent choice for applications demanding precision, durability, and space efficiency.

Features:

• Product Name: MIL-DTL-83513 Micro-D Connectors
• Part Number: CDBF-33T-15CM
• Series: CDbF Series Micro-Rectangular Connectors
• Mating Cycles: 500
• Operating Temperature Range: -55 to +125°C
• MIL Spec: CDbF Electrical Connector
• Contact Plating: Gold Over Nickel
• Durable Metal Shell for robust protection

Technical Parameters:

Applications:

The KAIDA MIL-DTL-83513 Micro-D Connector, model number CDBF-33T-15CM, is expertly designed to meet the rigorous demands of various application occasions and scenarios. Originating from China, this connector is engineered to provide reliable electrical connections with a high mating cycle rating of 500, ensuring durability and long-lasting performance in challenging environments. The CDBF-33T-15CM features 33 socket pins, allowing for efficient and secure signal transmission in compact spaces.

One of the prominent application scenarios for the KAIDA CDBF-33T-15CM connector is in many systems. Its compliance with the MIL Spec CDbF Electrical Connector standards guarantees that it can withstand harsh conditions such as vibration, shock, and extreme temperatures. This makes it ideal for use in avionics, communication equipment, and ruggedized electronic devices where reliability is paramount. The plastic shell construction of the connector provides lightweight protection, but for applications requiring enhanced durability, the metal shell variants can be utilized to offer superior shielding and mechanical strength.

In addition to defense applications, the CDBF-33T-15CM Micro-D connector is well-suited for industrial and automation equipment. The 3 A current rating supports moderate power requirements, making it suitable for control systems, instrumentation, and sensor interfaces where precise and stable connections are necessary. The compact design with 33 socket pins enables high-density wiring configurations, saving space without compromising functionality.

Moreover, the connector finds extensive use in medical devices and testing equipment, where reliable signal integrity and frequent mating cycles are critical. The robust design ensures consistent performance over repeated connections and disconnections, enhancing operational efficiency and reducing downtime.

Overall, the KAIDA CDBF-33T-15CM Micro-D Connector is a versatile solution for any scenario demanding dependable electrical connectivity in a compact form factor. Whether it’s in aerospace, industrial automation, medical instruments, or communication systems, this connector’s combination of 33 socket pins, plastic shell, and MIL Spec compliance makes it an excellent choice for engineers and designers seeking quality and reliability.

Customization:

KAIDA offers specialized product customization services for the MIL-DTL-83513 Micro-D Connectors, specifically for the CDbF Series Micro-Rectangular Connectors. Our model CDBF-33T-15CM is designed with precision, featuring a durable plastic shell and high-quality copper alloy contact material to ensure reliable conductivity with a current rating of 3 A. Although the standard model uses a plastic shell, we provide options for upgrading to a robust metal shell upon request to meet specific application requirements. Manufactured in China, the CDBF-33T-15CM adheres to the MIL Spec standards for CDbF Electrical Connectors, guaranteeing performance and compatibility. Trust KAIDA to deliver customized solutions tailored to your needs, whether you require modifications in shell material, contact configuration, or other specifications within the CDbF Series Micro-Rectangular Connectors lineup.

Support and Services:

Our MIL-DTL-83513 Micro-D Connectors are backed by comprehensive technical support and service to ensure optimal performance and reliability in your applications. We provide detailed product documentation, including datasheets, application notes, and installation guides to assist with proper selection and usage.

Our experienced technical support team is available to address any inquiries regarding connector specifications, customization options, and compatibility with your systems. We also offer assistance with troubleshooting and maintenance to help minimize downtime and extend the lifespan of your connectors.

For design and engineering support, we provide guidance on connector integration, signal integrity, and environmental considerations to help meet  standards. Additionally, our services include repair, refurbishment, and replacement solutions to maintain the integrity of your assemblies over time.

We are committed to delivering high-quality products along with responsive, expert support to ensure your complete satisfaction with our MIL-DTL-83513 Micro-D Connectors.

Packing and Shipping:

Product Packaging and Shipping for MIL-DTL-83513 Micro-D Connectors are designed to ensure the highest level of protection and reliability during transit and storage. Each connector is individually packaged in anti-static, moisture-resistant bags to prevent contamination and damage from environmental factors.

The connectors are then securely placed in cushioned, rigid containers that absorb shocks and vibrations, maintaining the integrity of the product throughout the shipping process. Packaging materials comply with durability and protection.

For bulk orders, connectors are organized in labeled trays or reels, facilitating easy handling and inventory management. All packages are clearly marked with product identification, lot numbers, and handling instructions to ensure traceability and proper care.

Shipping is conducted via reliable carriers with tracking capabilities, and packages are inspected prior to dispatch to guarantee that all items meet quality and packaging standards. Special handling requests can be accommodated to meet specific customer or regulatory requirements.

FAQ:

Q1: What is the brand and model number of this Micro-D connector?

A1: The Micro-D connector is manufactured by KAIDA and the model number is CDBF-33T-15CM.

Q2: Where is the KAIDA CDBF-33T-15CM Micro-D connector manufactured?

A2: This Micro-D connector is made in China.

Q3: What standard does the KAIDA CDBF-33T-15CM Micro-D connector comply with?

A3: The connector complies with the MIL-DTL-83513 specification for Micro-D connectors.

Q4: What applications are suitable for the KAIDA CDBF-33T-15CM Micro-D connector?

A4: This connector is ideal for high-reliability electronic applications requiring compact, rugged, and high-performance interconnects.

Q5: What is the pin count and cable length of the KAIDA CDBF-33T-15CM connector?

A5: The model CDBF-33T-15CM features 33 contacts and comes with a 15 cm cable length.
