The MIL-DTL-26482 Series 1 product features a gender of Square Flange Receptacle, making it a versatile and reliable option for various applications. Designed to meet the stringent requirements of MIL-DTL-26482 standards, this Square Flange Receptacle offers a secure and robust connection.
Constructed with high-quality Aluminum Alloy, both the Coupling Nut and Shell of this product ensure durability and longevity in operation. The Aluminum Alloy material provides excellent strength and corrosion resistance, ideal for demanding environments and applications.
The Shell Finish of this Square Flange Receptacle is Olive Green Cadmium, which not only enhances the aesthetic appeal but also provides additional protection against wear and tear. The Olive Green Cadmium finish adds a layer of defense against environmental factors, ensuring the longevity of the product.
With a Current Rating of 7.5 A, this MIL-DTL-26482 Series 1 Square Flange Receptacle is capable of handling moderate to high power requirements with ease. The reliable electrical conductivity of this product ensures a stable and consistent power transmission, making it suitable for a wide range of electrical applications.
| Shell Finish | Olive Green Cadmium |
| Shell Material | Aluminum Alloy |
| Product Name | MIL-DTL-26482 Series I |
| Contact Termination | Solder |
| Current Rating | 7.5 A |
| Connector Type | Miniature Connector |
| Shell Size | 20 |
| Number of Contacts | 27 |
| Voltage Rating | 500V |
| Coupling Nut Material | Aluminum Alloy |

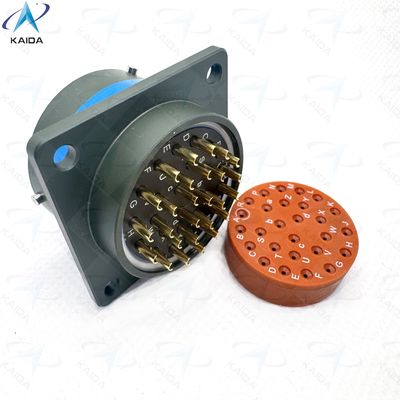

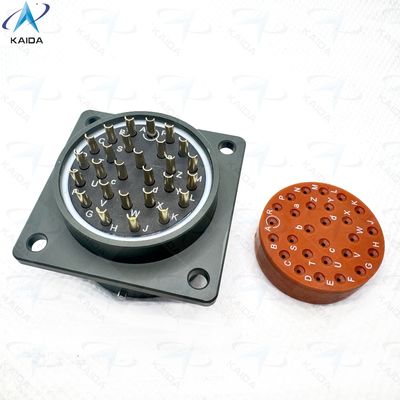

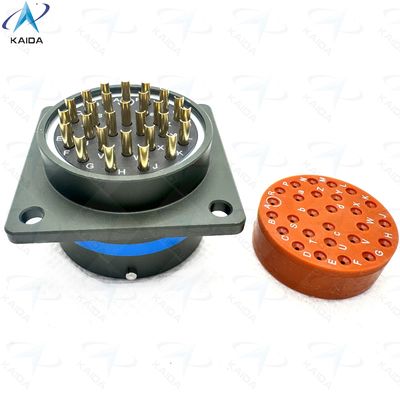

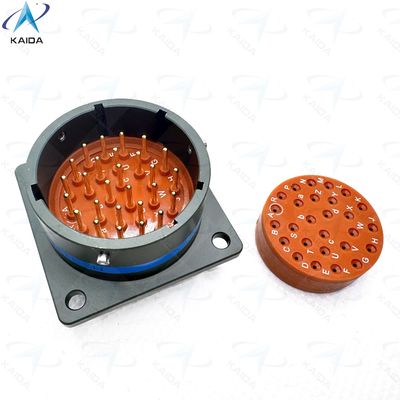

The KAIDA MIL-DTL-26482 Series 1 connector, model number MS3112F20-27PN, is a versatile and reliable product originating from China. With 27 contacts and a square flange receptacle design, this miniature connector is ideal for various applications across different industries.
The aluminum alloy coupling nut and shell material of the MS3112F20-27PN connector provide durability and protection in harsh environments, making it suitable for use in aerospace, defense, and industrial settings. The solder contact termination ensures a secure and stable connection, minimizing the risk of signal interference or loss.
Product Application Occasions and Scenarios:
Whether in the air, on the ground, or in a manufacturing facility, the KAIDA MS3112F20-27PN connector offers a dependable solution for critical signal transmission and power supply needs. Its compatibility with MIL-DTL-26482 standards ensures high quality and performance in demanding environments.
Product Customization Services for the KAIDA MIL-DTL-26482 Series I product:
Brand Name: KAIDA
Model Number: MS3112F20-27PN
Place of Origin: China
Shell Size: 20
Shell Finish: Olive Green Cadmium
Product Name: MIL-DTL-26482 Series I
Coupling Nut Material: Aluminum Alloy
Number of Contacts: 27
Keywords: MS3112F20-27PN , MIL-DTL-26482 Series I , Environmental Sealed
The MIL-DTL-26482 Series 1 product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the product. Additionally, we offer training programs to help customers better understand the features and capabilities of the product.
Product Name: MIL-DTL-26482 Series 1
Description: This product is part of the MIL-DTL-26482 Series 1 connectors, designed for rugged military and aerospace applications.
Packaging: The MIL-DTL-26482 Series 1 product will be securely packaged in a protective box to prevent damage during shipping.
Shipping: The product will be shipped using a reliable courier service to ensure safe and timely delivery to the customer.
Q: What is the brand name of this product?
A: The brand name of this product is KAIDA.
Q: What is the model number of this product?
A: The model number of this product is MS3112F20-27PN.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the series number of this product?
A: This product is part of the MIL-DTL-26482 Series 1.
Q: Is this product compatible with other MIL-DTL-26482 Series 1 connectors?
A: Yes, this product is compatible with other MIL-DTL-26482 Series 1 connectors.
