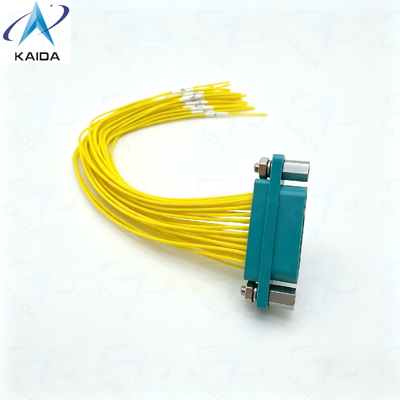

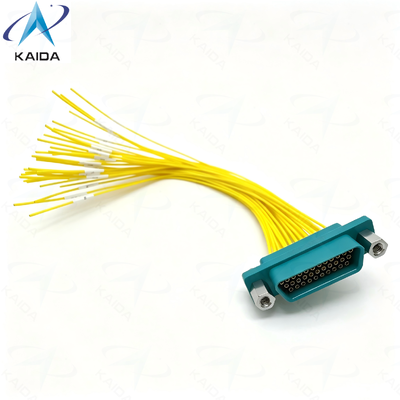

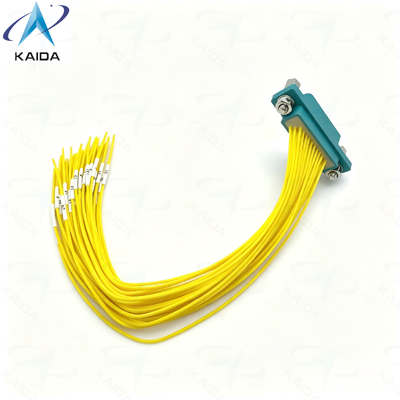

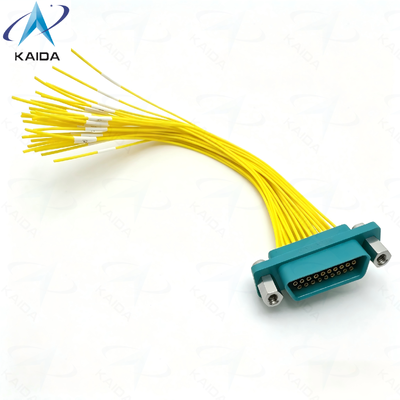

CDbF Series Micro-Rectangular Electrical Connector 33 Pins.3 A Current Rating Plastic Shell.CDBF-33Z-15CM.Female Receptacle (with Socket contacts).

Part number:CDBF-33Z-15CM

Product Description:

The MIL-DTL-83513 Micro-D Connectors, specifically the CDbF Series Micro-Rectangular Connectors, represent a highly reliable and robust solution for demanding electrical connection applications. These connectors are designed to meet the rigorous requirements of  industries, ensuring superior performance under harsh environmental conditions. With a part number CDBF-33Z-15CM, this particular model features 33 socket pins, making it suitable for complex and high-density wiring needs where space and reliability are critical.

One of the standout features of the CDbF Series Micro-D Connectors is their ability to handle a current rating of 3 A. This current capacity ensures that the connector can support moderate power loads, making it ideal for a wide range of electronic devices and systems requiring stable electrical connections. Additionally, the voltage rating of 600V further enhances the connector's suitability for various applications, providing excellent insulation and safety margins in electrical circuits.

The MIL Spec classification of this connector is CDbF Electrical Connector, indicating its compliance with stringent standards. These standards govern aspects such as durability, resistance to vibration, shock, temperature extremes, and environmental sealing, all of which are essential for ensuring reliable operation in critical systems. As a result, the CDBF-33Z-15CM connector is trusted for use in aerospace, defense, and other high-performance sectors where failure is not an option.

Another important attribute of this Micro-D connector is its plastic shell construction. The plastic shell material offers several advantages, including reduced weight compared to metal connectors, corrosion resistance, and electrical insulation properties. This makes the connector lighter and easier to integrate into compact systems without compromising durability or safety. The plastic shell also contributes to the connector's overall robustness, protecting the internal contacts and pins from mechanical damage and environmental factors.

The 33 socket pins configuration in the CDBF-33Z-15CM ensures secure and efficient electrical connections. Socket pins provide reliable contact points that maintain excellent conductivity while minimizing wear and tear from repeated mating cycles. This design choice enhances the connector's lifespan and performance, making it suitable for applications where frequent connection and disconnection might be necessary. The pin arrangement also supports high-density wiring, enabling complex signal and power transmission within a compact footprint.

For those familiar with the CDbF Series, the CDBF-33Z-15CM is often compared to the CDBF-33T-15CM variant, which features 33 tin-plated pins. While the CDBF-33T-15CM offers its own advantages, the 33 socket pins in the CDBF-33Z-15CM provide superior receptacle contacts that are essential for certain types of connections. This distinction allows engineers and designers to select the exact configuration that best suits their system requirements, whether it be for signal integrity, mechanical endurance, or environmental resistance.

In summary, the MIL-DTL-83513 Micro-D Connectors from the CDbF Series, particularly the CDBF-33Z-15CM with 33 socket pins, deliver a combination of high performance, reliability, and compliance with standards. Their 3 A current rating and 600V voltage rating make them versatile for a variety of electronic systems, while the plastic shell ensures a lightweight yet durable housing. Whether used in aerospace, defense, or other industries demanding precise and dependable electrical connections, these connectors stand out as a premium choice for engineers seeking quality and performance.

Features:

• Product Name: MIL-DTL-83513 Micro-D Connectors
• Current Rating: 3 A
• Voltage Rating: 600V
• Part Number: CDBF-33Z-15CM
• MIL Spec: CDbF Electrical Connector
• Operating Temperature Range: -55 to +125°C
• Features a durable Plastic Shell for enhanced protection
• Contains 33 Socket pins for reliable electrical connections
• Designed with a Plastic Shell to ensure lightweight and robust performance

Technical Parameters:

Applications:

The KAIDA MIL-DTL-83513 Micro-D Connector, model number CDBF-33Z-15CM, is a high-performance interconnect solution designed for demanding applications across various industries. With its robust construction featuring a durable plastic shell and 33 socket pins, this connector ensures reliable electrical connections in compact and space-constrained environments. The connector’s contact material is made of high-quality copper alloy, which guarantees excellent conductivity and corrosion resistance, making it suitable for long-term use in harsh conditions.

Rated for a voltage of 600V and designed to withstand up to 500 mating cycles, the CDBF-33Z-15CM model offers dependable performance in scenarios where frequent connection and disconnection are required. Its compact size and sturdy plastic shell make it an ideal choice for aerospace and defense systems, where weight reduction and durability are critical. The connector is also widely used in communication devices, avionics, and ruggedized instrumentation, offering secure and stable connections under vibration and shock.

The KAIDA Micro-D connector finds extensive use in industrial automation and robotics. Its ability to handle high voltage levels combined with a compact form factor allows for seamless integration into control panels and automated machinery. The plastic shell provides insulation and mechanical protection, ensuring the connector performs reliably in environments exposed to dust, moisture, and mechanical stress.

The CDBF-33Z-15CM is also compatible with the CDBF-33T-15CM counterpart, enabling flexible system designs and easy maintenance. This versatility makes it suitable for medical devices, instrumentation, and test equipment where precision and reliability are paramount. Additionally, its design supports quick and easy installation, reducing downtime in critical systems.

Manufactured in China under the KAIDA brand, the MIL-DTL-83513 Micro-D Connector stands out for its combination of durability, electrical performance, and compact design. Whether used in aerospace, defense, industrial automation, or medical applications, the CDBF-33Z-15CM with its 33 socket pins and plastic shell provides a dependable and efficient connection solution for a wide range of product application occasions and scenarios.

Customization:

KAIDA offers product customization services for the MIL-DTL-83513 Micro-D Connectors, specifically tailored for the CDbF Series Micro-Rectangular Connectors. Our model CDBF-33Z-15CM features 33 socket pins, providing reliable and efficient connectivity with a current rating of 3 A. Manufactured in China, this connector is constructed with a durable plastic shell and copper alloy contacts plated with gold over nickel to ensure optimal conductivity and corrosion resistance.

The CDBF-33Z-15CM is designed for up to 500 mating cycles, making it ideal for applications requiring frequent connections and disconnections. Whether you need the CDBF-33T-15CM or other variants within the CDbF Series, KAIDA can customize Micro-D connectors to meet your specific requirements, ensuring high performance and compliance with MIL-DTL-83513 standards.

Support and Services:

Product Technical Support and Services for MIL-DTL-83513 Micro-D Connectors include comprehensive assistance to ensure optimal performance and reliability. Our support team provides expert guidance on product selection, application engineering, and integration to meet your specific requirements. We offer detailed technical documentation, including datasheets, application notes, and installation instructions to facilitate proper use and maintenance of Micro-D connectors.

Additionally, we provide customized testing and qualification services to validate connector performance in your intended environment. Our repair and refurbishment services help extend the life of your connectors, ensuring continued operational efficiency. Training sessions and webinars are available to educate your team on best practices for handling and installing MIL-DTL-83513 Micro-D Connectors.

For any technical inquiries or assistance, our dedicated support specialists are ready to help troubleshoot issues and recommend solutions tailored to your application needs. We are committed to delivering high-quality support and services to maximize the value and reliability of your Micro-D connector installations.

Packing and Shipping:

Product Packaging and Shipping for MIL-DTL-83513 Micro-D Connectors are designed to ensure the highest level of protection and reliability during transit. Each connector is individually packaged in anti-static, moisture-resistant materials to prevent damage from electrostatic discharge and environmental factors.

The connectors are placed in custom foam inserts or cushioned compartments within sturdy, corrugated cardboard boxes to minimize movement and impact. Packaging is clearly labeled with product identification, part numbers, and handling instructions to facilitate easy inventory management and proper handling.

For shipping, containers are sealed securely and marked with appropriate shipping labels, including any necessary hazard or handling symbols. Multiple packaging options are available to accommodate various order sizes, from small quantities to bulk shipments, ensuring safe delivery to the customer’s location.

Special packaging requests, such as ESD shielding bags, humidity indicator cards, or custom labeling, can be accommodated upon request to meet specific customer requirements or industry standards.
