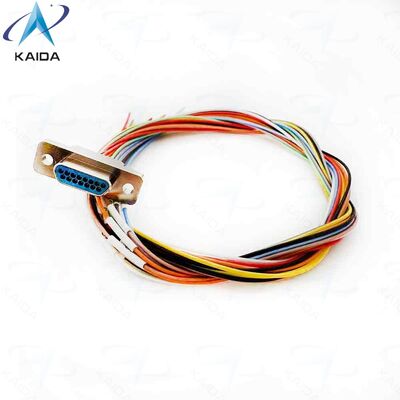

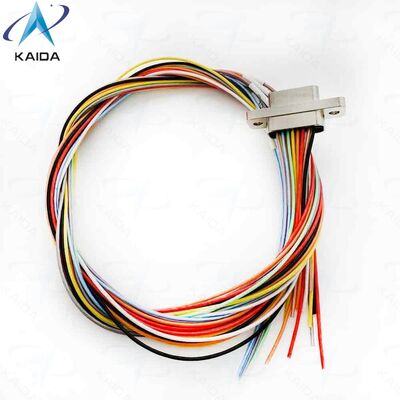

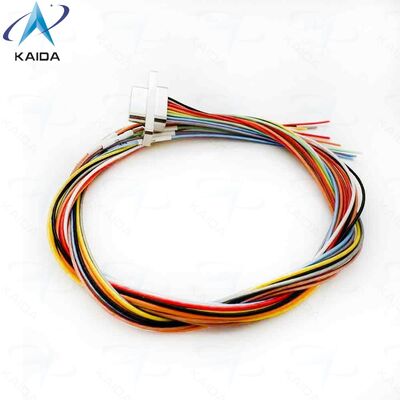

MDM Metal Shell Part Number MDM 15PH003B.15 Pins.MIL-DTL-83513 Series.Electroless Nickel.Harness-insulated wire.

Part number:MDM-15PH003B

Product Description:

The MIL-DTL-83513 Micro-D Connectors are precision-engineered interconnect solutions designed to meet the demanding requirements of military, aerospace, and industrial applications. These connectors are renowned for their robust construction, reliability, and compact design, making them ideal for use in environments where space is limited and performance is critical. Constructed with a shell made from electroless nickel, the connectors offer excellent corrosion resistance and durability, ensuring long-lasting performance even in harsh conditions.

One of the standout features of the MIL-DTL-83513 Micro-D Connectors is their superior electrical performance. They have a voltage rating of 500V, which allows them to handle high-voltage signals safely and efficiently. This makes them suitable for a wide range of applications, including signal and power transmission in complex wiring harnesses. The connectors are compatible with harness-insulated wire, ensuring secure and stable connections that maintain system integrity under various operational stresses.

The contact material used in these connectors is high-quality copper alloy, selected for its excellent electrical conductivity and mechanical strength. To further enhance electrical performance and reliability, the contacts are plated with gold over nickel. This gold plating provides low contact resistance and superior corrosion resistance, which is essential for maintaining consistent signal quality over the connector's lifespan. The combination of copper alloy contacts with gold plating ensures optimal conductivity and durability, even in environments exposed to moisture, vibration, or temperature fluctuations.

Operating temperature range is a critical factor in connector performance, and the MIL-DTL-83513 Micro-D Connectors excel in this regard. They are rated to operate effectively within a temperature range of -55 to +125°C. This wide operating temperature range makes them suitable for use in extreme environments, including aerospace applications where temperature variations can be severe. Whether exposed to freezing cold or high heat, these connectors maintain their mechanical and electrical integrity, ensuring reliable operation at all times.

In addition to their technical specifications, these connectors are designed to be compatible with harness-insulated wire, providing secure and efficient connectivity in complex cable assemblies. This compatibility is vital for applications involving Aluminum or other specialized conductors, as it ensures proper termination and minimizes the risk of electrical faults. The use of harness-insulated wire with MIL-DTL-83513 connectors enhances overall system reliability, making them a preferred choice for engineers and designers working on advanced electronic systems.

The aluminum components integrated into some versions of the MIL-DTL-83513 connectors contribute to their lightweight nature without compromising strength or durability. This is particularly important in aerospace and military applications where weight reduction is a critical design consideration. The combination of aluminum with electroless nickel plating on the shell results in connectors that are not only lightweight but also resistant to corrosion and mechanical wear.

Overall, the MIL-DTL-83513 Micro-D Connectors represent a high-performance, reliable, and versatile solution for demanding interconnect needs. Their electroless nickel shell, copper alloy contacts with gold plating, 500V voltage rating, and wide operating temperature range make them suitable for a broad spectrum of applications. When used with harness-insulated wire, these connectors provide secure, durable connections that ensure optimal performance in both standard and challenging environments. Whether for aerospace, military, or industrial use, the MIL-DTL-83513 Micro-D Connectors deliver the quality and reliability required to meet stringent operational standards.

Features:

• Product Name: MIL-DTL-83513 Micro-D Connectors
• Current Rating: 3 A
• Contact Plating: Gold Over Nickel
• Contact Material: Copper Alloy
• Operating Temperature Range: -55 to +125°C
• Voltage Rating: 500V
• Features a durable Metal Shell for enhanced protection
• Part of the MDM series, known for reliability and performance
• Metal Shell construction ensures superior shielding and mechanical strength

Technical Parameters:

Applications:

The KAIDA MDM-15PH003B Micro-D Connector is specifically designed to meet the rigorous demands of military, aerospace, and high-reliability electronic applications. Built to MIL-DTL-83513 standards, this connector ensures exceptional performance and durability in harsh environments. Its robust construction, featuring gold over nickel contact plating and copper alloy contacts, guarantees reliable electrical connections with superior corrosion resistance and longevity.

The MDM-15PH003B is ideal for use in defense communication systems where secure and stable signal transmission is critical. Its ability to handle a voltage rating of 500V and a current rating of 3 A makes it suitable for a wide range of power and signal applications within advanced avionics and military vehicles. The connector’s compact size and high density also make it a perfect choice for space-constrained installations without compromising on performance.

In aerospace scenarios, the MDM-15PH003B excels in providing dependable connectivity for flight control systems, radar modules, and navigation equipment. The electroless nickel plating on the connector housing enhances wear resistance and environmental protection, ensuring the connector maintains integrity under extreme temperature fluctuations and mechanical stress.

Moreover, the MDM-15PH003B is widely used in industrial automation and robotics, where precision and reliability are paramount. Its MIL Spec M83513/MDM compliance guarantees that it meets stringent military specifications, assuring users of consistent quality and performance. The electroless nickel plating combined with gold over nickel contact plating delivers excellent conductivity and corrosion resistance, making it suitable for use in both indoor and outdoor applications.

Designed and manufactured in China, the KAIDA MDM-15PH003B Micro-D connector is trusted by engineers and technicians who require a dependable, high-performance connector solution. Whether in rugged field operations, critical aerospace missions, or demanding industrial environments, the MDM-15PH003B continues to provide secure connections, ease of installation, and long service life.

Customization:

KAIDA offers comprehensive product customization services for the MIL-DTL-83513 Micro-D Connectors, specifically for the MDM-15PH003B model from the MDM series. Manufactured in China, these connectors feature a robust shell material made of Electroless Nickel, providing excellent corrosion resistance and durability. The connectors are designed with Aluminum shells, ensuring a lightweight yet sturdy construction suitable for demanding environments.

The MDM-15PH003B connectors support a current rating of 3 A and a voltage rating of 500V, making them ideal for a wide range of electronic applications. The contact plating is finished with Gold Over Nickel, guaranteeing reliable electrical performance and long-lasting conductivity. Additionally, these connectors operate efficiently within a temperature range of -55 to +125°C, ensuring stability under extreme conditions.

KAIDA’s customization services allow clients to tailor the Electroless Nickel Micro-D connectors from the MDM series to meet specific requirements, including variations in shell size, plating options, and electrical ratings. This flexibility ensures that each connector can be optimized for performance, environmental resistance, and integration into specialized equipment.

Support and Services:

Product Technical Support and Services for MIL-DTL-83513 Micro-D Connectors include comprehensive assistance to ensure optimal performance and reliability of your Micro-D interconnect solutions. Our technical support team provides expert guidance on connector selection, application requirements, and integration best practices. We offer detailed product documentation, including datasheets, application notes, and installation instructions to facilitate proper use and maintenance.

In addition, our services encompass customization options tailored to your specific needs, such as cable assembly, packaging solutions, and qualification testing to meet stringent military and aerospace standards. We also provide repair and refurbishment services to extend the lifecycle of your connectors.

For product training and technical workshops, we offer sessions designed to enhance your team's knowledge and proficiency in handling MIL-DTL-83513 Micro-D Connectors. Our commitment is to deliver responsive, knowledgeable support to help you achieve reliable interconnections in demanding environments.

Packing and Shipping:

All MIL-DTL-83513 Micro-D Connectors are carefully packaged to ensure maximum protection during transit and storage. Each connector is individually sealed in anti-static bags to prevent contamination and electrostatic discharge damage. The connectors are then placed in custom-designed foam inserts within sturdy, labeled cardboard boxes to provide cushioning and prevent movement.

For bulk orders, multiple individually packaged connectors are securely packed in larger cartons with additional padding materials to avoid any damage. All shipments are clearly marked with product information, handling instructions, and compliance certifications as required.

Shipping is carried out through reliable carriers, with options for expedited delivery and tracking services available to ensure timely and safe arrival of the MIL-DTL-83513 Micro-D Connectors to the customer’s location.

FAQ:

Q1: What is the brand and model number of this Micro-D connector?

A1: The Micro-D connector is manufactured by KAIDA, and the model number is MDM-15PH003B.

Q2: Where is the KAIDA MIL-DTL-83513 Micro-D Connector made?

A2: This Micro-D connector is made in China.

Q3: What standard does the KAIDA MDM-15PH003B Micro-D connector comply with?

A3: The KAIDA MDM-15PH003B Micro-D connector complies with the MIL-DTL-83513 military specification.

Q4: What applications are suitable for the MIL-DTL-83513 Micro-D connectors by KAIDA?

A4: These connectors are ideal for aerospace, military, and other high-reliability applications requiring compact and robust interconnect solutions.

Q5: What is the contact arrangement of the KAIDA MDM-15PH003B Micro-D connector?

A5: The MDM-15PH003B model features a 15-pin contact arrangement designed for secure and reliable electrical connections.
