The MIL-DTL-83513 Micro-D Connectors, specifically the J29 series, are microminiature connectors designed to meet the demanding requirements of various applications. Known for their reliability and robust construction, the J29 series connectors are ideal for use in challenging environments where space and weight are critical factors.
The J29 series connectors feature a shell material made of high-quality aluminium, ensuring durability and resistance to harsh conditions. This material choice provides excellent protection to the internal components of the connector, making it suitable for a wide range of industrial and military applications.
With a current rating of 3 A, the J29 series connectors offer dependable electrical performance, making them suitable for transmitting power and signals efficiently. The connectors are designed to maintain a secure and stable connection even in high-vibration environments, ensuring uninterrupted data transmission and power delivery.
Operating within a wide temperature range of -55°C to +125°C, the J29 series connectors demonstrate their versatility and reliability in extreme conditions. Whether in freezing cold or scorching heat, these connectors maintain their functionality, providing consistent performance when needed the most.
Featuring a voltage rating of 500V, the J29 series connectors ensure the safe and efficient transmission of electrical signals without the risk of voltage spikes or disruptions. This voltage rating makes the connectors suitable for a variety of applications that require reliable and stable electrical connections.

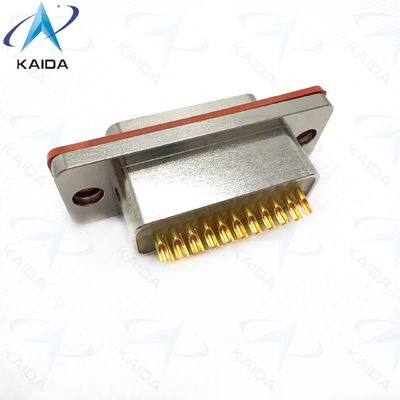

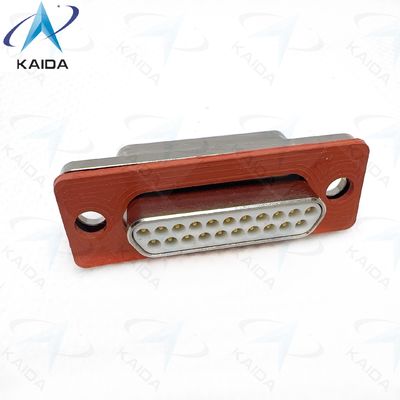

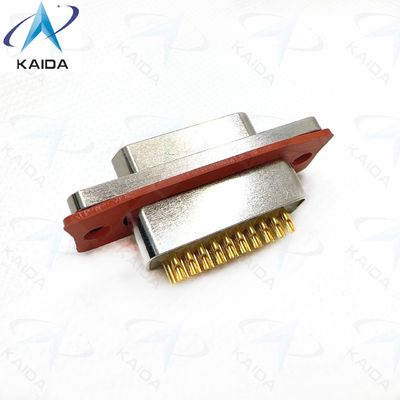

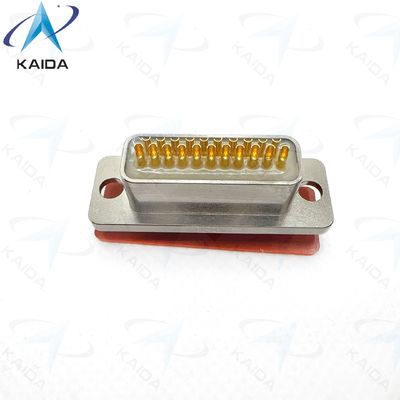

The J29 series of connectors, also known as the J29 Rectangular Electrical Connectors, offer a compact and lightweight solution for connecting various electrical components. The connectors, exemplified by the J29M-21TJH model, are designed to be versatile and easy to install, providing a reliable connection in a space-efficient package.
In conclusion, the MIL-DTL-83513 Micro-D Connectors of the J29 series are high-performance microminiature connectors that excel in demanding environments. With their aluminium shell material, 3 A current rating, wide operating temperature range, and 500V voltage rating, these connectors offer a reliable and durable solution for various industrial and military applications. The J29 series connectors, including the J29M-21TJH model, provide a compact and efficient connectivity solution, making them a preferred choice for applications where space and weight are critical considerations.
| Gender | Microminiature Connectors |
| Voltage Rating | 500V |
| Mating Cycles | 500 |
| Contact Material | Copper Alloy |
| Part Number | J29M-21TJH |
| Number of Contacts | 21 |
| Operating Temperature | -55 To +125°C |
| MIL Spec | J29M |
| Current Rating | 3 A |
| Finish | Nickel |
The KAIDA J29M-21TJH Micro-D Connectors are versatile and reliable connectors designed for various applications across different industries. With their durable aluminum shell material, these connectors are ideal for use in harsh environments where resistance to corrosion and ruggedness are essential.
These connectors, compliant with MIL Spec J29M, are manufactured in China, ensuring high-quality standards and precise engineering. The gold over nickel contact plating provides excellent conductivity and resistance to oxidation, making them suitable for use in demanding electrical applications.
The wide operating temperature range of -55 to +125°C allows these connectors to perform reliably in extreme temperature conditions, making them suitable for aerospace, military, and industrial applications where temperature variations are common.
The voltage rating of 500V further enhances the versatility of these connectors, making them suitable for a wide range of electrical systems and equipment. Whether used in aircraft, communication systems, or industrial machinery, the J29M-21TJH connectors provide a secure and stable connection.
From military equipment to commercial electronics, the KAIDA J29M-21TJH Micro-D Connectors excel in various product application occasions and scenarios. Their robust construction, high-quality materials, and compatibility with MIL Spec J29M make them a preferred choice for engineers and manufacturers seeking dependable connectivity solutions.
Customize your MIL-DTL-83513 Micro-D Connectors from KAIDA with the Model Number J29M-21TJH to meet your specific requirements. Originating from China, these connectors feature a Metal Shell design and offer a Voltage Rating of 500V. The Gold Over Nickel Contact Plating ensures reliable performance over 500 Mating Cycles. With 21 Contacts, this J29 Rectangular Electrical Connector is suitable for Operating Temperatures ranging from -55 to +125°C.
The MIL-DTL-83513 Micro-D Connectors product offers comprehensive Product Technical Support and Services to ensure optimal performance and reliability. Our team of experts is available to assist with any technical inquiries, product specifications, and customization requirements. We provide detailed product documentation, including datasheets, application notes, and product guides to help you successfully integrate the connectors into your systems.
Product Packaging and Shipping for MIL-DTL-83513 Micro-D Connectors:
The MIL-DTL-83513 Micro-D Connectors are carefully packaged to ensure their safety during shipping and handling. Each connector is placed in a protective plastic tray to prevent any damage or scratching. The tray is then placed in a sturdy cardboard box with ample cushioning material to absorb any impact during transit.
For shipping, we use reliable carriers to deliver the connectors to your location safely and efficiently. The package is sealed securely to prevent any tampering or loss during transportation. You can track your shipment using the provided tracking number to know the status of your order.
Q: What is the brand name of the Micro-D Connectors?
A: The brand name of the Micro-D Connectors is KAIDA.
Q: What is the model number of the Micro-D Connectors?
A: The model number of the Micro-D Connectors is J29M-21TJH.
Q: Where are the Micro-D Connectors manufactured?
A: The Micro-D Connectors are manufactured in China.
Q: What are some key features of the Micro-D Connectors?
A: The Micro-D Connectors are known for their compact size, high reliability, and durability.
Q: Are the Micro-D Connectors suitable for high-performance applications?
A: Yes, the Micro-D Connectors are designed to meet the demands of high-performance applications.
