With a voltage rating of 500V, the MIL-DTL-83513 Micro-D Connectors product is capable of handling high levels of electrical power. This makes it suitable for use in a variety of industrial and commercial settings where high voltage is a concern.
The contact plating of the MIL-DTL-83513 Micro-D Connectors product is gold over nickel, which provides a superior level of conductivity and corrosion resistance. This makes it an excellent option for use in harsh environments where exposure to moisture, chemicals, and other corrosive substances is a concern.
The MIL-DTL-83513 Micro-D Connectors product is capable of 500 mating cycles, ensuring a long lifespan and reliable performance over time. This is critical for applications where frequent connections and disconnections are required.

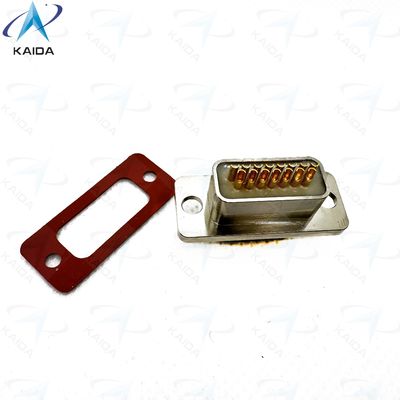

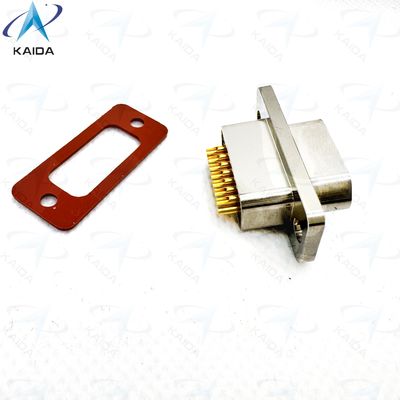

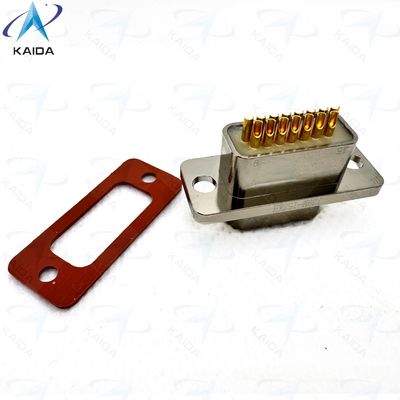

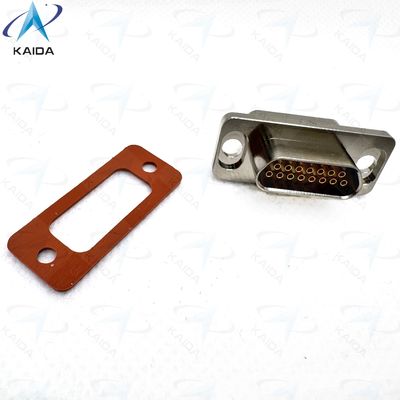

The part number for the MIL-DTL-83513 Micro-D Connectors product is J29M-15ZKH. This product is a seal type connector, which ensures a secure and reliable connection between components. The J29M designation indicates that this product is a Micro-D connector, which is a small form factor connector that is commonly used in aerospace, military, and other high-reliability applications.
| MIL Spec | J29M |
| Number of Contact | 15 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Over Nickel |
| Current Rating | 5A |
| Voltage Rating | 500V |
| Mating Cycles | 500 |
| Shell Material | Aluminium |
| Gender | Seal Receptacle |
| Operating Temperature | -55 To +125°C |
The connectors are finished with Nickel plating that enhances their durability and resistance to corrosion. The Nickel plating also provides them with a sleek and polished look that makes them an attractive choice for aesthetic applications. Additionally, the contact plating is Gold over Nickel, which enhances their conductivity and reduces contact resistance, ensuring reliable signal transmission.
The J29M-15ZKH connectors are Seal Receptacle gendered, which makes them suitable for applications that require a secure and sealed connection. The connectors feature 15 contacts, which allow them to handle a current rating of up to 5A, making them ideal for applications that require high power transmission. The contacts are made of Copper Alloy, which provides excellent electrical conductivity and is resistant to corrosion, ensuring a long lifespan of the connectors.
The Micro-D connectors can be used in a wide range of applications, including military, aerospace, medical, and industrial equipment. For example, they can be used for avionics and aerospace systems, where they can withstand harsh conditions and provide reliable connections in small spaces. They can also be used in medical devices, such as handheld monitors and diagnostic equipment, where they can provide high-performance connections in a compact design. Additionally, they can be used in industrial automation and robotics, where they can provide reliable connections in harsh environments.
In summary, KAIDA's J29M-15ZKH Micro-D Connectors are a reliable and durable choice for high-density, miniature interconnect applications. Their Nickel plating and Gold over Nickel contact plating enhance their durability and conductivity, while their Seal Receptacle gender and 15 contacts make them suitable for a wide range of applications that require high-performance connections in small spaces.
For more information on how to customize your J29M connectors, please contact Kaida's customer service team.
Our goal is to ensure that our customers have a positive experience with our products and have the support they need to succeed. Contact us for more information.
Product Packaging:
The MIL-DTL-83513 Micro-D Connectors are packaged in a standard plastic tray with a moisture barrier bag and desiccant to ensure the connectors are protected during transportation and storage. Each tray can hold up to 100 connectors.
Shipping:
The MIL-DTL-83513 Micro-D Connectors are shipped in a sturdy cardboard box with foam inserts to prevent any damage during transit. The box is clearly labeled with the product name, quantity, and any other relevant information. Shipping is available via standard or expedited methods, depending on customer preference and urgency.
Q: What is the brand name of this product?
A: The brand name of this product is KAIDA.
Q: What is the model number of this product?
A: The model number of this product is J29M-15ZKH.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What type of connectors are included in this product?
A: This product includes Micro-D connectors.
Q: What is the MIL-DTL-83513 specification for this product?
A: The MIL-DTL-83513 specification for this product is for Micro-D connectors used in electronic equipment.
