The MIL-DTL-83513 Micro-D Connectors have a mating cycle of 500, ensuring a long-lasting connection. With 51 contacts, these connectors are perfect for applications that require multiple connections. The part number for these connectors is MWDM2L-9PCBRR3-110, making it easy to order the correct product for your needs.

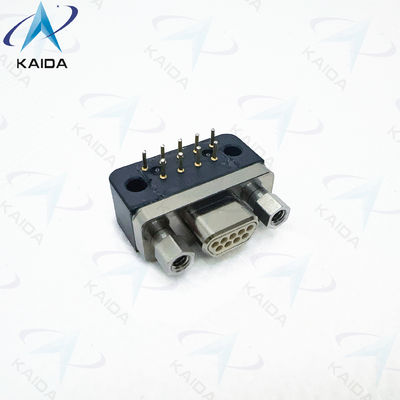

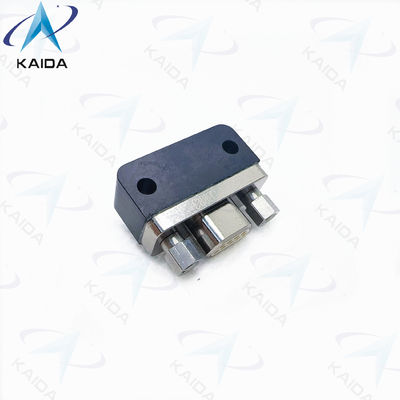

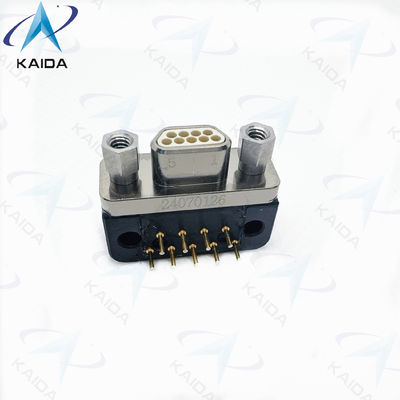

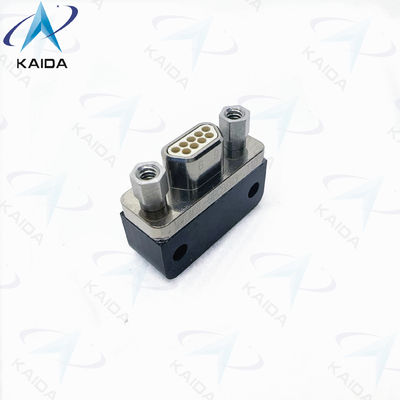

The connectors are rear mountable and are right angle thru-hole printed circuit board connectors. This feature allows for easy installation and ensures a secure fit. The shell material is made of aluminium, providing a sturdy and durable exterior that can withstand harsh environments.
The connectors are nickel-plated, ensuring that they are resistant to corrosion and wear. This feature ensures that the connectors will last longer and require less maintenance than other connectors on the market.
The MIL-DTL-83513 Micro-D Connectors are an excellent choice for anyone in need of a reliable and durable connector solution. With their high-quality design and features such as rear mountable, right angle thru-hole printed circuit board connectors and nickel plating, these connectors are sure to meet your needs.
| Voltage Rating | 500V |
| Contact Material | Copper Alloy |
| Number of Contact | 51 |
| Operating Temperature | -55 To +125°C |
| Mating Cycles | 500 |
| Connector Type | Right Angle Thru-Hole Printed Circuit Board Connectors |
| Shell Material | Aluminium |
| Gender | Rectangular Receptacle |
| MIL Spec | MWDM/Micro-D |
| Part Number | MWDM2L-9PCBRR3-110 |
| Nickel Plating | Yes |
| Rear Mountable | Yes |
| Nickel Plating | Yes |
The MWDM2L-9PCBRR3-110 connector is a Rectangular Receptacle with a current rating of up to 3A. It is designed to be solder-dipped for a secure and lasting connection. This makes it suitable for use in harsh environments where connectors are subjected to extreme temperatures, vibrations, and shock. The Solder-Dipped feature also ensures a strong and stable electrical connection, which is essential for applications where reliability is critical.
These Micro-D connectors are commonly used in applications such as military and aerospace, medical equipment, and industrial automation. Their compact size and high-performance capabilities make them the perfect choice for applications where space is limited. They have a low profile of only 0.225 inches, making them ideal for use in electronic devices where space is at a premium.
The MWDM2L-9PCBRR3-110 connectors have a mating cycle rating of up to 500 cycles. This means that they can be connected and disconnected up to 500 times without suffering any damage, making them suitable for applications where frequent mate and unmate cycles are required.
The contact plating of these connectors is gold over nickel. This provides excellent protection against corrosion and ensures a reliable and long-lasting connection. The gold plating also ensures low contact resistance, which is important for applications where signal integrity is critical.
In summary, the KAIDA MWDM2L-9PCBRR3-110 Micro-D connector is a highly reliable and versatile solution for a wide range of applications. Its compact size, high-performance capabilities, and MIL-DTL-83513 compliance make it the perfect choice for applications where reliability and performance are paramount.
Some of the key attributes of this product include its Micro-D MWDM-BR design, 9 pins, and reliable copper alloy contact material. The part number for this product is MWDM2L-9PCBRR3-110.
MIL-DTL-83513 Micro-D Connectors product Technical Support and Services:
- Technical data sheet and product specifications
- Custom design and engineering support
- Product testing and validation
- Connector modification and customization
- Product training and installation support
- Warranty support and product repair services
The MIL-DTL-83513 Micro-D Connectors are packaged according to industry standards to ensure safe and secure transit. Each connector is individually packaged in an anti-static bag and then placed in a sturdy cardboard box to prevent any damage during shipping.
For shipping, we use trusted carriers to ensure prompt and reliable delivery. The connectors are shipped directly from our warehouse and are typically delivered within 3-5 business days within the United States. International shipping is also available.
Q: What is the brand name of these micro-D connectors?
A: The brand name of these micro-D connectors is KAIDA.
Q: What is the model number of these micro-D connectors?
A: The model number of these micro-D connectors is MWDM2L-9PCBRR3-110.
Q: Where are these micro-D connectors manufactured?
A: These micro-D connectors are manufactured in China.
Q: What is the contact arrangement of these micro-D connectors?
A: The contact arrangement of these micro-D connectors is 9 pins.
Q: What is the shell style of these micro-D connectors?
A: The shell style of these micro-D connectors is PCB receptacle.
