19 Female Pins MIL-DTL-26482 Connector Electroless Nickel Finsh Mil Dtl 26482 Series Ii

Part Number:MS3470L24-19S

Product Description:

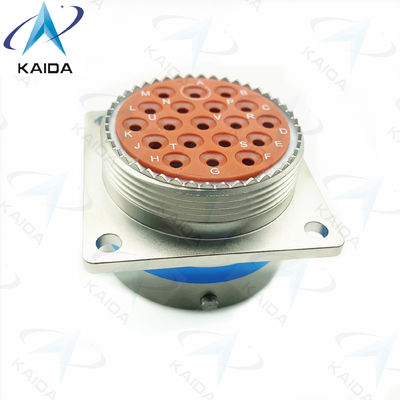

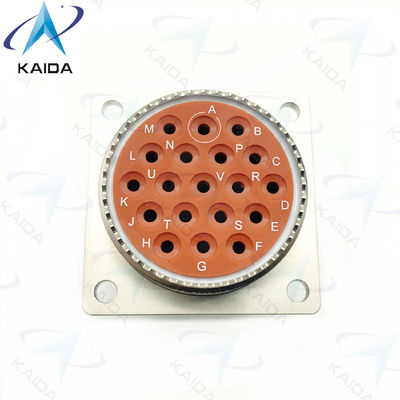

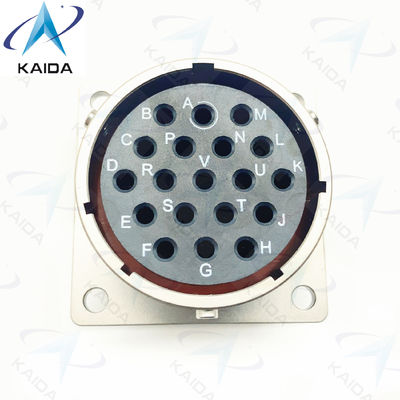

MIL-DTL-26482 Series Ⅱ is a high-performance interconnect solution, specifically designed for and aerospace applications. It is a cylindrical, shell size 24, MS3470L24-19S narrow flange receptacle, with a voltage rating of 500V. The receptacle is constructed with an electroless nickel shell finish and gold plated contacts, providing superior electrical and corrosion resistance. This MIL-DTL-26482 Series Ⅱ connector is an ideal choice for a wide variety of harsh environmental conditions. Its high-reliability and durability, combined with its superior electrical performance, make it the perfect solution for many and aerospace applications.

Features:

• Product Name: MIL-DTL-26482 Series Ⅱ
• Contact Finish: Gold
• Number of Contacts: 19
• Voltage Rating: 500V
• Current Rating: 7.5A
• Receptacle Type: Electroless Nickel Plated

Technical Parameters:

Applications:

KAIDA MIL-DTL-26482 Series Ⅱ, model MS3470L24-19S, is an Electroless Nickel, narrow flange receptacle connector, with a contact finish of Gold. It can operate in temperatures ranging from -55°C to +125°C. It is designed for use in harsh environmental conditions, such as aerospace, and industrial fields. It features a reliable crimp contact type, which provides superior electrical performance and enhanced grounding. It has a high resistance to corrosion, and is engineered to meet the requirements of MIL-DTL-26482 Series Ⅱ. The connector is highly durable and can withstand extreme temperatures and vibration. It is suitable for use in aerospace, , and industrial applications, and is ideal for high-performance applications.

Customization:

Brand Name: KAIDA
Model Number: MS3470L24-19S
Place of Origin: China
Gender: Narrow Flange Receptacle
Current Rating: 7.5A
Finsh: Electroless Nickel
Product Name: MIL-DTL-26482 Series Ⅱ
Number of Contacts: 19

KAIDA's MIL-DTL-26482 Series Ⅱ Receptacle is designed for maximum performance and durability. It features a Narrow Flange Receptacle, a 7.5A Current Rating, and Electroless Nickel Finsh. The MS3470L24-19S Receptacle has 19 contact points, making it perfect for a wide variety of applications.

Support and Services:

MIL-DTL-26482 Series Ⅱ offers comprehensive technical support and services. These include:

• 24/7 customer service and technical support via telephone and email
• On-site technical support and maintenance
• Training and educational programs
• Product installation and setup
• Software and hardware upgrades
• Product testing and certification
• Warranty service and repair

Packing and Shipping:

Packaging and Shipping for MIL-DTL-26482 Series Ⅱ should be done according to the following instructions:

• The parts should be packaged in accordance with MIL-PRF-16173E, Grade C, Type Ⅲ, Class 2.
• The parts should be properly labeled with the correct part numbers and serial numbers.
• The parts should be shipped in accordance with MIL-STD-2073-1C.
• The parts should be shipped in approved containers with proper cushioning material to prevent damage during shipment.

FAQ:

Q: What is MIL-DTL-26482 Series Ⅱ?

A: MIL-DTL-26482 Series Ⅱ is a high-quality waterproof electrical connector manufactured by KAIDA, with the model number MS3470L24-19S and origin from China.

Q: What is the application of MIL-DTL-26482 Series Ⅱ?

A: MIL-DTL-26482 Series Ⅱ is mainly used in the aerospace, , and industrial fields.

Q: What are the features of MIL-DTL-26482 Series Ⅱ?

A: MIL-DTL-26482 Series Ⅱ is a waterproof electrical connector with high temperature resistance, vibration resistance, and EMI/RFI shielding.

Q: What is the technical parameter of MIL-DTL-26482 Series Ⅱ?

A: The technical parameter of MIL-DTL-26482 Series Ⅱ includes temperature range from -55°C to +125°C, rated voltage up to 250V, rated current up to 15A, and test voltage up to 1000V.

Q: What is the warranty period of MIL-DTL-26482 Series Ⅱ?

A: MIL-DTL-26482 Series Ⅱ is manufactured with high-quality standard. Please contact KAIDA for more information regarding product warranty.
