SS Connector Shell Circular Electrical Connector 25 A Current Rating Offering Excellent Resistance to Corrosion and Wear

Product Description:

The Circular Electrical Connector from the YMG series is a high-performance, reliable solution designed to meet the demanding requirements of various industrial and electronic applications. This connector is engineered to provide exceptional durability, robust electrical performance, and ease of use, making it an ideal choice for environments where dependable connectivity is essential. With its advanced design and superior materials, the YMG series ensures consistent operation even under extreme conditions.

One of the standout features of this Circular Electrical Connector is its impressive operating temperature range, spanning from -55℃ to +175℃. This wide temperature tolerance allows the connector to function efficiently in harsh environments, including aerospace2 automotive, and heavy industrial applications where temperature fluctuations are common. The ability to withstand such extreme temperatures ensures that the connector maintains its integrity and performance without degradation over time.

The YMG series features a solder contact type, which guarantees a secure and stable electrical connection. Solder contacts are known for their excellent conductivity and resistance to vibration-induced loosening, making them suitable for applications where reliability is paramount. The solder contact design also simplifies the assembly process, providing a reliable interface between the connector and the wiring harness or PCB.

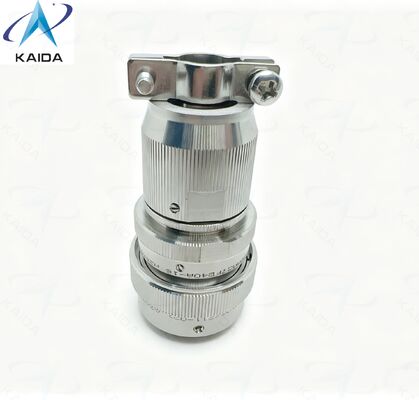

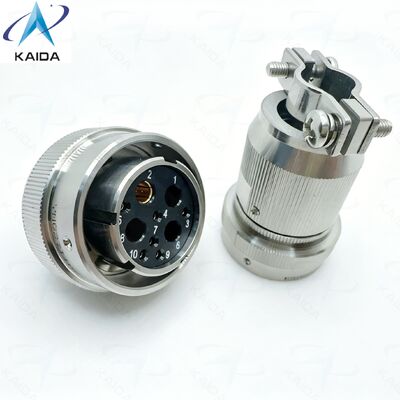

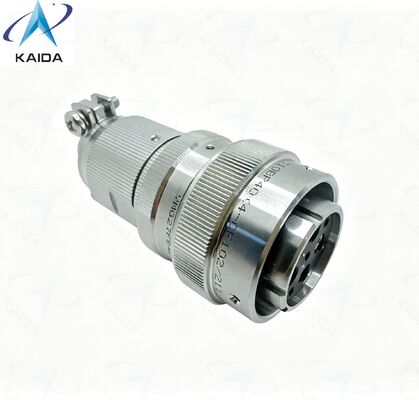

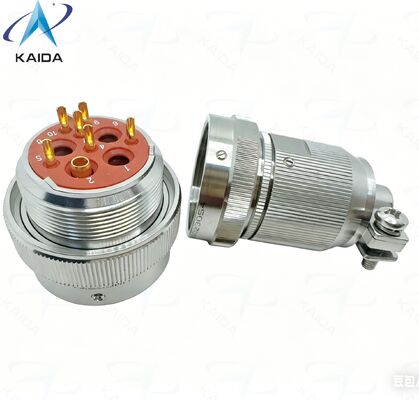

This Circular Electrical Connector is classified as a straight plug, specifically the YMG27T10BP40 model, which is designed for straightforward installation and connection. The straight plug configuration offers a compact and efficient connection solution, facilitating easy mating with corresponding receptacles. This design minimizes space requirements while ensuring a secure and stable connection, which is crucial in applications with limited installation space or where quick disconnection and reconnection may be necessary.

The current rating of this connector is 25 A, making it well-suited for medium-power applications. This current rating supports a wide range of electrical loads, ensuring that the connector can handle substantial power transmission without overheating or electrical failure. The 25 A rating highlights the connector’s capability to deliver reliable electrical performance, making it an excellent choice for power distribution systems, control units, and other electrical assemblies requiring efficient current flow.

The YMG series Circular Electrical Connector is designed with robust construction to withstand mechanical stresses, vibrations, and environmental factors. Its circular design not only provides a secure and stable mating interface but also enhances the connector’s resistance to dust, moisture, and other contaminants. This makes the connector suitable for use in outdoor or harsh industrial environments where protection against environmental ingress is critical.

Moreover, the YMG27T10BP40 straight plug connector is engineered for ease of use, featuring a design that facilitates quick and reliable mating and unmating. This is particularly beneficial in applications where maintenance or component replacement is frequent, reducing downtime and improving overall operational efficiency. The connector’s ergonomic design also ensures that technicians can handle and install it with minimal effort, enhancing the overall user experience.

In summary, the YMG series Circular Electrical Connector with solder contacts and a 25 A current rating offers a dependable and efficient solution for a wide array of electrical connectivity needs. Its ability to operate across a broad temperature range from -55℃ to +175℃, combined with the practicality of the straight plug design exemplified by the YMG27T10BP40 model, makes it a versatile and robust choice for industries requiring high-performance connectors. Whether used in aerospace automotive, or industrial settings, this connector ensures reliable electrical connections, durability, and ease of installation, standing out as a premium product in the realm of circular electrical connectors.

Features:

• Product Name: Circular Electrical Connector
• Type: Circular Connector
• Contact Type: Solder contacts
• Current Rating: 25 A
• Material: Stainless Steel (StSt)
• Operating Temperature Range: -55℃ to +175℃
• Part Number: YMG27T10BP40

Technical Parameters:

Applications:

The KAIDA YMG27T10BP40, part of the renowned YMG Series circular electrical connector lineup, is expertly designed to meet the rigorous demands of various industrial and commercial applications. Originating from China, this connector is crafted with high-quality stainless steel (StSt) for its shell, ensuring exceptional durability and corrosion resistance in even the harshest environments. Its operating temperature range from -55℃ to +175℃ makes it highly suitable for use in extreme temperature conditions, providing reliable performance where other connectors may fail.

The YMG Series circular electrical connector, featuring solder contacts, is specifically engineered to provide secure and stable electrical connections. The solder contact type offers excellent conductivity and mechanical strength, making it ideal for applications requiring long-lasting and maintenance-free connections. This makes the YMG27T10BP40 a preferred choice in aerospace, transportation, and heavy industrial machinery sectors, where dependable electrical connectivity is critical.

In practical application scenarios, the KAIDA YMG27T10BP40 connector excels in environments that involve vibration, moisture, and temperature fluctuations. For instance, it is extensively used in aerospace systems where components are exposed to extreme external conditions. Similarly, it serves as a reliable connector in communication devices and ground vehicles, where ruggedness and high performance are paramount. Additionally, its stainless steel shell and robust solder contacts make it suitable for outdoor installations and marine applications, where exposure to saltwater and humidity is common.

Beyond these heavy-duty applications, the YMG Series circular electrical connector is also widely employed in industrial automation, robotics, and instrumentation. Its ability to maintain stable connections under continuous movement and mechanical stress ensures smooth operation of automated systems and precise data transmission in instrumentation setups. With the KAIDA YMG27T10BP40, engineers and designers can confidently implement a connector that balances strength, reliability, and adaptability across a broad spectrum of demanding scenarios.

Customization:

KAIDA offers comprehensive product customization services for the Circular Electrical Connector model YMG27T10BP40, designed to meet diverse application requirements. This Circular Electrical Connector, part of the YMG series, features a durable StSt material construction and can operate reliably within a wide temperature range of -55℃ to +175℃. With 10 contacts and a current rating of 25 A, this connector ensures stable and efficient electrical performance. Our customization options include tailoring the Straight plug configuration to suit specific installation needs, optimizing contact arrangements, and adapting materials for enhanced durability. Manufactured in China, KAIDA’s customization services guarantee high-quality, reliable solutions for your Circular Electrical Connector requirements.

Support and Services:

Our Circular Electrical Connectors are designed to provide reliable and secure connections in a wide range of industrial and commercial applications. For technical support, please refer to the product manual for detailed installation instructions, wiring diagrams, and maintenance guidelines to ensure optimal performance and longevity of the connectors.

We offer comprehensive services including customization options to meet specific application requirements, quality assurance testing, and troubleshooting assistance. Our technical support team is equipped to help with product selection, compatibility inquiries, and resolving any issues that may arise during installation or operation.

Regular inspection and proper handling are recommended to maintain the integrity of the connectors. If replacement parts or accessories are needed, please consult the product catalog or authorized distributors to ensure authenticity and compatibility.

For enhanced support, we provide training sessions and technical documentation to assist engineers and technicians in understanding the features and benefits of our Circular Electrical Connectors, enabling efficient and safe usage.

Packing and Shipping:

Each Circular Electrical Connector is carefully packaged to ensure maximum protection during transit. The connector is first placed in an anti-static bag to prevent any electrostatic discharge damage. It is then secured within a custom-molded foam insert that cushions the product and prevents movement inside the box.

The foam insert and connector are enclosed in a sturdy, corrugated cardboard box designed to withstand rough handling. The box is labeled with handling instructions and product information for easy identification.

For bulk orders, connectors are individually packed and then grouped together in larger cartons with additional padding to maintain product integrity.

Shipping is carried out through reliable carriers with tracking options available. We ensure prompt dispatch and provide estimated delivery times based on the destination. Special care is taken for international shipments to comply with customs regulations and to avoid delays.

Overall, our packaging and shipping process prioritizes product safety, timely delivery, and customer satisfaction.

FAQ:

Q1: What is the brand and model number of this circular electrical connector?

A1: The circular electrical connector is from the brand KAIDA, and the model number is YMG27T10BP40.

Q2: Where is the KAIDA YMG27T10BP40 circular electrical connector manufactured?

A2: This connector is manufactured in China.

Q3: What type of applications is the KAIDA YMG27T10BP40 connector suitable for?

A3: The KAIDA YMG27T10BP40 is commonly used in industrial, automotive, and electronic applications requiring reliable circular connectors.

Q4: What materials are used in the construction of the KAIDA YMG27T10BP40 connector?

A4: The connector is constructed using durable metal and high-quality insulating materials to ensure long-lasting performance and protection against environmental factors.

Q5: How many pins does the KAIDA YMG27T10BP40 circular electrical connector have?

A5: The model number YMG27T10BP40 indicates that this connector has 10 pins.
