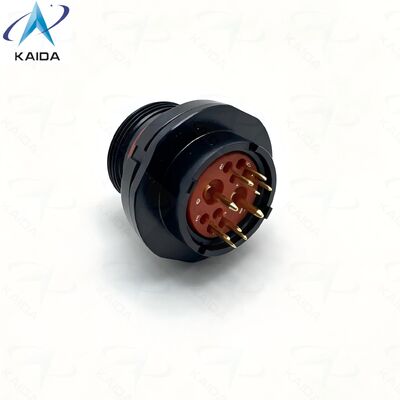

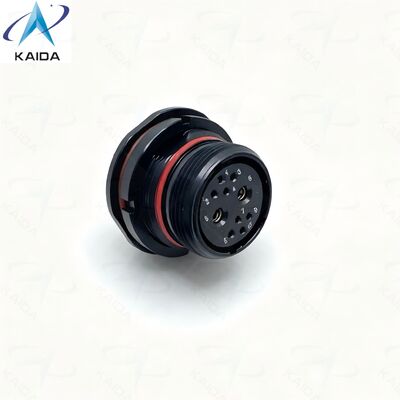

55C To 175C Circular Electrical Connector With 5 A Current Rating Offering Consistent and Durable Electrical Connections

Part number:2M801-011-07C10-202SA

Product Description:

The 2M801-011-07C10-202SA Circular Electrical Connector is a premium component from the renowned 2M Micro 38999 Connector Series, designed to meet the demanding requirements of modern electrical and electronic applications. This connector belongs to the esteemed 2M Micro 38999 Connector Series, which is widely recognized for its durability, reliability, and superior performance in harsh environments. The connector is engineered to provide secure and efficient connectivity, making it an ideal choice for industries.

One of the standout features of this circular connector is its configuration with 10 contacts. This number of contacts enables complex and multifaceted connections, allowing multiple circuits to be connected through a single interface. Each contact is designed for crimp termination, ensuring a robust and reliable electrical connection that is resistant to vibration and mechanical stress. Crimp contacts also offer ease of installation and maintenance, making the connector highly practical for field service and replacement scenarios.

The connector shell is constructed from high-quality aluminum, which provides an excellent balance between strength and weight. Aluminum ensures that the connector is rugged enough to withstand physical impacts while remaining lightweight, which is especially important in applications where weight reduction is critical, such as aerospace and defense. Additionally, the shell is finished with a black anodized coating, enhancing both its corrosion resistance and aesthetic appeal. The black anodized surface not only protects the connector from environmental factors like moisture and chemicals but also provides a sleek, professional look that complements high-tech equipment.

This particular model, identified by the part number 2M801-011-07C10-202SA, is a jam nut receptacle type connector. The jam nut receptacle design allows for secure mounting on panels or bulkheads, ensuring the connector remains firmly in place even in high-vibration or high-movement settings. The jam nut mechanism makes installation straightforward while providing a tight and reliable fit that prevents loosening over time. This mounting style is especially beneficial in applications where the connector must withstand mechanical stresses without compromising performance.

As part of the 2M Micro 38999 Connector Series, this circular electrical connector benefits from the extensive research, quality control, and engineering excellence that define the series. The 2M Micro 38999 Connector Series is known for its compatibility with a wide range of accessories and components, allowing for flexible system design and easy integration. The series adheres to rigorous industry standards, ensuring that each connector delivers consistent electrical performance, environmental resistance, and mechanical robustness.

In summary, the 2M801-011-07C10-202SA Circular Electrical Connector is a high-performance, reliable, and versatile component suitable for a variety of demanding applications. With its 10 crimp contacts, aluminum black anodized shell, and jam nut receptacle design, it offers a perfect combination of durability, ease of use, and superior electrical connectivity. Whether used in critical aerospace systems, rugged industrial environments, or advanced telecommunications setups, this connector from the 2M Micro 38999 Connector Series stands out as a dependable solution that meets and exceeds the highest standards of quality and performance.

Features:

• Product Name: Circular Electrical Connector
• Type: Jam Nut Receptacle
• Current Rating: 5 A
• Connector Type: Circular Electrical Connector
• Contact Type: Crimp
• Operating Temperature Range: -55℃ to +200℃
• Model Number: 2M801-011-07C10-202SA
• Finish: Black Anodized
• Series: 2M Micro 38999 Connector Series

Technical Parameters:

Applications:

The KAIDA Circular Electrical Connector, model number 2M801-011-07C10-202SA, is a highly reliable and durable component designed to meet various demanding industrial and commercial applications. Originating from China, this connector is part of the prestigious 2M Micro38999 Connector Series, renowned for its robust construction and superior performance. With a current rating of 5 A and featuring 10 contacts, this Jam Nut Receptacle type connector ensures stable and secure electrical connections in critical environments.

This Black Anodized Circular Electrical Connector is especially suitable for use in automation scenarios where reliability and resistance to harsh conditions are paramount. The black anodized finish not only enhances its corrosion resistance but also provides excellent wear protection, making it ideal for outdoor and rugged environments. Its compact and sturdy design allows it to be employed in tight spaces without compromising on connection integrity.

In manufacturing plants, the KAIDA 2M801-011-07C10-202SA connector facilitates seamless integration between control systems and machinery, ensuring efficient power and signal transmission. The Jam Nut Receptacle design allows for easy and secure installation on panels or equipment housings, providing a reliable interface that withstands vibration and mechanical stress. This makes it an excellent choice for heavy machinery, robotics, and automated assembly lines.

Additionally, this connector is widely used in telecommunications and data transmission systems where stable and interference-free connections are critical. The 10-contact configuration supports multi-signal transmission, allowing for flexible wiring arrangements in complex systems. Its black anodized surface also contributes to electromagnetic shielding, reducing signal loss and enhancing overall system performance.

For outdoor applications such as renewable energy systems, including solar and wind power installations, the KAIDA Circular Electrical Connector offers excellent protection against environmental factors like moisture, dust, and temperature fluctuations. Its durable construction ensures long service life, minimizing maintenance and replacement costs.

Overall, the KAIDA 2M801-011-07C10-202SA Black Anodized Circular Electrical Connector is an ideal solution for any scenario requiring a compact, reliable, and corrosion-resistant connector. Whether in aerospace, industrial automation, telecommunications, or renewable energy sectors, this connector delivers consistent performance and durability, making it a trusted choice for professionals worldwide.

Customization:

KAIDA offers comprehensive product customization services for the 2M801-011-07C10-202SA circular electrical connector, part of the 2M Micro38999 Connector Series. This Jam Nut Receptacle is designed with a Black Anodized finish, providing durability and corrosion resistance. With a current rating of 5 A and 10 contacts, this crimp contact type connector ensures reliable electrical connections. Manufactured in China, KAIDA’s customization options allow you to tailor the connector to meet your specific application requirements, ensuring optimal performance and compatibility.

Support and Services:

Our Circular Electrical Connectors are designed to provide reliable and secure connections in a variety of industrial and commercial applications. For technical support, please refer to the product datasheet and installation manual available on our website. These documents include detailed information on specifications, wiring diagrams, and installation instructions to ensure optimal performance.

If you require assistance with installation, troubleshooting, or maintenance, our technical support team is available to guide you through the process. We recommend verifying compatibility with your existing systems and ensuring proper mating of connectors to prevent damage or connection failures.

For servicing, it is important to follow the recommended cleaning and inspection procedures to maintain connector integrity. Use only approved tools and replacement parts to avoid voiding warranties or compromising safety. In case of any defects or performance issues, please consult the warranty terms and conditions for repair or replacement options.

We also offer customized solutions and additional services such as connector assembly, cable harnessing, and on-site technical support to meet specific project requirements. Please review the product support resources and FAQs section for common questions and answers related to the Circular Electrical Connector.

Packing and Shipping:

Each Circular Electrical Connector is carefully packaged to ensure maximum protection during transit. The connector is sealed in an anti-static bag to prevent any electrostatic damage, then cushioned with foam padding inside a sturdy cardboard box. This packaging method guarantees that the product arrives in perfect condition, free from scratches, dust, or moisture.

For shipping, we use reliable carriers that offer tracking and insurance options to ensure timely and safe delivery. Depending on the destination, shipping options include standard ground, expedited air, and express courier services. Bulk orders are securely palletized and shrink-wrapped to prevent movement and damage during shipment.

All shipments include a detailed packing list and product documentation for easy verification upon receipt. We also provide clear labels with handling instructions to assist in safe transport and storage of the Circular Electrical Connector.

FAQ:

Q1: What is the brand name of this circular electrical connector?

A1: The brand name of this circular electrical connector is KAIDA.

Q2: What is the model number of this product?

A2: The model number is 2M801-011-07C10-202SA.

Q3: Where is this circular electrical connector manufactured?

A3: This product is made in China.

Q4: What applications is this KAIDA circular electrical connector suitable for?

A4: The KAIDA 2M801-011-07C10-202SA circular electrical connector is suitable for industrial automation, machinery, and equipment requiring reliable electrical connections.

Q5: What type of connection does this circular electrical connector support?

A5: This circular electrical connector supports secure and durable multi-pin electrical connections, ensuring stable signal and power transmission.
