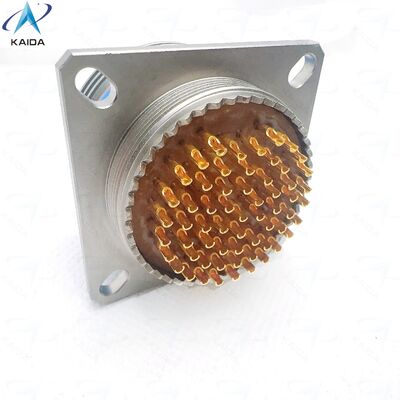

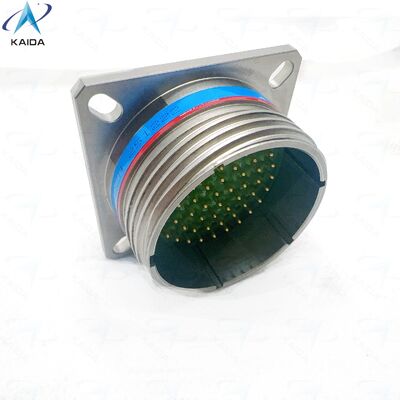

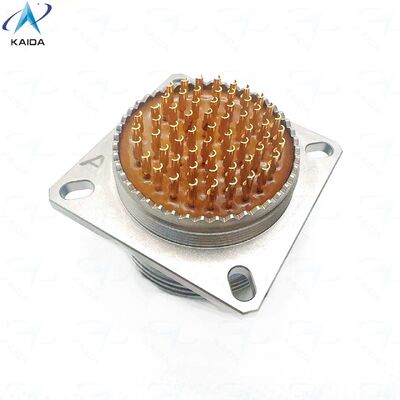

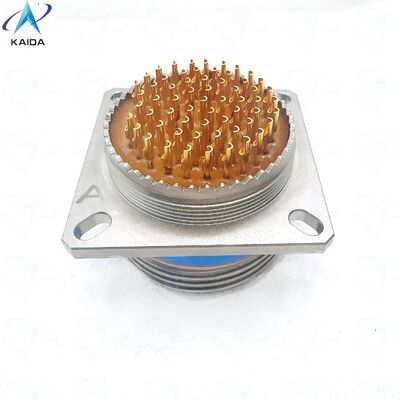

Solder Contact Type MIL DTL 38999 Circular Connector Providing Connection at Work Temperature Minus 65 to Plus 200 Degrees.Custom Silicone Seal.D38999/20FJ61PHN

Part number；D38999/20FJ61PHN

Product Description:

The Custom Connectors are engineered to meet the demanding requirements of modern electrical and electronic applications, offering unparalleled performance and reliability. Designed within the MIL-DTL-38999 category, these connectors are ideal for use in military, aerospace, and other high-stress environments where durability and precision are paramount. Their robust construction and advanced features make them a preferred choice for professionals who require dependable connectivity solutions.

One of the standout features of these Custom Connectors is the Square Flange Receptacle design. This design offers enhanced mechanical stability and ensures secure mounting, which is critical in applications subject to vibrations, shocks, and other mechanical stresses. The square flange provides a reliable and sturdy interface, preventing loosening or disconnection during operation, thereby maximizing system uptime and safety.

Furthermore, the connectors incorporate the SoSO contact type, which is known for its superior electrical performance and reliability. The SoSO contacts ensure optimal conductivity and minimize signal loss, making these connectors suitable for high-frequency and high-current applications. This contact type also contributes to the overall longevity of the connector by resisting wear and corrosion, even in harsh environments.

Temperature resilience is another critical attribute of these Custom Connectors. They are rated to operate effectively within a broad temperature range of -65°C to +125°C, with a work temperature capability extending from -65℃ up to +200℃. This wide temperature tolerance makes them suitable for use in extreme conditions, including arctic cold, desert heat, and high-temperature industrial settings. This capability ensures that the connectors maintain their structural integrity and electrical performance without degradation, even under thermal stress.

A key innovation integrated into these connectors is the Custom Silicone Seal. This seal provides exceptional environmental protection by preventing moisture, dust, and other contaminants from entering the connector interface. The silicone material is specially formulated to maintain flexibility and sealing efficiency across the entire operational temperature range. This custom sealing solution enhances the connector's resistance to environmental factors such as water ingress, corrosive substances, and particulate contamination, further extending the service life and reliability of the connection.

Being part of the MIL-DTL-38999 category, these Custom Connectors comply with stringent military specifications, ensuring they meet rigorous standards for performance, durability, and quality. MIL-DTL-38999 connectors are widely recognized for their high-density interconnect capabilities and are extensively used in applications requiring ruggedized and reliable connections. The Custom Connectors not only adhere to these specifications but also offer customizable options to meet specific application needs, providing flexibility without compromising on performance.

In summary, the Custom Connectors deliver a comprehensive solution for critical applications requiring high performance and reliability. Their MIL-DTL-38999 classification guarantees adherence to military-grade standards, while the Square Flange Receptacle design ensures mechanical robustness. The SoSO contact type provides superior electrical connectivity, and the Custom Silicone Seal offers unmatched environmental protection. Additionally, their impressive temperature ratings, capable of functioning from -65°C to +125°C under normal conditions and enduring work temperatures as extreme as -65℃ to +200℃, make them versatile for a wide range of challenging environments.

Whether deployed in aerospace systems, military hardware, or industrial machinery, these Custom Connectors ensure dependable, long-lasting performance. The integration of advanced sealing technology and robust mechanical design positions them as a top-tier choice for engineers and designers who demand excellence in connector solutions. By choosing these MIL-DTL-38999 Custom Connectors, users invest in a product that promises reliability, durability, and optimal functionality across the most demanding operational scenarios.

Features:

• Product Name: Custom Connectors
• Type: Square Flange Receptacle
• Category: MIL-DTL-38999
• Temperature Rating: -65°C to +125°C
• Work Temperature Range: -65℃ to +200℃
• Endurance: 500 Cycles
• Features solder contacts for reliable electrical connections
• Includes a custom silicone seal for enhanced environmental protection
• Designed as a square flange receptacle to ensure secure mounting and durability

Technical Parameters:

Applications:

The KAIDA Custom Connectors, model number D38999/20FJ61PHN, are engineered to meet the rigorous demands of various industrial and military applications. As a premium Square Flange Receptacle under the MIL-DTL-38999 category, these connectors are designed to deliver exceptional performance in harsh environments. Their robust construction, combined with a custom silicone seal, ensures superior protection against dust, moisture, and extreme temperature variations, making them ideal for use in aerospace, defense, and heavy machinery industries.

One of the primary application occasions for the KAIDA D38999/20FJ61PHN connectors is in aerospace systems, where reliability and durability are paramount. These connectors can withstand work temperatures ranging from -65°C to +200°C, accommodating the extreme thermal conditions often encountered in flight operations. The solder contacts provide secure and stable electrical connections, ensuring signal integrity and preventing failures in critical avionics and communication equipment.

In military vehicles and tactical equipment, the KAIDA custom connectors excel by maintaining performance under mechanical stress and environmental challenges. The custom silicone seal enhances sealing performance, offering protection against water ingress and contamination in rugged terrains and adverse weather conditions. This makes them suitable for ground vehicles, weapon systems, and portable communication devices requiring robust and maintenance-free connectors.

Industrial automation and robotics also benefit from the use of these custom connectors. Their square flange receptacle design allows for easy and secure mounting, while the temperature rating of -65°C to +125°C ensures stable operation in manufacturing plants and outdoor installations where temperature fluctuations are common. The solder contacts enable reliable electrical conductivity, crucial for controlling machinery and data transmission in automated systems.

Additionally, the KAIDA D38999/20FJ61PHN connectors are well-suited for marine applications, where exposure to saltwater and humidity demands connectors with exceptional sealing capabilities. The custom silicone seal effectively protects internal contacts, ensuring long-term durability and resistance to corrosion. These connectors are also used in telecommunications infrastructure, where stable and durable connections are required for uninterrupted service.

Overall, the KAIDA Custom Connectors with solder contacts and custom silicone seal provide versatile solutions across a wide range of application occasions and scenarios. Their compliance with MIL-DTL-38999 standards guarantees high-quality performance, making them the preferred choice for engineers and technicians seeking reliable, high-temperature resistant, and environmentally sealed connectors.

Customization:

The KAIDA Custom Connectors, model number D38999/20FJ61PHN, are designed to meet the rigorous standards of the MIL-DTL-38999 category. Manufactured in China, these connectors feature a durable Square Flange Receptacle type with a SoSO contact configuration, ensuring reliable performance in demanding environments.

With an endurance rating of 500 cycles and a temperature range from -65°C to +125°C, KAIDA’s MIL-DTL-38999 connectors provide exceptional durability and stability under extreme conditions. Our customization services allow tailoring these connectors to your specific requirements while maintaining compliance with the MIL-DTL-38999 standard.

Choose KAIDA for your MIL-DTL-38999 custom connector needs and benefit from high-quality, dependable connectors designed for military and aerospace applications. Contact us to discuss your customization options for the D38999/20FJ61PHN model and experience superior performance and reliability.

Support and Services:

Our Custom Connectors product is backed by comprehensive technical support and services to ensure seamless integration and optimal performance. Our expert team is available to assist you with design customization, installation guidance, troubleshooting, and maintenance advice. We provide detailed product documentation, application notes, and CAD files to facilitate your engineering process. Additionally, we offer testing and validation services to guarantee that custom connectors meet your specific requirements and industry standards. Trust our dedicated support to help you achieve reliable and efficient connectivity solutions tailored to your unique applications.

Packing and Shipping:

Each Custom Connector is carefully packaged to ensure maximum protection during transit. We use durable, high-quality materials including cushioned inserts and sturdy boxes to prevent damage.

All packages are clearly labeled with handling instructions and tracking information. Shipping options include standard, expedited, and overnight services to meet your delivery needs.

We work with trusted carriers to provide reliable and timely delivery. Once your order is shipped, you will receive a confirmation email with tracking details so you can monitor your package every step of the way.

If you have any special packaging or shipping requirements, please contact our customer service team and we will be happy to accommodate your request.

FAQ:

Q1: What brand manufactures the Custom Connectors with model number D38999/20FJ61PHN?

A1: The Custom Connectors with model number D38999/20FJ61PHN are manufactured by the brand KAIDA.

Q2: Where are KAIDA Custom Connectors D38999/20FJ61PHN made?

A2: These Custom Connectors are made in China.

Q3: Can the KAIDA D38999/20FJ61PHN connectors be customized according to specific requirements?

A3: Yes, KAIDA specializes in Custom Connectors and can tailor the D38999/20FJ61PHN model to meet your specific needs.

Q4: What applications are suitable for the KAIDA D38999/20FJ61PHN Custom Connectors?

A4: The KAIDA D38999/20FJ61PHN connectors are suitable for a wide range of applications including aerospace, military, industrial, and telecommunications.

Q5: How can I get technical support or product information for the KAIDA D38999/20FJ61PHN connector?

A5: You can contact KAIDA’s customer service or visit their official website to get detailed product information and technical support for the D38999/20FJ61PHN connector.
