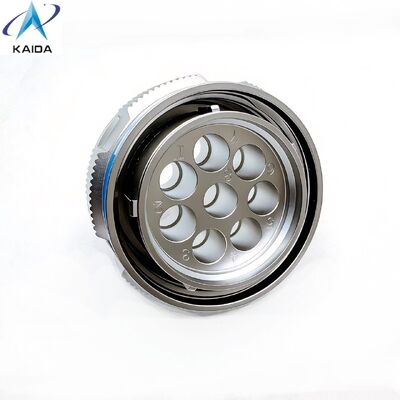

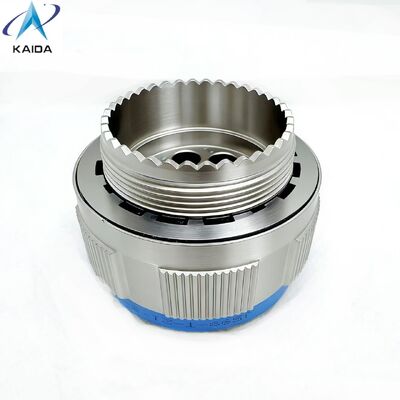

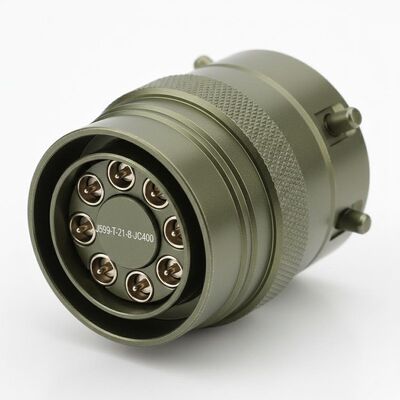

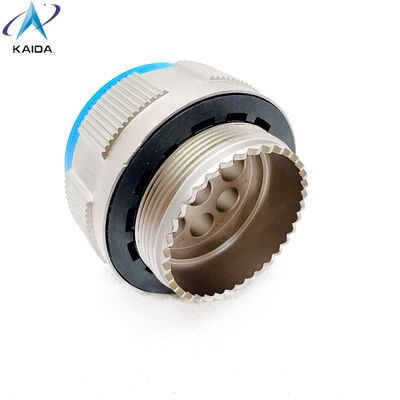

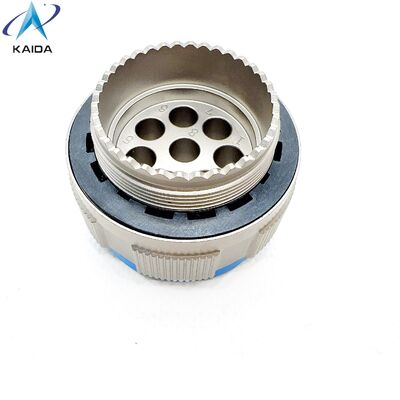

Aluminum MIL DTL 38999 Custom Circular Connector with 8 Pins Applicable For RF contacts.J599-T-21-8-JC400

Part number:J599-T-21-8-JC400

Product Description:

The Custom Connectors product, identified by the part number J599-T-21-8-JC400, represents a high-quality solution designed specifically for demanding applications requiring reliable and robust connectivity. Classified under the MIL-DTL-38999 category, this connector adheres to stringent military standards ensuring exceptional performance, durability, and environmental resistance. It is engineered primarily with aluminum, making it both lightweight and strong, suitable for use in harsh and challenging environments.

One of the defining features of this product is its contact type — RF contacts. These Assemblable RF contacts are precision-engineered to provide excellent electrical performance, ensuring minimal signal loss and superior impedance matching. This makes the Custom Connectors product an ideal choice for applications involving high-frequency signals where maintaining signal integrity is critical. Whether used in aerospace, defense, telecommunications, or industrial sectors, these RF contacts guarantee reliable connectivity under various operational conditions.

Durability and resistance to environmental factors are crucial for connectors used in extreme conditions. The J599-T-21-8-JC400 Custom Connector is designed to operate efficiently within a wide temperature range of -65℃ to +200℃. This broad work temperature range allows the connector to maintain its mechanical and electrical properties even in extreme cold or heat, making it highly versatile for deployment in environments such as aerospace, military vehicles, and outdoor communication systems.

The aluminum construction of this connector is enhanced through an Electroless Nickel plating process. Electroless Nickel plating is a critical aspect of the product’s design, providing excellent corrosion resistance, wear resistance, and improved solderability. This plating ensures that the connector maintains long-term reliability and performance, even when exposed to moisture, chemicals, or abrasive conditions. Additionally, the Electroless Nickel coating contributes to the connector’s overall conductivity and stability, which is essential for maintaining consistent electrical contact over time.

Another important element of the J599-T-21-8-JC400 Custom Connector is its solder contacts. These solder contacts are designed to facilitate secure and reliable soldering during the assembly process, ensuring strong mechanical and electrical connections between the connector and the wiring or PCB. The solder contacts are precisely manufactured to accommodate various soldering techniques, offering flexibility for different manufacturing environments and assembly requirements. This feature simplifies installation and maintenance, reducing downtime and enhancing overall system reliability.

As an Assemblable RF contacts solution, this product allows for modular and customizable configurations. This adaptability means that the connector can be tailored to specific application needs, providing engineers and designers with the flexibility to create optimal connectivity solutions without compromising on performance or durability. The assemblable nature also facilitates easier repairs and upgrades, extending the service life of the connected equipment.

In summary, the Custom Connectors product J599-T-21-8-JC400 is a highly reliable, MIL-DTL-38999 standard-compliant connector that combines the advantages of aluminum construction, Electroless Nickel plating, and solder contacts to deliver outstanding electrical performance and mechanical robustness. Its Assemblable RF contacts ensure superior signal integrity and ease of integration, while its extensive work temperature range makes it suitable for the most challenging environments. This connector is an excellent choice for professionals seeking dependable, high-performance connectivity solutions in aerospace, defense, telecommunications, and other critical fields.

Features:

• Product Name: Custom Connectors
• Category: MIL-DTL-38999
• Type: Aluminum
• Temperature Rating: -65°C to +125°C
• Work Temperature: -65℃ to +200℃
• Contact Type: RF Contacts
• Features Electroless Nickel plating for enhanced corrosion resistance
• Designed to meet MIL-DTL-38999 standards for military and aerospace applications
• Custom Connectors engineered for high performance in extreme temperature environments

Technical Parameters:

Applications:

The KAIDA Custom Connectors, model number J599-T-21-8-JC400, are designed to meet the rigorous demands of various high-performance applications. Originating from China, these connectors fall under the MIL-DTL-38999 category, renowned for their robust construction and reliability in harsh environments. Featuring RF contacts, these connectors ensure superior signal integrity and are ideal for applications requiring high-frequency transmission.

One of the primary application occasions for the KAIDA Custom Connectors is in the aerospace and defense industries. The MIL-DTL-38999 standard guarantees that these connectors can withstand extreme conditions such as high vibration, temperature fluctuations, and exposure to contaminants, making them perfect for military aircraft, ground vehicles, and communication systems. The aluminum body provides a lightweight yet durable housing, enhancing the overall endurance of the connector up to 500 mating cycles, which is essential for frequent assembly and disassembly in the field.

In addition to defense, these Custom Connectors with assemblable RF contacts are widely used in telecommunications infrastructure. Their ability to maintain signal clarity and reduce interference makes them suitable for base stations, satellite communication systems, and radar installations. The modular nature of these connectors allows for easy customization and scalability, catering to complex network architectures and evolving technological requirements.

Moreover, the industrial sector benefits significantly from KAIDA’s J599-T-21-8-JC400 connectors. They are employed in automation systems, robotics, and heavy machinery where reliable electrical connections are critical for operational safety and efficiency. The robust aluminum construction and adherence to MIL-DTL-38999 standards ensure these connectors can endure mechanical stress and environmental challenges over extended periods.

Finally, these Custom Connectors are also applicable in the medical equipment field, where precision and reliability are paramount. Assemblable RF contacts facilitate quick maintenance and upgrades without compromising performance. The versatility and endurance of KAIDA’s connectors make them suitable for diagnostic devices, imaging systems, and patient monitoring equipment.

In summary, the KAIDA Custom Connectors model J599-T-21-8-JC400 offer exceptional performance across a broad range of scenarios, including aerospace, defense, telecommunications, industrial automation, and medical applications. Their MIL-DTL-38999 compliance, aluminum construction, and assemblable RF contacts provide a reliable, durable, and versatile solution for demanding connectivity needs.

Customization:

KAIDA offers Custom Connectors model number J599-T-21-8-JC400, designed to meet the stringent requirements of MIL-DTL-38999 standards. Manufactured in China, this aluminum connector features RF Contacts, ensuring reliable performance in demanding applications. With a temperature rating from -65°C to +125°C and an endurance of 500 cycles, the J599-T-21-8-JC400 is ideal for military and industrial uses. Our Custom Connectors provide durability and precision, fully compliant with MIL-DTL-38999 specifications to guarantee superior connectivity and long-lasting service.

Support and Services:

Our Custom Connectors product is supported by a dedicated technical support team committed to providing expert assistance throughout the product lifecycle. Whether you require help with design specifications, installation guidance, or troubleshooting, our specialists are available to ensure your custom connector solutions meet your exact requirements.

We offer comprehensive services including custom design consultation, prototype development, testing, and validation to guarantee optimal performance and reliability. Our engineering team works closely with you to tailor connectors that seamlessly integrate with your applications.

Additionally, we provide detailed documentation, technical resources, and application notes to assist in the effective deployment and maintenance of your custom connectors. Our ongoing support ensures that any issues are promptly addressed to minimize downtime and maximize productivity.

Choose our Custom Connectors product for reliable, high-quality connectivity solutions backed by professional technical support and personalized services designed to meet your unique needs.

Packing and Shipping:

Our Custom Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped and placed in a sturdy, cushioned box to prevent any damage.

We use high-quality packing materials that safeguard the product from moisture, dust, and impact. The packaging is designed to be compact yet secure, minimizing shipping costs while maintaining product integrity.

Shipping is handled through reliable carriers with tracking options available, ensuring timely and safe delivery. Customers receive a confirmation email with tracking details once their order is dispatched.

For bulk orders, we offer customized packaging solutions to meet specific requirements, including branded boxes and special handling instructions.

Our commitment is to deliver your Custom Connectors in perfect condition, ready for immediate use.

FAQ:

Q1: What is the brand name of the Custom Connectors?

A1: The brand name of the Custom Connectors is KAIDA.

Q2: What is the model number of this Custom Connector?

A2: The model number is J599-T-21-8-JC400.

Q3: Where are these Custom Connectors manufactured?

A3: These Custom Connectors are made in China.

Q4: Can the Custom Connectors be customized to specific requirements?

A4: Yes, KAIDA offers customization options for the J599-T-21-8-JC400 model to meet your specific needs.

Q5: What applications are suitable for the KAIDA Custom Connectors?

A5: The KAIDA J599-T-21-8-JC400 Custom Connectors are suitable for various industrial and electronic applications requiring reliable and secure connections.
