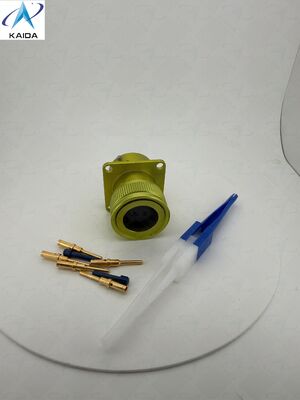

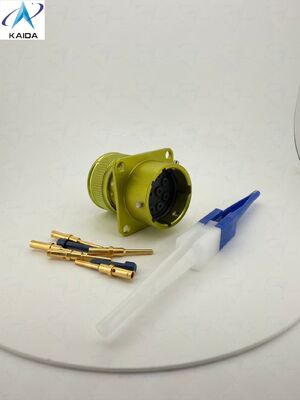

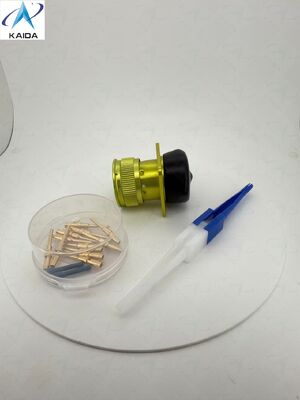

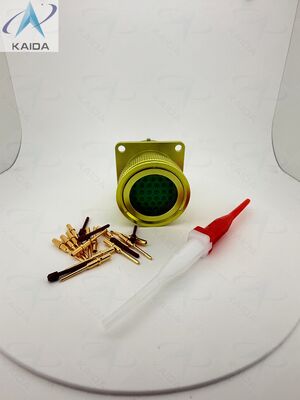

Bayonet Coupling ZH23-10/22P-6-B.Circular Electrical Connector ZH23 series substitutes of Russian SNTs23.Band adaptor

Part number:ZH23-10/22P-6-B

Product Description:

The Russian Connectors, specifically the model ZH23-10/22P-6-B, represent a robust and reliable solution for numerous industrial and many applications requiring secure and durable electrical connections. Crafted with precision and engineered to meet stringent performance standards, these connectors are designed to provide exceptional functionality in demanding environments.

One of the standout features of the ZH23-10/22P-6-B Russian Connectors is their high-quality aluminum construction. Aluminum is renowned for its excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity, making it an ideal material for connectors that must endure harsh conditions. The use of aluminum ensures that these connectors are both lightweight and resilient, providing long-lasting durability without compromising ease of installation or handling.

The contact type used in the ZH23-10/22P-6-B Russian Connectors is crimp, which offers a reliable and secure electrical connection. Crimp contacts are favored in professional-grade connectors because they create a gas-tight seal between the wire and contact, minimizing the risk of oxidation and electrical resistance over time. This ensures consistent signal integrity and power transmission, which is critical in applications where performance and reliability cannot be compromised.

Another important characteristic of the ZH23-10/22P-6-B is its bayonet coupling mechanism. The bayonet coupling system is well-known for its simplicity and effectiveness, allowing for quick and secure mating and unmating of connectors. This type of coupling provides a positive lock that prevents accidental disconnection, which is particularly important in environments subject to vibration or mechanical stress. The bayonet coupling also facilitates easy maintenance and replacement, reducing downtime and increasing operational efficiency.

Operating within a wide temperature range from -55℃ to +175℃, the ZH23-10/22P-6-B Russian Connectors are well-suited for use in extreme environmental conditions. This broad operating temperature range ensures that the connectors maintain their mechanical and electrical properties in both cold climates and high-temperature scenarios. Such versatility makes these connectors ideal for aerospace, automotive, and industrial applications where temperature fluctuations are common and reliability is paramount.

The part number ZH23-10/22P-6-B is a key identifier for this specific model of Russian Connectors, allowing users to easily specify and source the correct connector for their needs. The precision engineering behind this part number guarantees compatibility with a range of equipment and systems designed to accommodate these connectors, making it a versatile choice for various technical requirements.

In summary, the Russian Connectors model ZH23-10/22P-6-B combine durable aluminum material, reliable crimp contact type, secure bayonet coupling, and an extensive operating temperature range to deliver a high-performance connector solution. These features collectively ensure that the ZH23-10/22P-6-B connectors can withstand challenging environments while maintaining optimal electrical performance. Whether used in demanding industrial settings, hardware, or specialized electronic systems, these connectors provide dependable interconnection capabilities that users can trust.

Choosing the ZH23-10/22P-6-B Russian Connectors means investing in quality, durability, and reliability. Their design and material selection reflect a commitment to excellence, making them an excellent choice for professionals seeking robust connectors capable of performing under extreme conditions. The ZH23-10/22P-6-B is not just a connector; it is a vital component engineered to ensure the seamless operation and longevity of critical systems.

Features:

• Product Name: Russian Connectors
• Series: ZH23 Series
• Operating Temperature: -55℃ to +175℃
• Coupling Type: Bayonet
• Material: Aluminum
• Part Number: ZH23-10/22P-6-B
• Number of Contacts: 10
• Durable and reliable Russian Connectors designed for harsh environments

Technical Parameters:

Applications:

The KAIDA ZH23-10/22P-6-B Russian Connectors are designed for a wide range of demanding application occasions and scenarios where reliability and durability are paramount. These connectors, part of the ZH23 Series Russian Standard Connector lineup, are specifically engineered to meet rigorous performance standards, making them ideal for use in harsh environments. Their operating temperature range from -55℃ to +175℃ allows them to function effectively in extreme cold and heat conditions, which is essential for industries such as aerospace and heavy machinery.

One of the primary application occasions for the ZH23-10/22P-6-B is in equipment. The bayonet connection ensures a secure and quick coupling mechanism, which is crucial for rapid assembly and disassembly in field operations. This connector’s robust design with 10 contacts supports complex electrical systems requiring reliable multi-pin connections. Its ability to maintain stable performance under vibrations, shocks, and extreme temperatures makes it a trusted choice for communication devices,  systems, and tactical vehicles.

In industrial automation and robotics, the KAIDA ZH23-10/22P-6-B Russian Connectors facilitate seamless and secure electrical connections that withstand the challenging conditions of factory floors. The bayonet connection mechanism allows for easy maintenance and replacement without compromising the integrity of the connection, minimizing downtime in production lines. These connectors are also suitable for use in transportation sectors, including railway systems and heavy-duty trucks, where stable connections are necessary to ensure safety and operational efficiency.

Furthermore, the ZH23-10/22P-6-B connectors find application in the aerospace industry, where their high operating temperature tolerance and reliable bayonet coupling are vital for avionics and control systems. The connectors’ design complies with Russian standards, making them particularly suitable for equipment intended for markets or projects adhering to these specifications.

Overall, KAIDA’s ZH23-10/22P-6-B Russian Connectors provide a versatile and dependable solution for a variety of scenarios that demand high-performance connectors capable of withstanding extreme environmental conditions. Their bayonet connection, 10-contact configuration, and broad temperature range make them an excellent choice for professionals seeking durable and efficient connector solutions.

Customization:

KAIDA offers product customization services for the Russian Connectors, specifically the ZH23-10/22P-6-B model. These connectors, part of the ZH23 Series Russian Standard Connector line, feature a crimp contact type with 10 contacts, ensuring reliable electrical connections. Manufactured in China, the connectors are designed to operate within a wide temperature range of -55℃ to +175℃. The ZH23-10/22P-6-B model includes a bayonet coupling mechanism for secure and easy mating. Additionally, KAIDA provides options for anodized yellow plating to enhance corrosion resistance and durability, meeting the specific needs of various industrial applications.

Support and Services:

Our Russian Connectors product is designed to provide reliable and secure electrical connections for a wide range of applications. To ensure optimal performance, it is important to follow proper installation and maintenance procedures.

For installation, please refer to the product manual for detailed instructions on connector assembly, wire preparation, and mating procedures. Proper torque specifications must be followed to guarantee a secure connection and prevent damage to the connector components.

Regular inspection and maintenance are recommended to ensure the connectors remain in good working condition. Check for signs of wear, corrosion, or damage, and replace any components as necessary to maintain safety and functionality.

If you encounter any issues with the Russian Connectors product, consult the troubleshooting section in the user guide for common problems and solutions. For further technical support, our team of experts is available to assist with product inquiries, installation guidance, and troubleshooting assistance.

We also offer a range of services including product customization, testing, and certification to meet your specific application requirements. Please ensure that all maintenance and repairs are performed by qualified personnel using authorized replacement parts to preserve product integrity and warranty coverage.

Your satisfaction and safety are our priorities, and we are committed to providing high-quality support and services to ensure the best experience with our Russian Connectors products.

Packing and Shipping:

Each Russian Connector is carefully packaged to ensure maximum protection during transit. The connectors are individually wrapped in anti-static bags and cushioned with foam inserts inside a sturdy cardboard box to prevent any damage. Our packaging is designed to maintain the integrity and quality of the product until it reaches your hands.

We offer reliable shipping options worldwide with tracking available for all orders. Orders are processed within 1-2 business days, and delivery times vary depending on the destination. We work with trusted courier services to ensure timely and safe delivery of your Russian Connectors.

If you have any special shipping requests or require expedited delivery, please contact our customer service team, and we will be happy to assist you.

FAQ:

Q1: What brand manufactures the Russian Connectors model ZH23-10/22P-6-B?

A1: The Russian Connectors model ZH23-10/22P-6-B is manufactured by the brand KAIDA.

Q2: Where are the KAIDA Russian Connectors ZH23-10/22P-6-B produced?

A2: These connectors are produced in China.

Q3: What type of product is the KAIDA ZH23-10/22P-6-B?

A3: The KAIDA ZH23-10/22P-6-B is a type of Russian Connector used for electrical connections.

Q4: Can the KAIDA ZH23-10/22P-6-B Russian Connectors be used for industrial applications?

A4: Yes, these connectors are designed for reliable performance in various industrial applications.

Q5: What is the model number of the Russian Connector produced by KAIDA?

A5: The model number is ZH23-10/22P-6-B.
