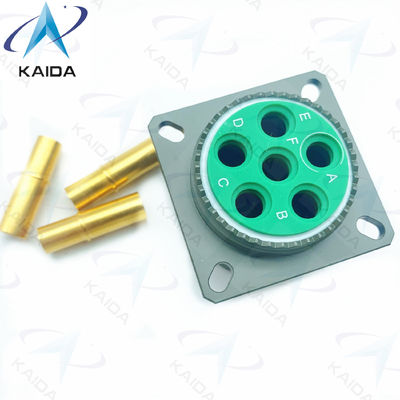

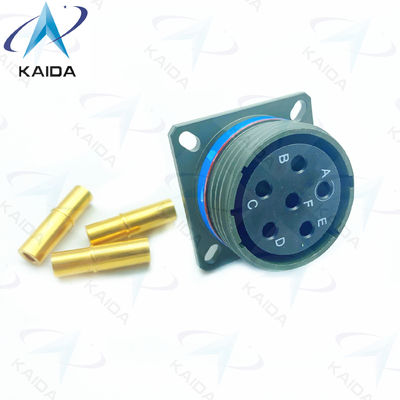

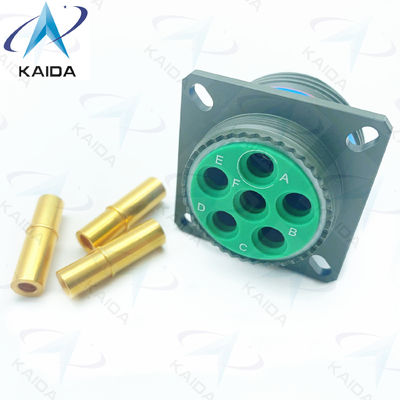

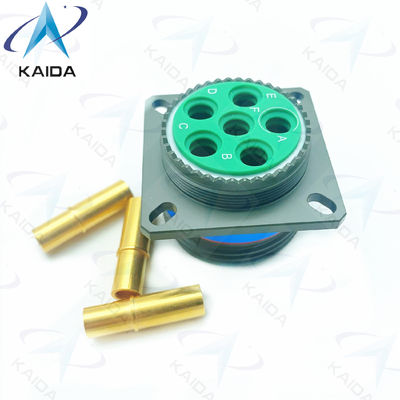

The MIL-DTL-38999 Series III connector features an olive green cadmium shell finish that provides excellent corrosion resistance and durability, making it suitable for use in harsh environments. Its voltage rating of 500V makes it ideal for high-power applications, while its copper alloy contact material ensures reliable electrical performance and low contact resistance.
The contact type of the MIL-DTL-38999 Series III connector is crimp, which allows for easy and secure wire termination. This type of contact is ideal for applications that require a high degree of reliability and durability, such as military and aerospace systems. In addition, the contact finish is gold, which provides excellent corrosion resistance and ensures reliable electrical performance over a wide range of temperatures and operating conditions.
The MIL-DTL-38999 Series III connector is designed to meet the requirements of the Detailed-38999 Series III specification, which specifies the design, performance, and testing requirements for connectors used in military and aerospace applications. This specification sets stringent requirements for the connector's mechanical, electrical, and environmental performance, ensuring that it can withstand the harsh conditions of military and aerospace environments. The MIL-DTL-38999 Series III connector is also tested to the MIL-STD-810 standard, which sets requirements for environmental testing, including temperature, humidity, vibration, and shock.
In summary, the MIL-DTL-38999 Series III connector is a high-performance circular connector designed for use in harsh environments, particularly in military and aerospace applications. Its olive green cadmium shell finish provides excellent corrosion resistance and durability, while its voltage rating of 500V makes it ideal for high-power applications. Its crimp contact type ensures easy and secure wire termination, while its gold contact finish provides excellent corrosion resistance and reliable electrical performance. The MIL-DTL-38999 Series III connector is built to meet the stringent requirements of the Military Detail 38999 Series III specification, ensuring that it can withstand the harsh conditions of military and aerospace environments.
The MIL-DTL-38999 Series 3, also known as Military-Detail 38999 Series Ⅲ, Military Detailed-38999 Series Ⅲ, or Military Detail-38999 Series Ⅲ, features a threaded coupling type and gold contact finish. It is designed with an olive green cadmium shell finish, allowing it to operate in temperatures ranging from -55°C to +125°C. Additionally, it has a voltage rating of 500V, making it a reliable choice for a variety of applications.
| Coupling Type | Threaded |
| Number of Contacts | 6 |
| Contact Finish | Gold |
| Shell Size | 23-06 |
| Voltage Rating | 500V |
| Contact Material | Copper Alloy |
| Connector Type | Receptacle |
| Shell Finish | Olive Green Cadmium |
| Contact Type | Crimp |
| Operating Temperature | -55°C To +125°C |
One of the main applications for the MIL-DTL-38999 Series 3 connector is in military and aerospace systems. The connector is designed to meet the stringent requirements of the Military Detailed-38999 Series Ⅲ specification, which ensures high reliability and performance in harsh environments. The 6 gold-plated contacts are ideal for transmitting power, and the connector can be used with 8# power contacts to ensure a secure and stable connection.
The MIL-DTL-38999 Series 3 connector is also suitable for use in a range of industrial applications. Its robust design and threaded coupling ensure that it can withstand vibration and shock, making it ideal for use in heavy machinery and equipment. The gold-plated contacts are resistant to corrosion, ensuring that the connector maintains its performance over time.
In addition to military and industrial applications, the MIL-DTL-38999 Series 3 connector is also used in the medical industry. Its high reliability and performance make it a popular choice for medical devices and equipment. The threaded coupling ensures a secure connection, while the gold-plated contacts ensure high transmission quality.
Overall, the MIL-DTL-38999 Series 3 connector from KAIDA is a versatile and reliable connector that can be used in a range of applications. Its threaded receptacle design and gold-plated contacts make it ideal for use in military, industrial, and medical applications where reliability and performance are critical.
Our customization services ensure that the MIL-DTL-38999 Series 3 connector meets your specific requirements. Whether you need modifications to the shell size, coupling type, contact type, or any other aspect of the connector, our team of experts can work with you to create a tailored product that meets your needs.
As a leading manufacturer of military connectors, KAIDA understands the importance of precision and reliability in military applications. That's why we offer detailed-38999 Series Ⅲ connector customization services that meet the highest standards of quality and durability.
The MIL-DTL-38999 Series 3 product technical support and services include:
- Product selection and specification assistance
- Product customization to meet specific requirements
- Technical documentation and product literature
- Product installation guidance and support
- Product testing and certification
- Product repair and maintenance services
- Product upgrade and retrofit services
- Technical training and education programs
Product Packaging:
Shipping:
Q: What is the brand name of this product?
A: The brand name of this product is KAIDA.
Q: What is the model number of this product?
A: The model number of this product is D38999/20WH06SA.
Q: Where is this product made?
A: This product is made in China.
Q: What is the size of this product?
A: The size of this product is in accordance with the MIL-DTL-38999 Series 3 specifications.
Q: What is the material of this product?
A: The material of this product is in accordance with the MIL-DTL-38999 Series 3 specifications.
D38999 Series 3 Datasheet.pdf
