The MIL-DTL-38999 Series 1 is a high-performance, circular connector designed for use in demanding military and aerospace applications. This connector is designed to meet the rigorous requirements of the MIL-DTL-38999 specification, ensuring high reliability and superior performance in the most challenging environments.
With a shell size of 23 and 100 contacts, the MIL-DTL-38999 Series 1 is a versatile connector that can be used in a variety of applications. Its compact size and light weight make it ideal for use in space-constrained environments, while its robust construction and high contact density allow for efficient, high-speed signal transmission.

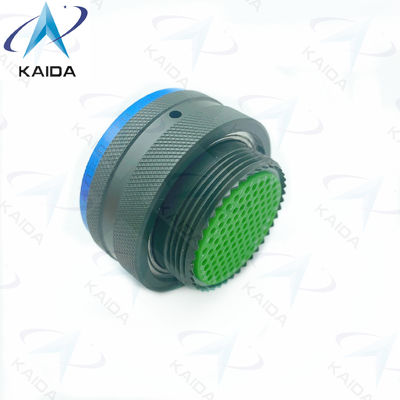

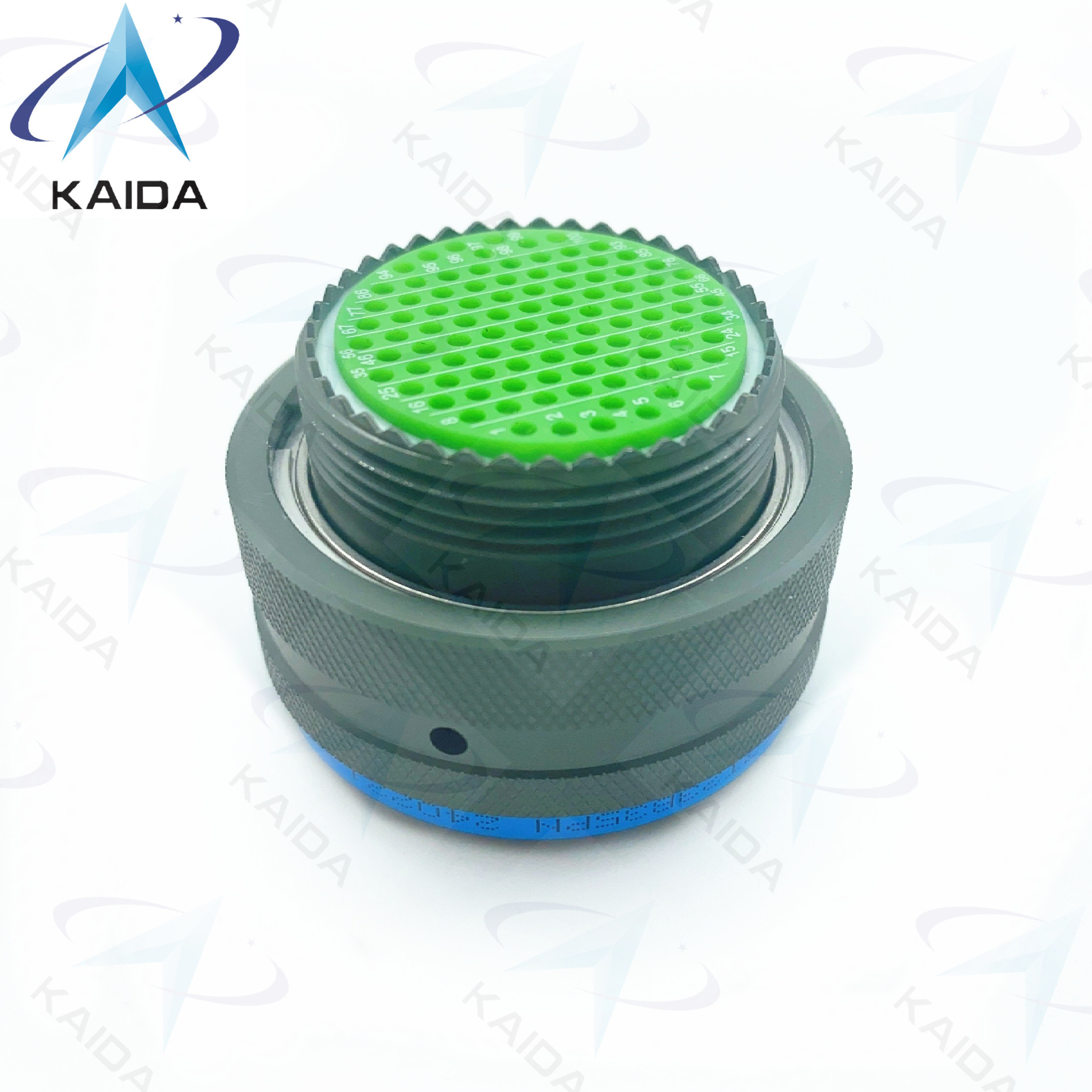

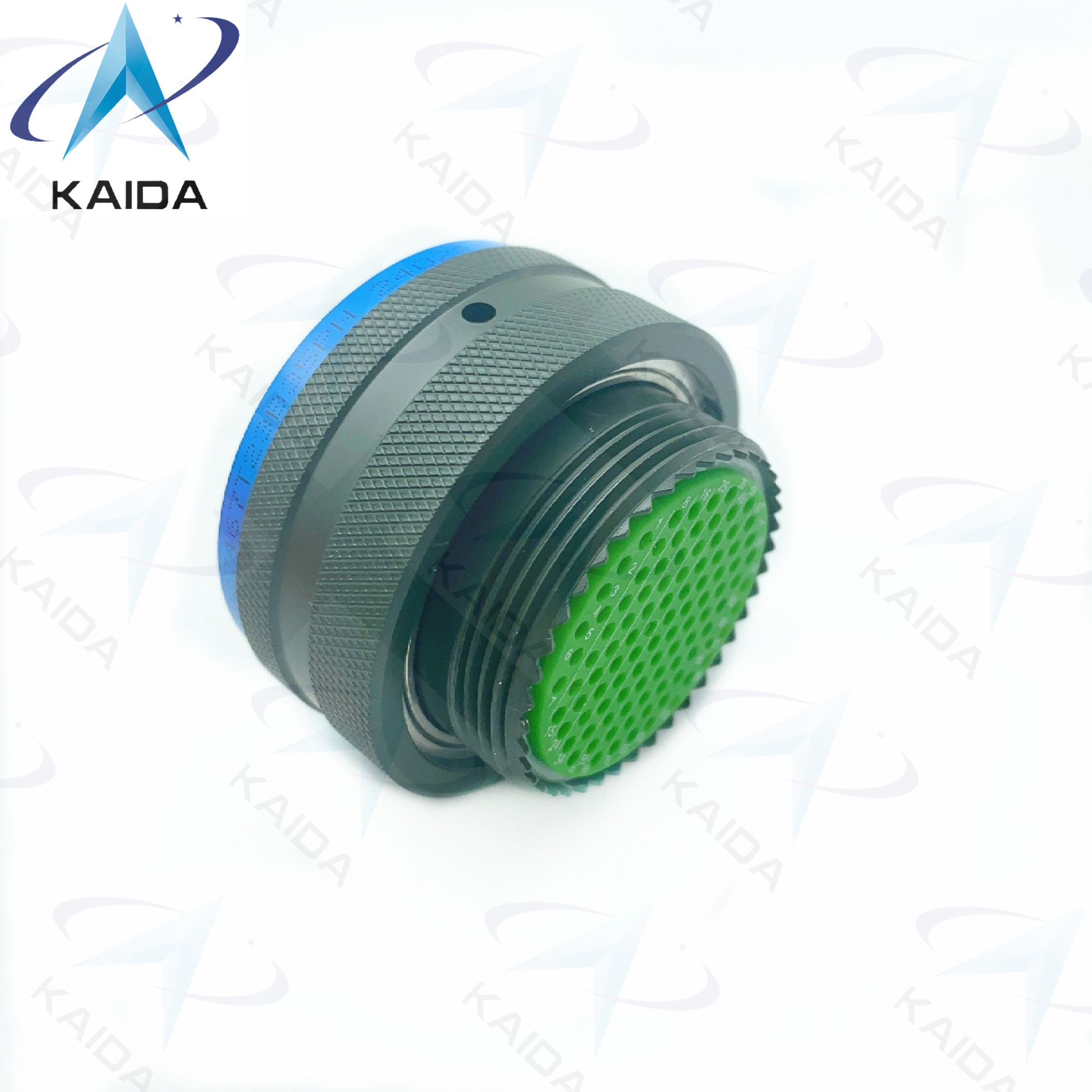

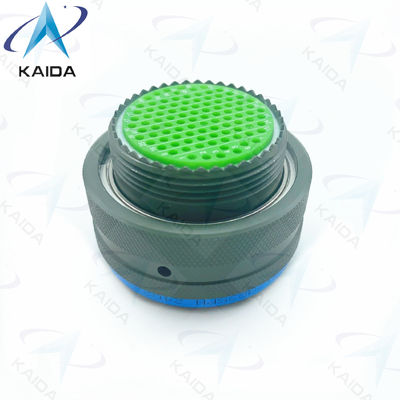

The connector features a straight plug design, known as MS27467, which allows for easy and quick installation. Its olive green cadmium shell finish not only provides a sleek and professional appearance, but also offers excellent corrosion resistance, ensuring the connector can withstand harsh environments and maintain its performance over time.
The MIL-DTL-38999 Series 1 is a circular connector, making it suitable for applications that require frequent mating and unmating. Its circular design also allows for 360-degree rotation, providing flexibility in cable routing and reducing strain on the connector and cables.
With a voltage rating of 500V, the MIL-DTL-38999 Series 1 is capable of handling high power and high voltage applications with ease. This makes it a popular choice for use in military and aerospace equipment, where reliable and efficient power transmission is critical.
In summary, the MIL-DTL-38999 Series 1 is a high-quality, high-performance connector that offers a combination of features to meet the demanding requirements of military and aerospace applications. Its straight plug design, MS27467, light weight, corrosion resistant shell finish, and high reliability make it a top choice for critical systems and equipment.
| Attribute | Description |
|---|---|
| Connector Type | Circular |
| Contact Type | Crimp |
| Voltage Rating | 500V |
| Operating Temperature | -55°C To +125°C |
| Contact Material | Copper Alloy |
| Current Rating | 7.5 A |
| Product Name | MIL-DTL-38999 Series Ⅰ |
| Shell Size | 23 |
| Shell Finish | Olive Green Cadmium |
| Gender | Straight Plug |
| Part Number | MS27467T23B35PN |
| Coupling | Bayonet |
This high-performance MIL-DTL-38999 Series Ⅰ Straight Plug is manufactured by KAIDA, a leading supplier of connectors and interconnect systems. The model number is MS27467T23B35PN, and it is made in China with high-quality materials and strict quality control.
The MIL-DTL-38999 Series Ⅰ Straight Plug is designed with bayonet coupling, ensuring quick and secure mating. This feature makes it ideal for high vibration and shock environments, such as military and aerospace applications. The bayonet coupling also allows for easy and reliable connections in tight spaces.

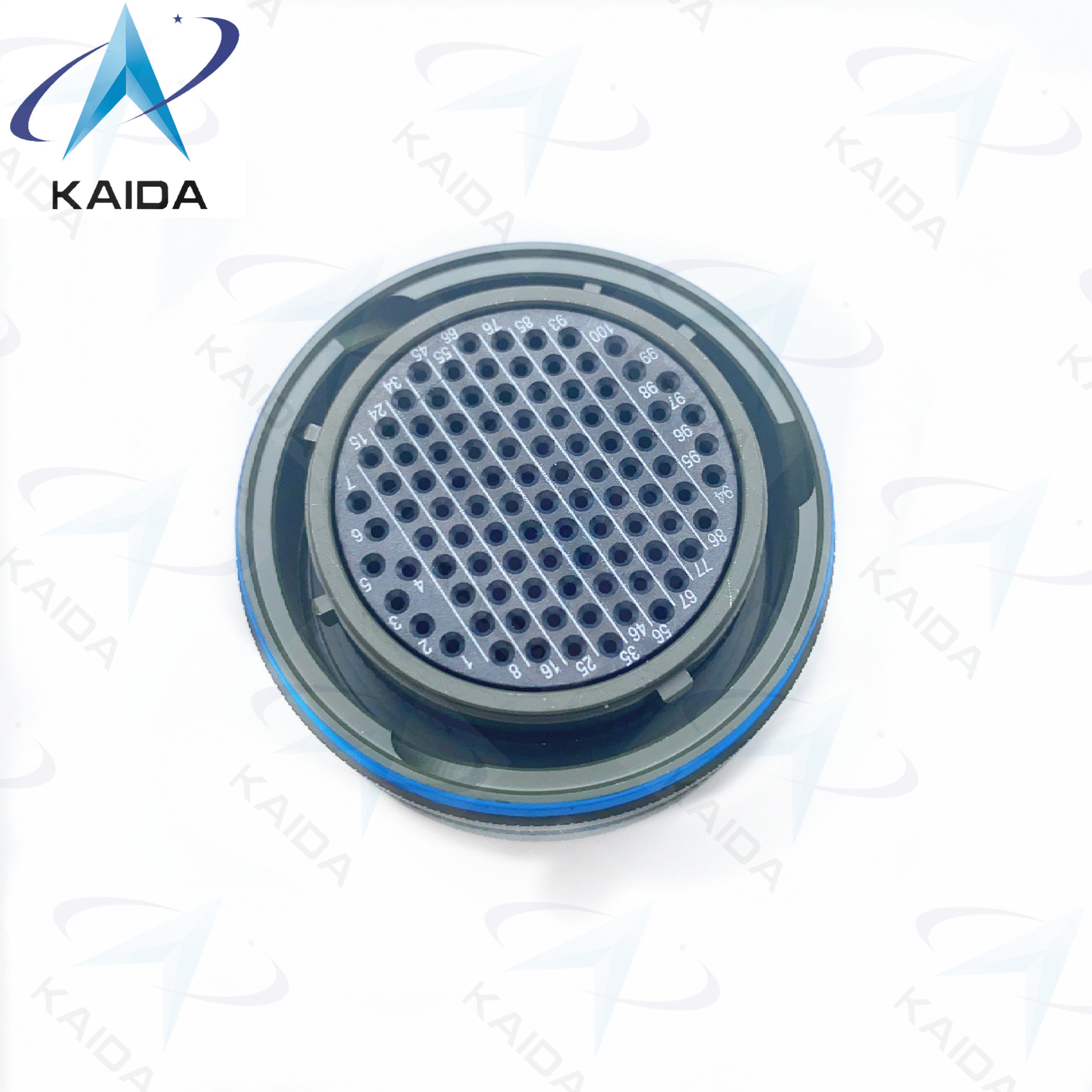

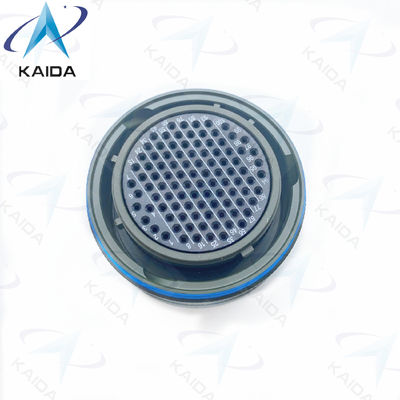

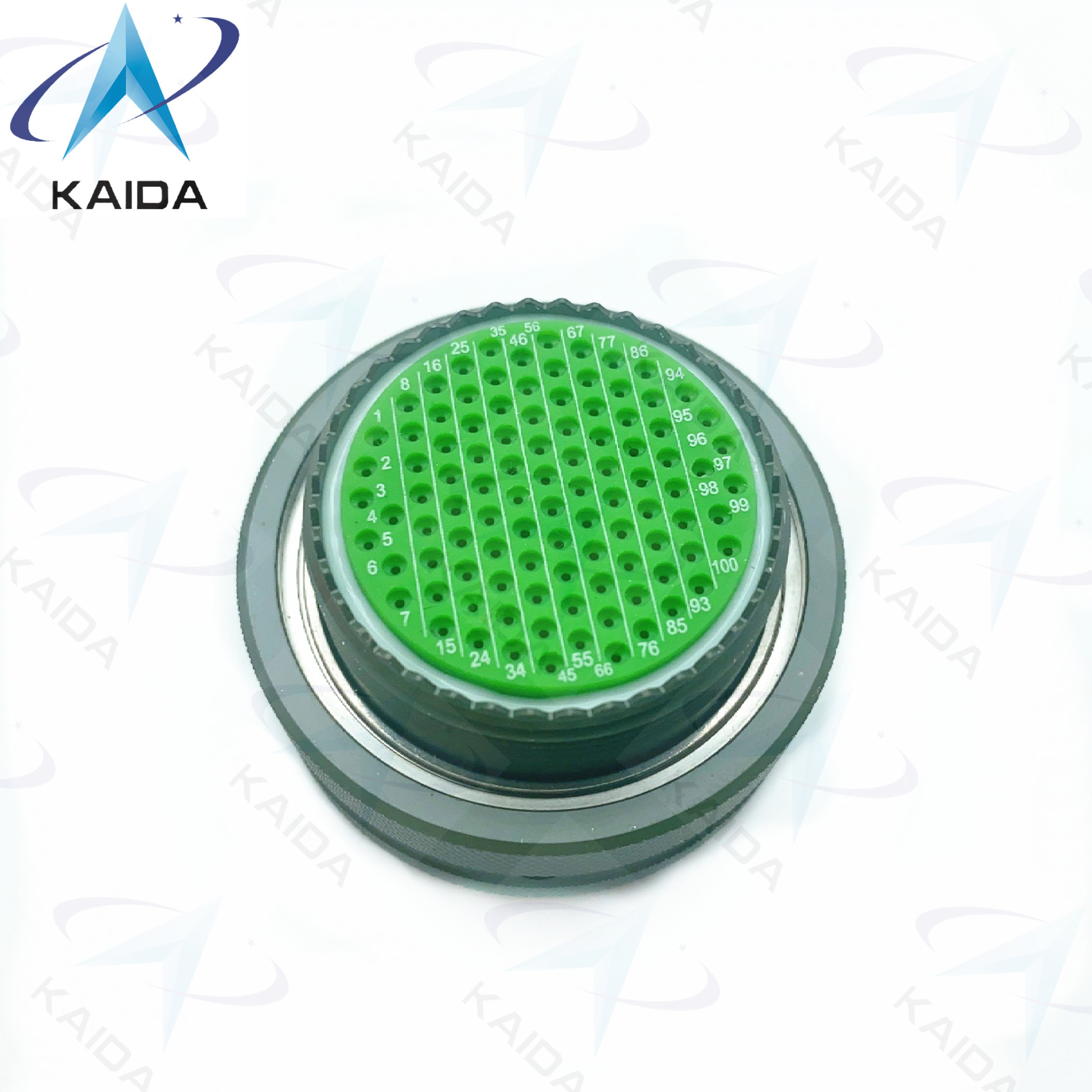

This straight plug has 100 contacts, made of copper alloy, providing excellent conductivity and durability. It has a current rating of 7.5 A, making it suitable for a wide range of electronic devices and systems.
The MIL-DTL-38999 Series Ⅰ Straight Plug is designed with high density in mind, allowing for more contacts in a smaller space. This makes it perfect for applications where space is limited, without compromising on performance.
In addition to its high density, this straight plug is also known for its high reliability. Its bayonet coupling and copper alloy contacts ensure a secure and stable connection, even in harsh environments. This makes it a popular choice for critical and mission-critical systems.
The MIL-DTL-38999 Series Ⅰ Straight Plug is designed to be waterproof and shockproof, meeting the rigorous standards of MIL-DTL-38999. It is capable of withstanding extreme conditions, including exposure to water, dust, and vibration. This makes it a reliable choice for use in military, aerospace, and marine applications, where performance and durability are crucial.
The MIL-DTL-38999 Series Ⅰ Straight Plug is widely used in a variety of industries, including military, aerospace, telecommunications, and industrial equipment. It is commonly used in electronic systems such as radar, avionics, satellites, and communication devices.
With its bayonet coupling, high density, high reliability, waterproof, and shockproof features, the KAIDA MIL-DTL-38999 Series Ⅰ Straight Plug is a top choice for demanding applications. Its excellent performance and durability make it a trusted solution for critical electronic systems, ensuring smooth and reliable operation in any environment.
Product Name: MIL-DTL-38999 Series Ⅰ
KAIDA offers customized solutions for the MIL-DTL-38999 Series Ⅰ Standard connector. Our high-quality and reliable connectors are designed to withstand extreme environments, making them ideal for military and aerospace applications.
With our advanced technology and precision manufacturing processes, we are able to provide superior performance and durability for our customized MIL-DTL-38999 Series Ⅰ connectors. Our connectors are also available in Olive Green Cadmium finish, meeting the strict requirements for military and aerospace applications.
Trust KAIDA for all your customized MIL-DTL-38999 Series Ⅰ connector needs. Contact us today for more information.
