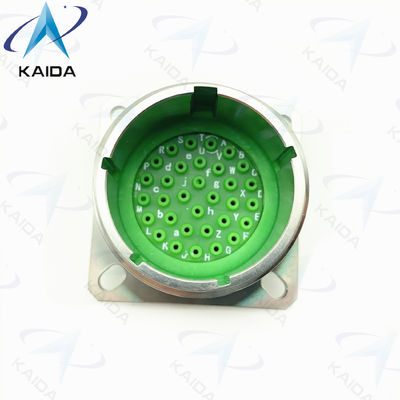

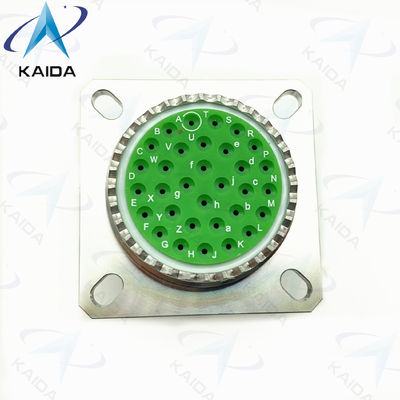

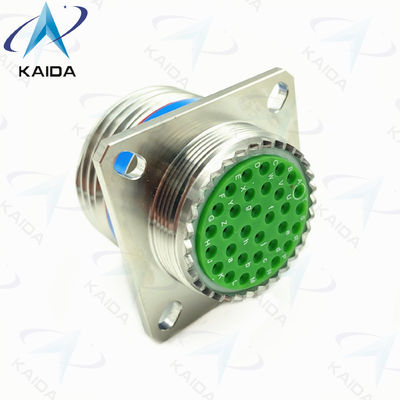

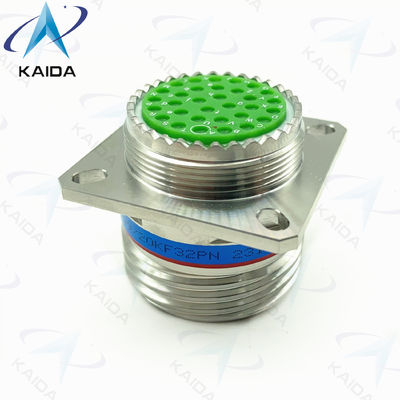

MIL-DTL-38999 Series Ⅲ With Copper Alloy Contact D38999/20KF32PN 32 Female Pins.8D Series.

Part Number:D38999/20KF32PN

Product Description:

The MIL-DTL-38999 Series 3 is a high-performance, rugged and reliable product designed for use in military and aerospace applications. It is a square flange receptacle that is hermetically sealed, ensuring superior environmental sealing and protection for critical electronic components.

With its high-density configuration and quick mating and unmating capabilities, the MIL-DTL-38999 Series 3 is ideal for use in space-constrained environments where space is at a premium. Its threaded coupling design ensures a secure and reliable connection, making it suitable for use in harsh and demanding conditions.

The contacts of the MIL-DTL-38999 Series 3 are made from copper alloy, providing excellent electrical conductivity and resistance to corrosion. The contact finish is gold, ensuring low contact resistance and high durability for extended use. This makes it a highly reliable and long-lasting product, even in the most demanding operating conditions.

The operating temperature range of the MIL-DTL-38999 Series 3 is -55°C to +125°C, making it suitable for use in extreme temperature environments. It is designed to withstand shock and vibration, ensuring uninterrupted performance even in harsh and rugged conditions.

The MIL-DTL-38999 Series 3 comes in a shell size 19, providing a compact and efficient solution for high-density applications. Its high-performance capabilities, combined with its rugged and durable design, make it the preferred choice for critical military and aerospace applications.

In summary, the MIL-DTL-38999 Series 3 is a high-quality, high-reliability product that offers superior environmental sealing, ruggedness, and durability. Its threaded coupling, gold contact finish, copper alloy contact material, and shell size 19 make it the perfect solution for a wide range of military and aerospace applications.

Features:

1. Product Name : MIL-DTL-38999 Series 3
2. Number of Contacts : 32
3. Coupling Type : Threaded
4. Shell Size : 19
5. Contact Material : Copper Alloy
6. Contact Type : Crimp

Applications:

The KAIDA D38999/20KF32PN is a military-detailed 38999 Series Ⅲ square flange receptacle connector, designed for use in harsh conditions and devastating environments. This high-performance connector is manufactured in China and is widely used in various military and aerospace applications.

With a brand name that is trusted in the industry, KAIDA has produced a connector that meets the rigorous requirements of MIL-DTL-38999 Series Ⅲ, making it suitable for use in critical military and aerospace systems. This connector is designed to withstand extreme temperatures, ranging from -55°C to +125°C, ensuring reliable performance even in the most challenging environments.

The D38999/20KF32PN connector has a current rating of 7 A and features 32 gold-plated contacts, providing a secure and stable connection for high-speed data transmission. The gold finish also offers excellent corrosion resistance, making it suitable for use in harsh environments where other connectors may fail.

The KAIDA D38999/20KF32PN connector is commonly used in military and aerospace applications where reliability and durability are crucial. Its rugged construction and high-performance capabilities make it ideal for use in the following scenarios:

• Military aircraft and vehicles: The D38999/20KF32PN connector is used in military aircraft and vehicles, providing a secure and reliable connection for critical systems such as communication, navigation, and weapons control.
• Aerospace systems: This connector is also widely used in various aerospace systems, including satellites, spacecraft, and launch vehicles. Its ability to withstand extreme temperatures and harsh conditions makes it a top choice for these applications.
• Weapon systems: The D38999/20KF32PN is commonly used in weapon systems, providing a reliable connection for electronic components and ensuring accurate and timely communication between systems.
• Marine and naval equipment: With its ability to withstand high levels of vibration and shock, the KAIDA D38999/20KF32PN is an excellent choice for use in marine and naval equipment, such as radar systems, sonar systems, and communication equipment.

Overall, the KAIDA D38999/20KF32PN is a versatile and reliable connector that is suitable for use in a wide range of military and aerospace applications. Its high-performance capabilities, rugged construction, and ability to withstand devastating environments make it a top choice among professionals in the industry.

Customization:

Brand Name: KAIDA

Model Number: D38999/20KF32PN

Place of Origin: China

Current Rating: 7 A

Connector Type: Square Flange Receptacle

Contact Material: Copper Alloy

Operating Temperature: -55°C To +125°C

Voltage Rating: 500V

Detail-38999 Series Ⅲ

Military Detail 38999 Series Ⅲ

Military Detailed-38999 Series Ⅲ

Packing and Shipping:

The MIL-DTL-38999 Series 3 product is carefully packaged and shipped to ensure the safety and integrity of the product during transportation. Below are the details of the packaging and shipping process:

• The product is first placed in a protective plastic bag.
• The bag is then placed in a sturdy cardboard box with foam inserts to provide cushioning and protection.
• The box is sealed with strong tape to prevent the product from falling out.
• The box is labeled with the product name, part number, and any other relevant information.
• Additional packaging materials, such as bubble wrap or air pillows, may be used for added protection.
• The packaged product is then placed in a larger box or crate for shipping.
• The shipping label is attached to the exterior of the box or crate.
• The product is shipped via a reputable carrier, such as UPS, FedEx, or DHL.
• For international shipments, all necessary customs documents are included.
• Customers can also request special packaging or shipping instructions, if needed.

At each step of the packaging and shipping process, great care is taken to ensure that the MIL-DTL-38999 Series 3 product arrives at its destination in excellent condition. This attention to detail guarantees customer satisfaction and confidence in the quality of our product.

FAQ:

• Q: What is the brand name of MIL-DTL-38999 Series 3?
• A: The brand name is KAIDA.
• Q: What is the model number of MIL-DTL-38999 Series 3?
• A: The model number is D38999/20KF32PN.
• Q: Where is MIL-DTL-38999 Series 3 manufactured?
• A: It is manufactured in China.
• Q: What is the contact arrangement of MIL-DTL-38999 Series 3?
• A: The contact arrangement is 32PN.
• Q: What is the operating temperature range of MIL-DTL-38999 Series 3?
• A: The operating temperature range is -65°C to 175°C.
