The MIL-DTL-38999 Series 3 is a jam nut receptacle designed for use in harsh environments. It is part of the Military Detail-38999 Series Ⅲ and is specifically designed for use in aerospace and defense applications.
With its high reliability and rugged design, the MIL-DTL-38999 Series 3 is the perfect choice for applications that require a durable and dependable connector. The gold contact finish ensures a reliable connection, while the electroless nickel shell finish provides protection against corrosion and wear.
The crimp contact type allows for easy and secure installation, making it ideal for use in demanding environments. With 4 contacts, this connector can handle a variety of signal and power requirements.
Overall, the MIL-DTL-38999 Series 3 is a top-of-the-line connector that is specifically designed for use in aerospace and defense applications. Its rugged design and high reliability make it a trusted choice for critical systems in harsh environments.
| Military Detailed-38999 Series Ⅲ | Detailed-38999 Series Ⅲ |
|---|---|
| Shell Finish | Electroless Nickel |
| Contact Material | Copper Alloy |
| Coupling Type | Threaded |
| Operating Temperature | -55°C To +125°C |
| Contact Type | Crimp |
| Connector Type | Jam Nut Receptacle |
| Voltage Rating | 500V |
| Shell Size | 15 |
| Current Rating | 7 A |
| Contact Finish | Gold |

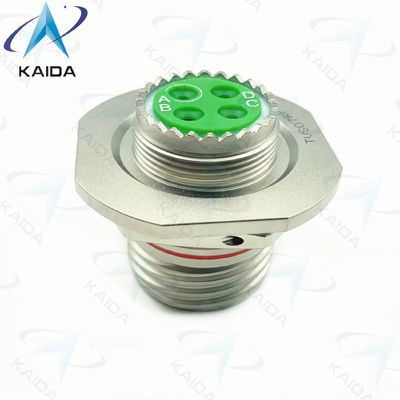

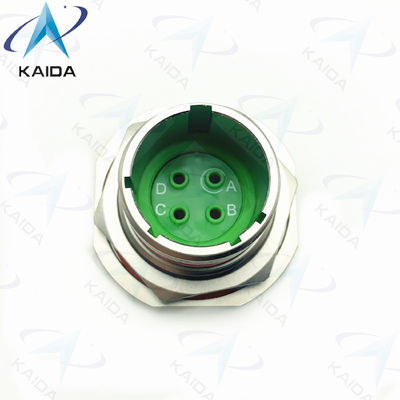

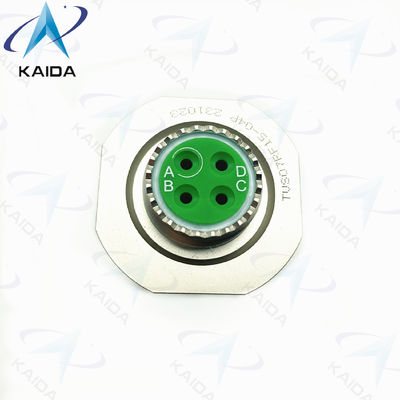

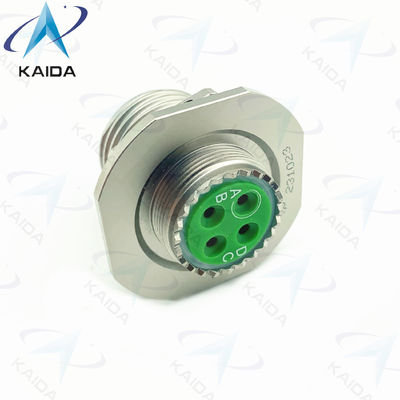

KAIDA's TVS07RF15-04P is a high-quality military grade connector that meets the rigorous requirements of MIL-DTL-38999 Series 3. Designed and manufactured in China, this connector is made to withstand the harshest environments and ensure reliable performance in critical applications.
The TVS07RF15-04P is a jam nut receptacle that features a shell size of 15 and a gold contact finish, providing excellent conductivity and corrosion resistance. The shell finish is electroless nickel, which offers superior durability and protection against wear and tear.
Some of the key features of KAIDA's TVS07RF15-04P include:
With its superior design and construction, KAIDA's TVS07RF15-04P is suitable for a wide range of applications, including:
In addition to its exceptional performance and reliability, the TVS07RF15-04P also offers easy installation and maintenance, making it a popular choice among engineers and technicians. Choose KAIDA's TVS07RF15-04P for your critical applications, and experience the ultimate in connectivity and performance.
Brand Name: KAIDA
Model Number: TVS07RF15-04P
Place of Origin: China
Number of Contacts: 4
Shell Finish: Electroless Nickel
Operating Temperature: -55°C To +125°C
Current Rating: 7 A
Shell Size: 15
This product is a MIL-DTL-38999 Series III TVS07RF15-04P jam nut receptacle, designed and manufactured by KAIDA in China. With a 4-contact design, it can handle a current rating of up to 7 A and has a shell size of 15. The shell finish is electroless nickel, providing durability and protection.
As a part of our customized service, we offer the following options to meet your specific needs:
With our military-detailed-38999 Series III product and extensive customization options, we are committed to providing you with the best solution for your specific application. Contact us now to discuss your requirements and let us help you find the perfect solution for your needs.
The MIL-DTL-38999 Series 3 is a highly durable and reliable product designed for use in demanding environments. To ensure the safe and efficient delivery of this product, specific packaging and shipping guidelines must be followed.
1. The MIL-DTL-38999 Series 3 should be packaged in a sturdy and moisture-resistant container to protect it from damage during transportation.
2. The container should be marked with the product's name, part number, and quantity for easy identification.
3. The product should be individually wrapped in a protective material, such as foam or bubble wrap, to prevent any scratches or dents during transit.
4. The packaging should also include any necessary documentation, such as test reports or certifications, securely attached to the product.
5. If multiple units are being shipped, they should be separated and cushioned to prevent any movement and potential damage.
1. The MIL-DTL-38999 Series 3 should be shipped using a reputable and reliable carrier that offers tracking services.
2. The product should be shipped in accordance with all applicable transportation regulations and guidelines.
3. The shipping address should be clearly labeled and include the recipient's name, company, and contact information.
4. The package should be properly sealed and secured to prevent any tampering or damage during transit.
5. The carrier should be informed of any special handling requirements or instructions for the product.
By following these packaging and shipping guidelines, the MIL-DTL-38999 Series 3 can be safely and efficiently delivered to its destination, ensuring customer satisfaction and product quality.
