MIL-DTL-38999 Series Ⅲ is designed to meet the rigorous performance requirements of military and aerospace applications. The MIL-DTL-38999 Series Ⅲ connectors are available in a variety of shell sizes, contact configurations, and plating options. This series includes a current rating of 7 A, a quadrax female contact, a receptacle connector type, and a gold contact finish in a shell size of 19.
The MIL-DTL-38999 Series Ⅲ is designed to withstand exposure to environmental extremes, including shock, vibration, temperature variations, and salt fog. The series is designed to provide long-term reliable performance, even in the most extreme environments. The contacts are designed to provide a secure connection, while the shells are designed for maximum durability.
The MIL-DTL-38999 Series Ⅲ is an ideal choice for military and aerospace applications, providing reliable performance and secure connections. The connectors are designed to meet the highest standards of quality and reliability, ensuring a long-term, reliable connection in even the most extreme environments.
| Property | Value |
|---|---|
| Product Name | MIL-DTL-38999 Series 3 |
| Connector Type | Receptacle |
| Contact Material | Copper Alloy |
| Voltage Rating | 500V |
| Operating Temperature | -55°C To +125°C |
| Number of Contacts | 4 |
| Current Rating | 7 A |
| Shell Finish | Olive Green Cadmium |
| Contact Finish | Gold |
| Contact Type | Quadrax Female Contact |
| Coupling Type | Threaded |

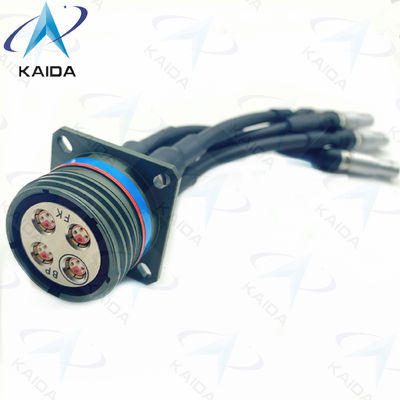

The KAIDA D38999/20WF049SFNC110 is a Military Detail-38999 Series Ⅲ connector manufactured with an olive green cadmium shell finish and a gold contact finish. This connector is designed with 4 contacts and a shell size of 25, and is able to operate in a temperature range of -55°C to +125°C. It is a highly reliable and cost-effective solution for a wide range of applications, including aerospace, military, transportation, medical, and industrial applications.
The D38999/20WF049SFNC110 is part of the Detail-38999 Series Ⅲ, which is the world's leading connector series for high-density, high-performance, and high-reliability applications. It is tested to meet the rigorous military specifications, ensuring superior quality and reliability. The Detail-38999 Series Ⅲ is ideal for applications where shock, vibration, and high operating temperatures are present.
The KAIDA D38999/20WF049SFNC110 is the perfect choice for customers who require a reliable and cost-effective solution for their applications. With its superior quality and reliability, it is the ideal connector for aerospace, military, transportation, medical, and industrial applications.
MIL-DTL-38999 Series 3 provides technical support and service from the manufacturer, which includes:
Packaging and Shipping for MIL-DTL-38999 Series 3:
The product must be packaged and shipped in accordance with the MIL-STD-2073-1C, Standard Practice for Military Packaging. The shipping container should be designed to protect the product from shock, vibration, and other environmental hazards along the entire journey from the manufacturer to the customer.
The product should be packed in a clean and dry environment and must be stored in a temperature-controlled environment. The product must be stored in an area that is dry, away from excess moisture and dust, and away from any corrosive substances.
The product should be shipped in a sturdy, corrugated container, and all parts must be clearly labeled. All associated paperwork must be included with shipment, including the bill of lading, shipping papers, and any other relevant documents.
