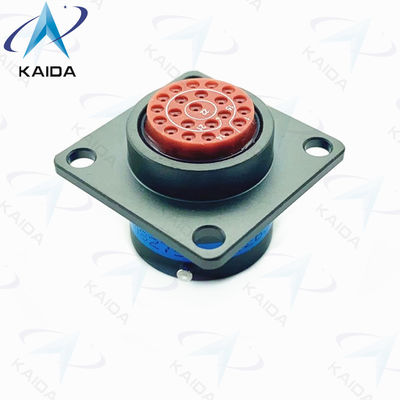

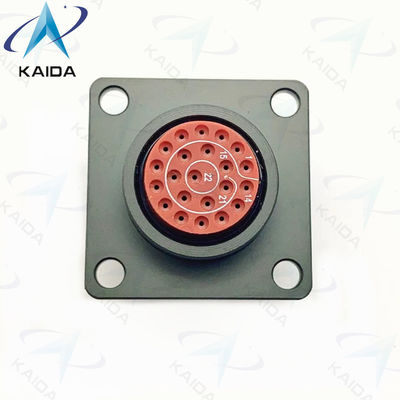

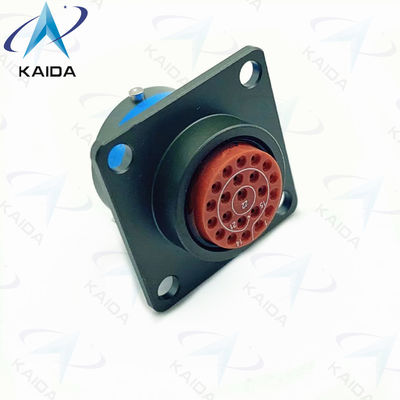

MIL-DTL-38999 Series Ⅱ Connector in Olive Green Cadmium.22 male pins.Crimp Box Mounting Receptacle.MS27508E12B35PN
MIL-DTL-38999 Series Ⅱ is a circular, back panel mounting connector. It is compliant with MS27508, designed to meet the requirements of military and aerospace applications. The MIL-DTL-38999 Series Ⅱ features a 12 shell size, copper alloy contact material, gold plating, and crimp termination. It provides reliable connections in harsh environments, and has high resistance to shock and vibration. The MIL-DTL-38999 Series Ⅱ is ultra-rugged and provides superior performance in a wide range of applications. It is ideal for military, aerospace, and industrial applications, and is designed for reliable performance in the most extreme conditions.
| Attribute | Value |
|---|---|
| Contact Termination | Crimp |
| Finish | Olive Green Cadmium |
| Insulator Material | Thermoplastic |
| Shell Size | 12 |
| Series | MIL-DTL-38999 Series Ⅱ |
| Operating Temperature | -55 To 125 °C |
| Voltage Rating | 500 V |
| Current Rating | 7.5 A |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Back Panel Mounting | MS27508E12B35PN |
KAIDA's MIL-DTL-38999 Series Ⅱ connectors are a reliable, robust, and durable solution for a variety of applications and environments. This connector series is designed to meet the demanding specifications of military and industrial applications, with features such as olive green cadmium plating and a contact termination of crimp. The model number of this product is MS27508E12B35PN, with a shell size of 12 and contact material of copper alloy. It also has a wide operating temperature range of -55 To 125 °C and a contact plating of gold. Combined with the rugged and reliable design of the MIL-DTL-38999 Series Ⅱ connectors, KAIDA's MS27508E12B35PN provides a dependable and reliable connection in the most demanding environments.
MIL-DTL-38999 Series Ⅱ products are supported and serviced as follows:
The MIL-DTL-38999 Series Ⅱ products shall be packaged in accordance with the requirements of MIL-STD-2073-1, General Packaging of Material, or its equivalent. The packaging shall be in a form suitable for safe handling, storage, and shipment.
Q1: What is the brand name of MIL-DTL-38999 Series Ⅱ?
A1: The brand name of MIL-DTL-38999 Series Ⅱ is KAIDA.
Q2: What is the model number of MIL-DTL-38999 Series Ⅱ?
A2: The model number of MIL-DTL-38999 Series Ⅱ is MS27508E12B35PN.
Q3: Where is MIL-DTL-38999 Series Ⅱ made?
A3: MIL-DTL-38999 Series Ⅱ is made in China.
Q4: How many pins does MIL-DTL-38999 Series Ⅱ have?
A4: MIL-DTL-38999 Series Ⅱ has 35 pins.
Q5: What is the size of MIL-DTL-38999 Series Ⅱ?
A5: MIL-DTL-38999 Series Ⅱ is 12mm in size.
