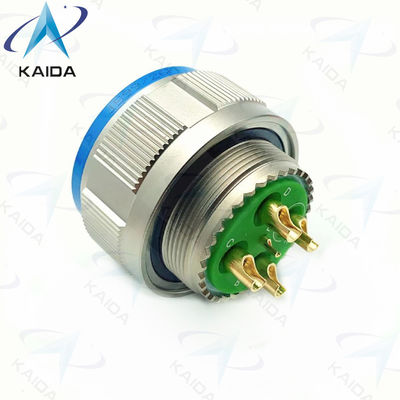

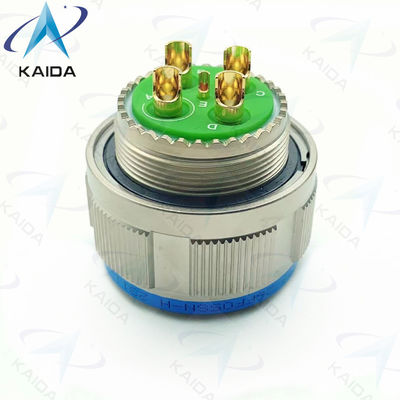

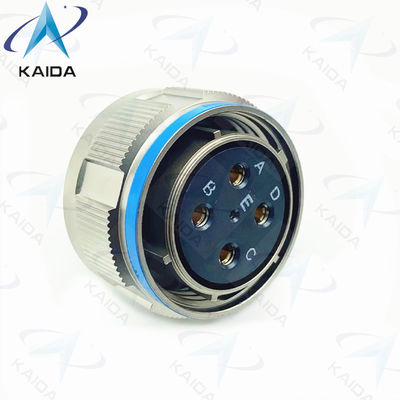

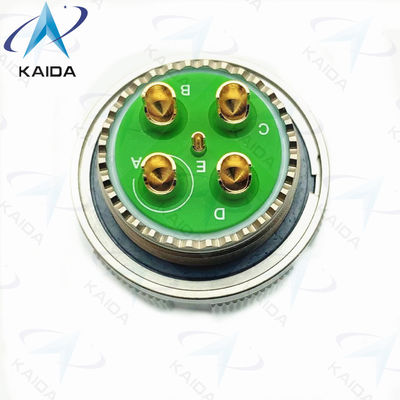

Receptacle MIL-DTL-38999 Series 3 Connector 500V 38999 Series Iii 5 Female Pins

Part Number:D38999/26FF05SN-H

Product Description:

MIL-DTL-38999 Series Ⅲ is a family of military-specification connectors designed to meet the needs of military applications. These connectors are designed to provide reliable connections in the toughest environments. Series Ⅲ connectors are available in five contact arrangements and are constructed of a durable electroless nickel shell with gold-plated contacts. The connectors are rated for up to 500V and provide a reliable connection in a variety of environments. MIL-DTL-38999 Series Ⅲ connectors are the ideal solution for harsh military applications, offering superior performance and reliability.

Features:

• Product Name: MIL-DTL-38999 Series Ⅲ
• Shell Size: 19
• Number of Contacts: 5
• Contact Type: Solder
• Operating Temperature: -55°C To +125°C
• Voltage Rating: 500V

Technical Parameters:

Applications:

The Military-Detailed-38999 Series Ⅲ connectors from KAIDA are specifically designed for military equipment. The D38999/26FF05SN-H model offers a rugged, corrosion-resistant construction and reliable electrical performance. It features a 7 A current rating, solder contact type, electroless nickel shell finish, and threaded coupling type. It also has 5 contacts for efficient connections. This connector is manufactured in China and is suitable for harsh environments and extreme temperatures. It is also designed to provide superior protection against shock and vibration. With its superior performance and reliability, this connector is an ideal choice for military and aerospace applications.

Customization:

Introducing MIL-DTL-38999 Series Ⅲ from KAIDA! Model D38999/26FF05SN-H is manufactured in China and features a 19 shell size, 5 contacts, threaded coupling type, electroless nickel shell finish, and an operating temperature of -55°C To +125°C. This Military-Detailed 38999 Series Ⅲ is designed to meet the highest standards for both performance and reliability.

Support and Services:

The MIL-DTL-38999 Series Ⅲ technical support and services include:

• Design consultation and optimization
• Reverse engineering and testing
• Environmental stress screening
• High-reliability cleaning and handling
• Process development and validation
• Supply chain management
• Product repair and overhaul
• Logistical support and inventory management

Packing and Shipping:

MIL-DTL-38999 Series Ⅲ packaging and shipping requirements are as follows:

• Product should be packaged in corrugated boxes or cartons.
• Product should be placed in foam or other cushioning material to minimize vibration and shock.
• Product should be labeled with all applicable MIL-DTL-38999 Series Ⅲ specifications.
• Product should be labeled with the date, place of origin, and destination.
• Product should be marked with appropriate handling and storage instructions.
• Product should be shipped via ground transportation.

FAQ:

Q1: What is MIL-DTL-38999 Series Ⅲ?

A1: MIL-DTL-38999 Series Ⅲ is a leading high-density, high-performance circular connector manufactured by KAIDA with Model Number D38999/26FF05SN-H, which is made in China.

Q2: What are the features of MIL-DTL-38999 Series Ⅲ?

A2: MIL-DTL-38999 Series Ⅲ is designed for extreme environmental conditions and offers superior signal integrity, superior durability, and high-reliability.

Q3: What are the applications of MIL-DTL-38999 Series Ⅲ?

A3: MIL-DTL-38999 Series Ⅲ is suitable for applications in aerospace, military, and industrial sectors.

Q4: What are the materials of MIL-DTL-38999 Series Ⅲ?

A4: MIL-DTL-38999 Series Ⅲ is made of aluminum alloy, stainless steel, and high-temperature thermoplastic.

Q5: What is the temperature range of MIL-DTL-38999 Series Ⅲ?

A5: MIL-DTL-38999 Series Ⅲ has a temperature range of -55°C to +200°C.
