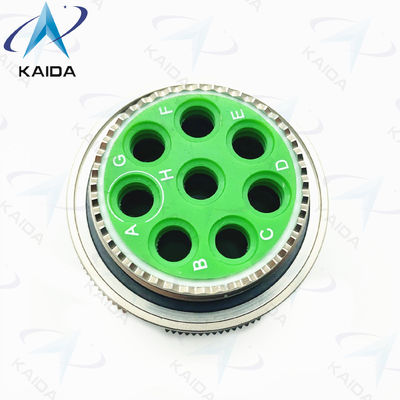

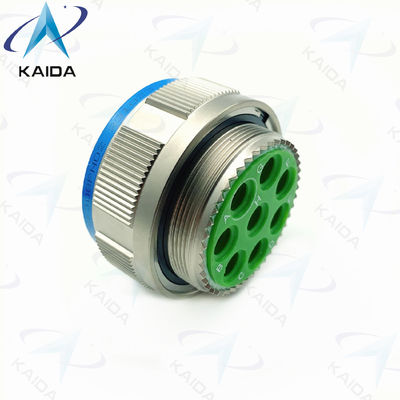

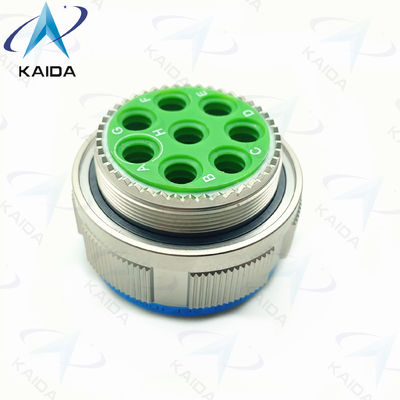

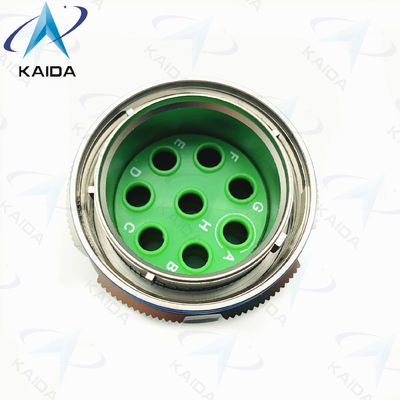

Shell Size 25 MIL-DTL-38999 Series Ⅲ Connector . 8# Coax or Power Contact.Electroless Nickel.D38999/26FJ08SN
MIL-DTL-38999 Series Ⅲ is a military-grade connector solution designed to be reliable and robust in the toughest of operating environments. It has been tested in harsh conditions, including extreme temperatures ranging from -55°C to +125°C, and can withstand voltage up to 500V. It features a threaded coupling type and 8# coax contact type, as well as an electroless nickel shell finish that offers superior protection and corrosion resistance. MIL-DTL-38999 Series Ⅲ is an ideal choice for a wide variety of applications, such as aerospace, industrial, and military. It offers superior performance, reliability, and safety in demanding conditions.
| Property | Value |
|---|---|
| Shell Finish | Electroless Nickel |
| Current Rating | 7 A |
| Voltage Rating | 500V |
| Number of Contacts | 8 |
| Contact Finish | Gold |
| Coupling Type | Threaded |
| Connector Type | Plug |
| Contact Type | 8# Coax/power Conatct |
| Shell Size | 25 |
| Operating Temperature | -55°C To +125°C |
MIL-DTL-38999 Series Ⅲ, manufactured by KAIDA and branded as D38999/26WJ08SN, is a plug-type connector with a voltage rating of 500V. It has a shell size of 25 and operates in temperatures ranging from -55°C to +125°C. Its contact material is copper alloy. This connector is designed to meet the stringent requirements of the military-detail 38999 series Ⅲ specification.
This MIL-DTL-38999 Series Ⅲ connector is a premium product from KAIDA that offers superior performance in extreme environments. Its superior corrosion resistance makes it the perfect choice for users who need reliable performance in harsh conditions. The connector also features high-temperature stability and a low contact resistance, making it ideal for use in applications with high thermal cycling.
With its rugged design and superior performance, the MIL-DTL-38999 Series Ⅲ connector from KAIDA is the perfect choice for applications in the aerospace, automotive, medical, military, and industrial sectors. It is a reliable, cost-effective solution that meets all the requirements of the MIL-DTL-38999 Series Ⅲ specification.
MIL-DTL-38999 Series Ⅲ products offer a range of technical support and services, including:
MIL-DTL-38999 Series Ⅲ Packaging and Shipping:
The MIL-DTL-38999 Series Ⅲ connectors are packaged in a sturdy box with the connectors safely stored inside. The box is then sealed with adhesive tape for secure shipping. The inner contents are protected from external environmental factors with the use of an industry-standard foam packaging material. The package is then marked with the customer's name and address, with a label that can be scanned by the shipping service. The package is then shipped in an appropriate-sized cardboard box, with the inner contents securely fastened with additional foam packaging, and the box is sealed with adhesive tape.
