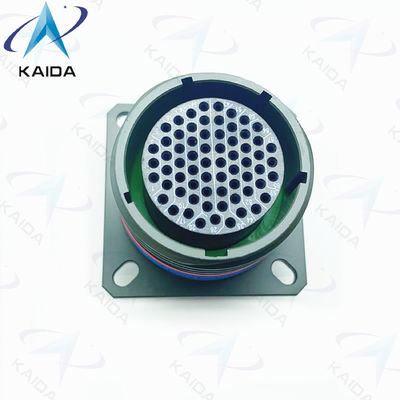

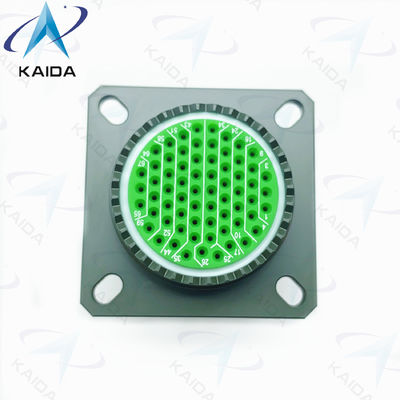

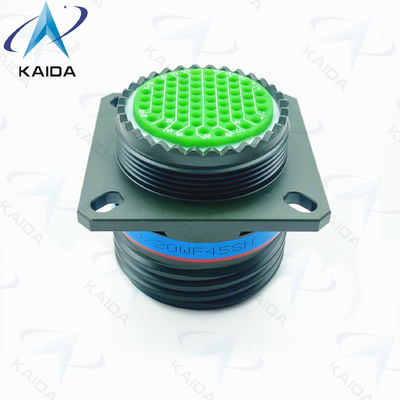

Shell Size 19 Receptacle Connector Compatible with MIL-DTL-38999 Series Ⅲ.Olive Green Cadmium.D38999/20WF45SN
MIL-DTL-38999 Series Ⅲ is a family of high reliability circular connectors designed to meet the most demanding environmental and performance requirements, while providing greater versatility than earlier generations. This series is suitable for a wide range of applications in the military, aerospace, medical and other industries. The Series Ⅲ connectors are available in a variety of contact configurations, shell sizes, contact finishes, and mounting options. The most common configuration is a Receptacle type with Crimp contact type and Gold contact finish, with an operating temperature range of -55°C to +125°C. One of the most popular types in this series is the D38999/20WF45SN, D38999/20WF45SN-LC and D38999/20WF45SN-LS, all of which feature a shell size of 19.
| Attribute | Value |
|---|---|
| Connector Type | Receptacle |
| Shell Size | 19 |
| Shell Finish | Olive Green Cadmium |
| Voltage Rating | 500V |
| Contact Type | Crimp |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Operating Temperature | -55°C To +125°C |
| Current Rating | 7 A |
| Number of Contacts | 67 |
The Military-Detail-38999 Series Ⅲ, also known as Military Detail 38999 Series Ⅲ, is a connector designed for military applications. Manufactured by KAIDA, the KAIDA D38999/20WF45SN is made of copper alloy and features 67 crimp contacts with a voltage rating of 500V. It has a threaded coupling type for secure connections. It is designed to meet the requirements of MIL-DTL-38999 Series Ⅲ, making it a reliable choice for military applications.
KAIDA MIL-DTL-38999 Series Ⅲ is a Military-Detailed-38999 Series Ⅲ connector designed to meet the highest quality standards for Military Detail-38999 Series Ⅲ connectivity.
MIL-DTL-38999 Series Ⅲ provides technical support and services, including:
MIL-DTL-38999 Series Ⅲ should be packaged and shipped in accordance with MIL-STD-2073, which sets forth the requirements for the packaging, packing, marking, and labeling of military supplies.
A1: MIL-DTL-38999 Series Ⅲ is a military specification circular connector manufactured by KAIDA, Model Number D38999/20WF45SN, which originates from China.
A2: MIL-DTL-38999 Series Ⅲ is designed to provide electrical connections in harsh environments, such as aerospace, military and industrial applications.
A3: MIL-DTL-38999 Series Ⅲ features a robust design with high shock and vibration resistance, a wide temperature range, a high packing density, and a high level of EMI/RFI protection.
A4: MIL-DTL-38999 Series Ⅲ has a standard size of 20-45 contacts. The outer diameter is approximately 79.9mm, and the length is approximately 5.08mm.
A5: MIL-DTL-38999 Series Ⅲ is made of nickel-plated zinc alloy for the shell and crimp type contacts. The insulation is made of polytetrafluoroethylene.
