MIL-DTL-38999 Series Ⅱ ;MS27508T18B35PB ;66 Male Pins; Olive Green Cadmium plating
MIL-DTL-38999 Series Ⅱ is a high-performance circular connector designed to meet the demands of today's most advanced applications. It features a rugged aluminum alloy shell and gold plated contacts with a copper alloy material. This connector offers up to 66 contacts in a single unit. It is designed to meet the stringent requirements of MIL-DTL-27508, and is suitable for harsh environments, including shock, vibration, and extreme temperatures. It is a reliable and cost-effective solution for military, aerospace, and industrial applications.
| Attribute | Value |
|---|---|
| Insulator Material | Thermoplastic |
| Shell Size | 18 |
| Current Rating | 7.5 A |
| Contact Plating | Gold |
| Operating Temperature | -55 To 125 °C |
| Gender | Receptacle |
| Shell Material | Aluminum Alloy |
| Contact Material | Copper Alloy |
| Series | MIL-DTL-38999 Series Ⅱ |
| Contact Termination | Crimp |

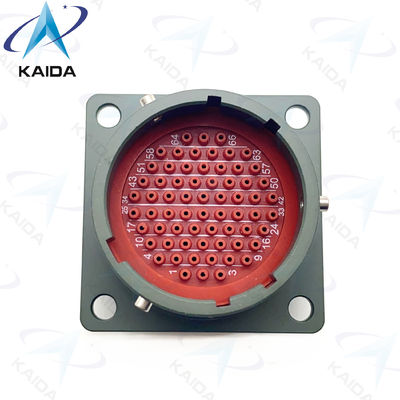

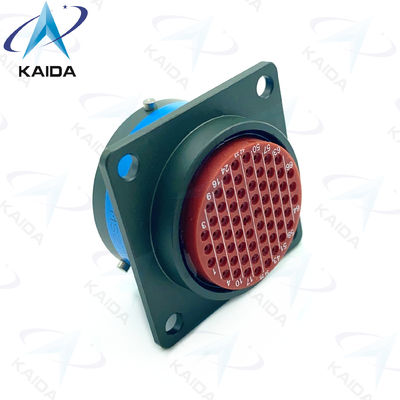

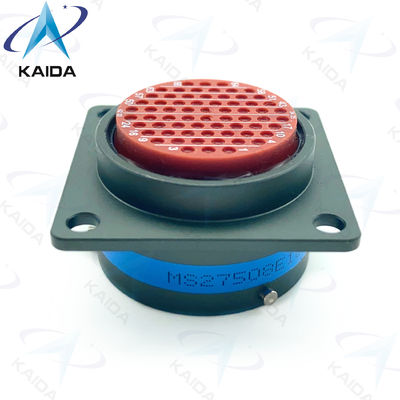

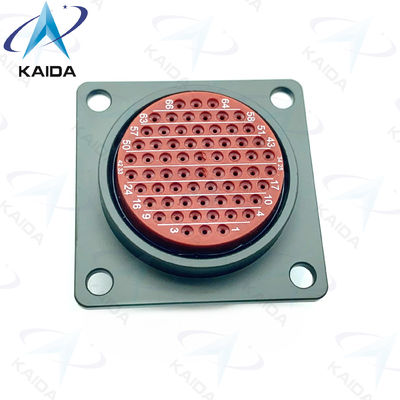

Product Pictures
MIL-DTL-38999 Series Ⅱ, manufactured by KAIDA with the model number MS27508T18B35PB, is a high-quality receptacle which originates from China. It is designed with a copper alloy contact material and features an olive green cadmium plating. The shell material is made out of aluminum alloy, making it lightweight yet durable. This receptacle has a current rating of 7.5 A and is highly reliable and efficient. MIL-DTL-38999 Series Ⅱ is an ideal solution for a wide range of applications, such as aviation, telecommunications, and military, due to its superior quality and superior performance. Its 27484 design is especially suitable for harsh environments and difficult applications. The combination of its copper alloy contact material, olive green cadmium plating, and aluminum alloy shell material makes it one of the most reliable and durable receptacles on the market.
KAIDA MS27484T18B35PB MIL-DTL-38999 Series Ⅱ connector is a plug with olive green cadmium plating, 66 contacts, gold contact plating and copper alloy contact material. It is rated for 500 V and operating temperature is from -55 To 125°C.
MIL-DTL-38999 Series Ⅱ technical support and services include:
The MIL-DTL-38999 Series Ⅱ is packaged and shipped in accordance with MIL-STD-1686.
The packaging is designed to provide physical and environmental protection during shipment. The MIL-STD-1686 requirements include:
A1: MIL-DTL-38999 Series Ⅱ is a military-grade circular connector from KAIDA, which is made of copper alloy and has a model number of MS27484T18B35PB. It is manufactured in China.
A2: MIL-DTL-38999 Series Ⅱ has excellent vibration and shock resistance, and is suitable for harsh environments. It also has high temperature resistance and excellent electrical performance.
A3: MIL-DTL-38999 Series Ⅱ is widely used in aerospace, military, communications, medical, and industrial equipment.
A4: MIL-DTL-38999 Series Ⅱ has a voltage rating of up to 500 volts.
A5: MIL-DTL-38999 Series Ⅱ has an operational temperature range of -55℃ to +125℃.
