MIL-DTL-38999 Series Ⅲ is a high-reliability circular connector which offers robust performance in harsh environments. It has a PLUG type connector, with a shell size of 17, and contact finish of Gold. The contact material used in the connector is Copper Alloy, and it is designed to operate in temperatures between -55°C To +125°C. This connector series is ideal for use in applications that require reliable performance in extreme temperature and pressure conditions. MIL-DTL-38999 Series Ⅲ provides superior contact integrity and durability and is a reliable and cost-effective connector solution.
| Attribute | Value |
|---|---|
| Product Name | MIL-DTL-38999 Series Ⅲ |
| Shell Finish | Stainless Steel Passivated |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C To +125°C |
| Contact Finish | Gold |
| Voltage Rating | 500V |
| Shell Size | 17 |
| Contact Type | Crimp |
| Coupling Type | Threaded |
| Number of Contacts | 6 |
| Current Rating | 7 A |

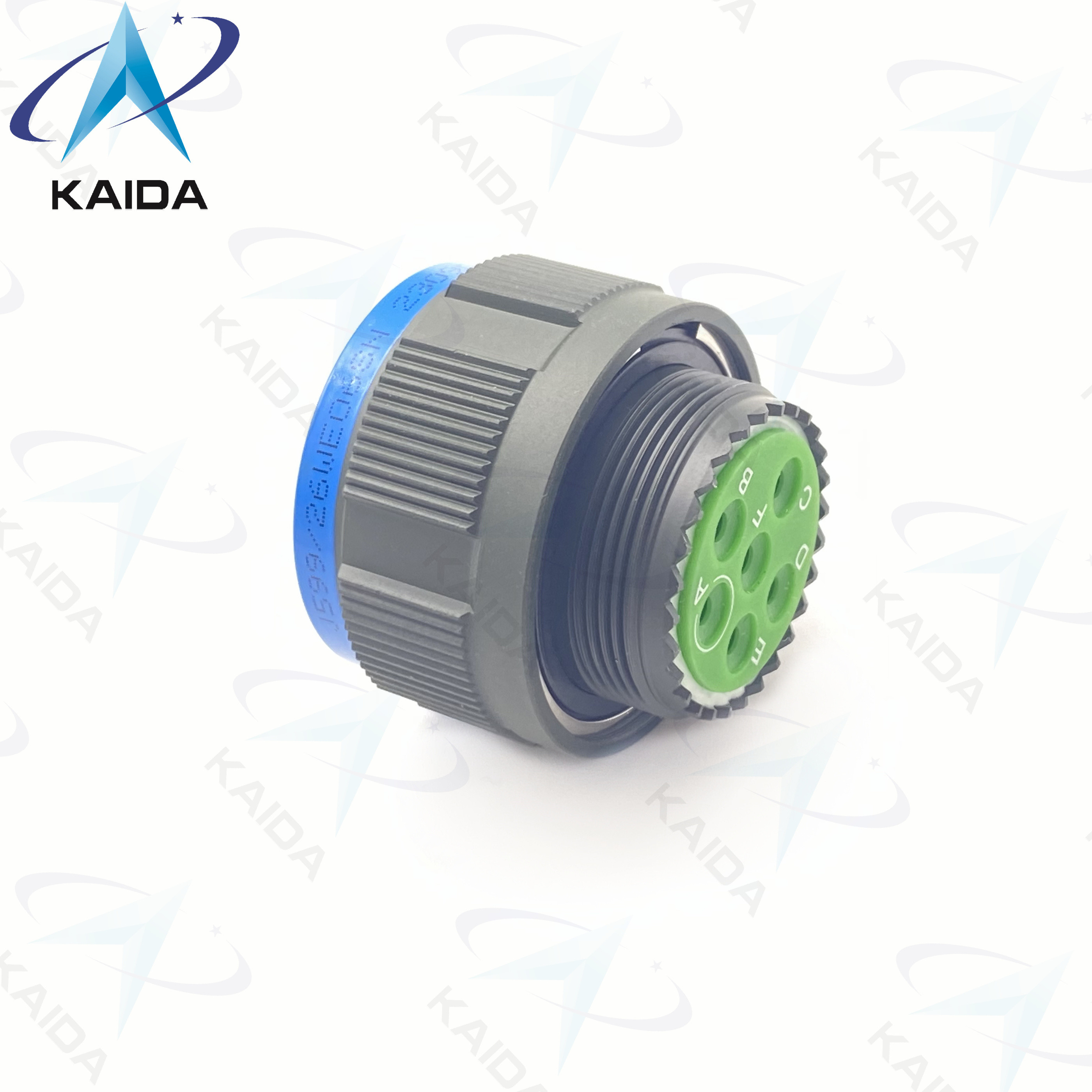

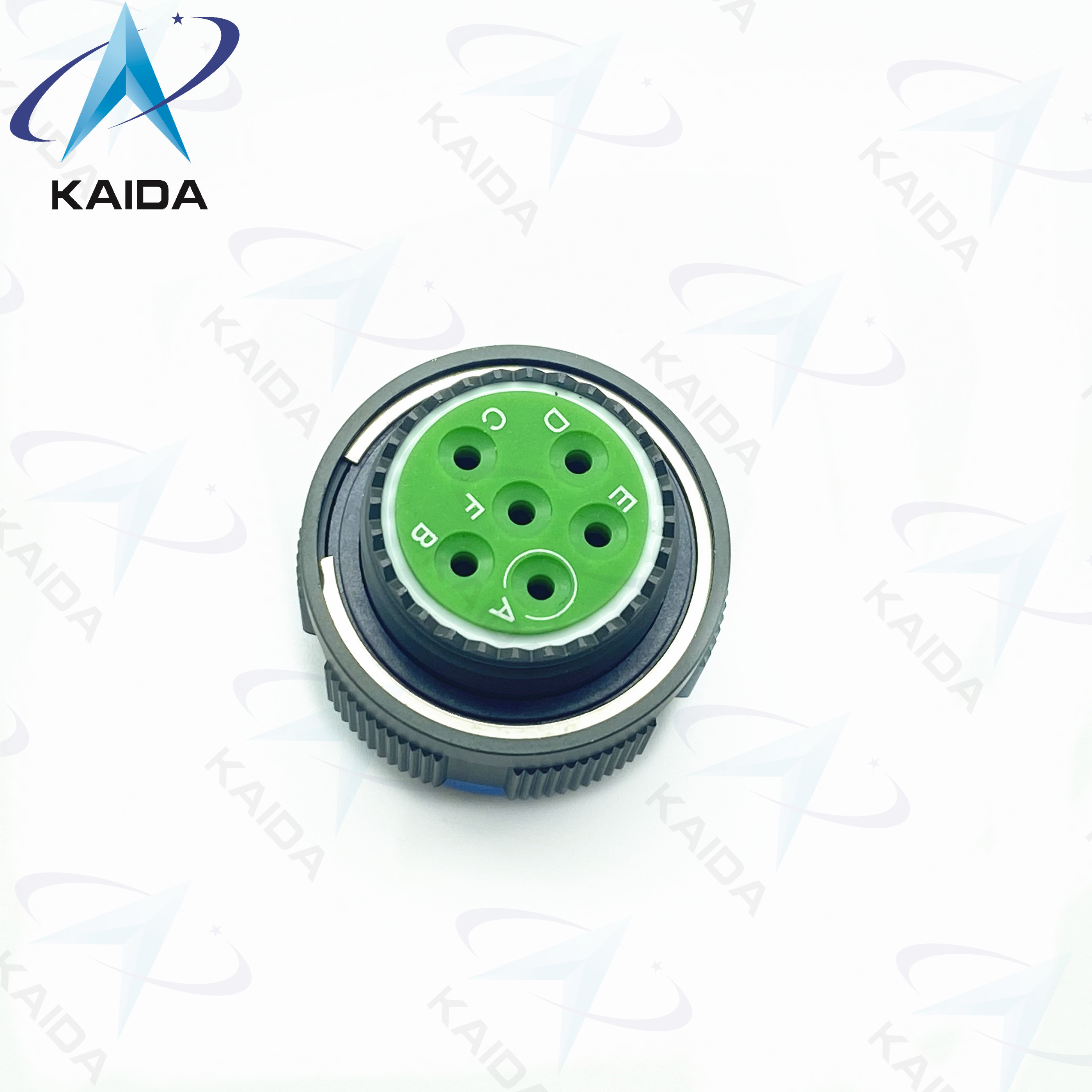

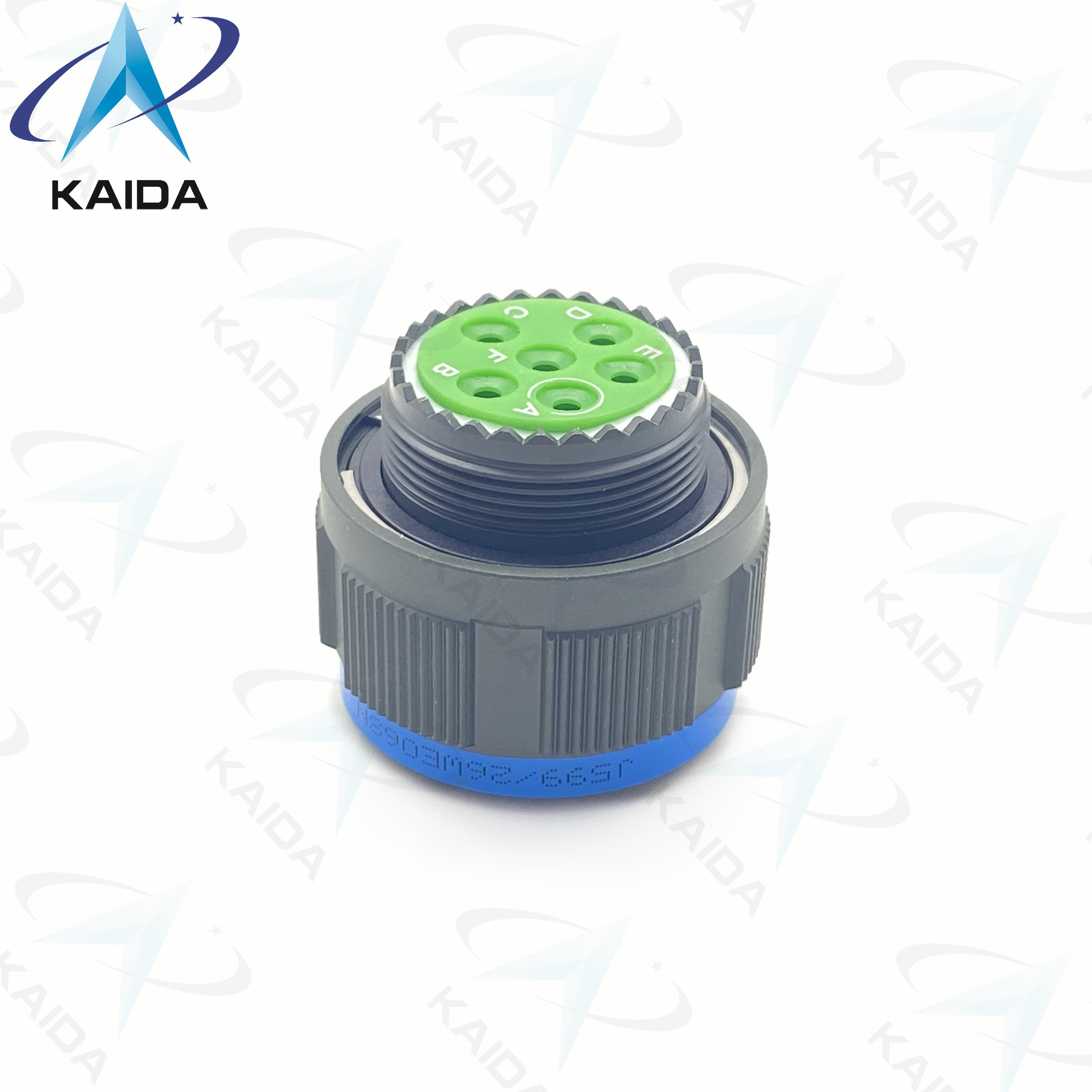

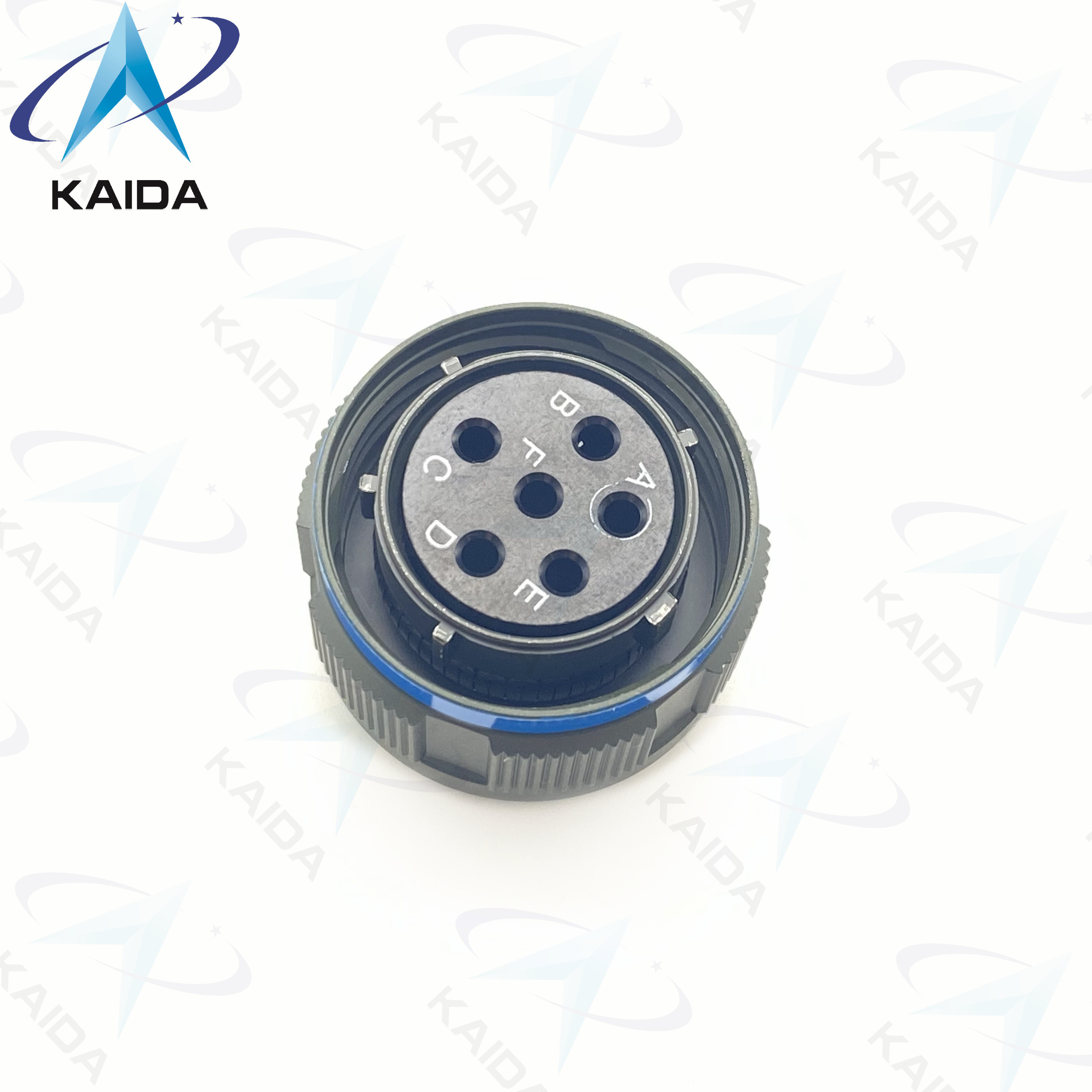

Product Pictures
The MIL-DTL-38999 Series Ⅲ from KAIDA is an ideal choice for the most demanding military and aerospace applications. This plug connector, model D38999/26FD23SA, is designed with a crimp contact type and copper alloy contact material, making it perfect for extreme temperature environments from -55°C to +125°C. With six contacts, this Detail-38999 Series Ⅲ connector from KAIDA is sure to meet all of your rigorous requirements.
Brand Name: KAIDA
Model Number: D38999/26FD23SA
Place of Origin: China
Contact Finish: Gold
Shell Finish: Stainless Steel Passivated
Contact Type: Crimp
Contact Material: Copper Alloy
Current Rating: 7 A
MIL-DTL-38999 Series Ⅲ products offer technical support and services such as:
MIL-DTL-38999 Series Ⅲ products must be properly packaged and shipped to prevent damage during transportation and storage. The following packaging and shipping requirements must be followed:
