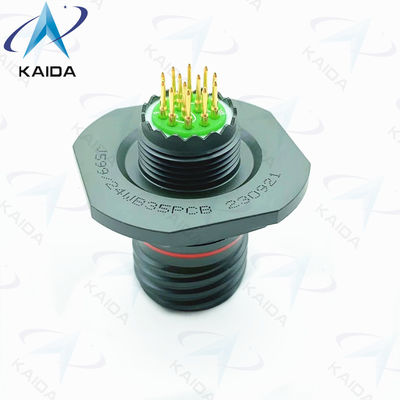

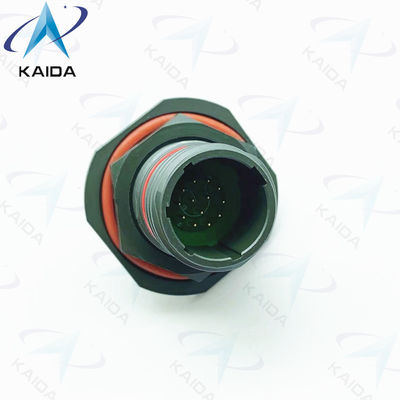

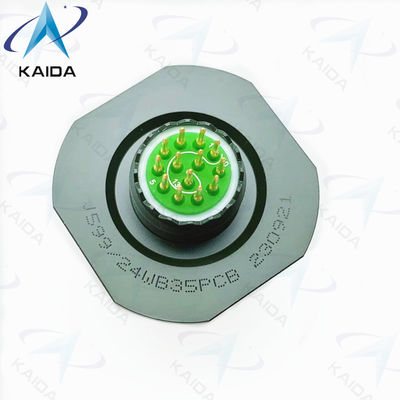

Connector Type Jam Nut Receptacle 7A Current Rating - MIL-DTL-38999 Series Ⅲ.PCB Type.13 Male Pins.D38999/24WB35PCB
MIL-DTL-38999 Series Ⅲ is a family of circular connectors designed to meet military specifications. It is an ideal choice for military and aerospace applications with its superior performance and reliable connection. The D38999/24WB35PCB connector is an excellent example of the MIL-DTL-38999 Series Ⅲ. It offers a 500V voltage rating, threaded coupling, jam nut receptacle, and 13 contacts.
The MIL-DTL-38999 Series Ⅲ connectors are designed to withstand harsh conditions and are capable of operating in temperatures ranging from -55°C to +125°C. The connectors are environmentally sealed and offer protection against dust, moisture, and vibration. The threaded coupling ensures a secure connection while making installation and removal easy. All MIL-DTL-38999 Series Ⅲ connectors are manufactured to meet military specifications and are tested for performance and reliability.
The MIL-DTL-38999 Series Ⅲ connectors are trusted by leading military and aerospace applications worldwide. They offer superior performance and reliability and are available in a wide variety of configurations. Whether you need a connector for a mission-critical application or a rugged environment, the MIL-DTL-38999 Series Ⅲ connectors are the perfect choice.
Features:
| Attribute | Value |
|---|---|
| Contact Type | Crimp |
| Number of Contacts | 13 |
| Shell Size | 11 |
| Shell Finish | Olive Green Cadmium |
| Operating Temperature | -55°C To +125°C |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Coupling Type | Threaded |
| Connector Type | Jam Nut Receptacle |
| Voltage Rating | 500V |
The KAIDA D38999/24WB35PCB Military-Detail 38999 Series Ⅲ is designed to provide a reliable connection for a wide range of harsh environment applications. It is a high-performance, ruggedized connector that is capable of withstanding extreme temperatures, vibration, shock, and other environmental conditions. Made of a durable copper alloy, it features a current rating of 7 amps and a contact type of crimp. It also has 13 contacts and a shell size of 11. With its superior durability and excellent performance, the KAIDA D38999/24WB35PCB Military-Detail 38999 Series Ⅲ is ideal for harsh-environment applications such as aerospace, industrial, military, medical, and telecom. It is an ideal solution for connecting a variety of components in demanding applications.
KAIDA is proud to present our Military-Detail 38999 Series Ⅲ, D38999/24WB35PCB. This Detail-38999 Series Ⅲ is made with high-quality materials in China. The Coupling Type is Threaded, with a Shell Size of 11 and a Current Rating of 7 A. The Connector Type is Jam Nut Receptacle and the Contact Type is Crimp.
MIL-DTL-38999 Series Ⅲ provides technical support and services, including but not limited to:
MIL-DTL-38999 Series Ⅲ Packaging and Shipping:
Packaging and shipping for MIL-DTL-38999 Series Ⅲ products should comply with MIL-STD-2073-1C standards. Specifically, the products should be packaged and shipped in a manner that will protect the product from dust, moisture, and vibration during transit.
The packaging should be suitable for transportation by land, air, and sea, and it should be marked with the appropriate shipping marks. It should also include labels indicating the quantity and type of product being shipped.
The shipping container should be secured to prevent movement and protection from the environment. The use of cushioning material and dunnage is recommended to protect the product from damage.
